23.2 Turning on the Device
To turn on the M2Smart

"On/Off" Button
The status LED is lit green as soon as the M2Smart
operating system or the normal working environment appears on the display.
®

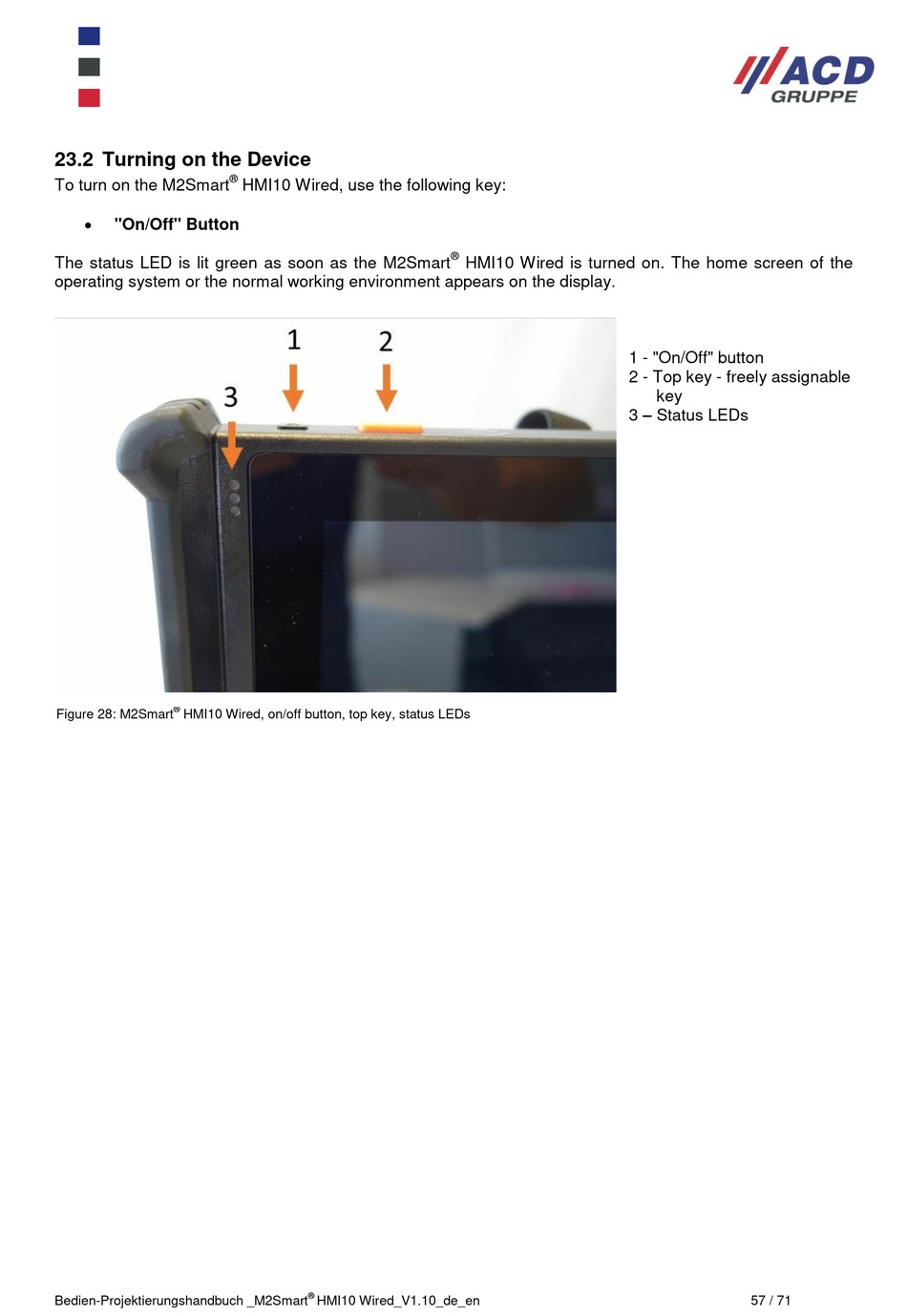

Figure 28: M2Smart HMI10 Wired, on/off button, top key, status LEDs
Bedien-Projektierungshandbuch _M2Smart
®
HMI10 Wired, use the following key:
®
HMI10 Wired_V1.10_de_en
®
HMI10 Wired is turned on. The home screen of the
1 - "On/Off" button
2 - Top key - freely assignable
key
3 – Status LEDs
