23 Commissioning of the M2Smart
During commissioning, please ensure that the power supply unit used complies with the requirements in the
technical data for the device and has been wired correctly.
If the device is supplied with voltage, the Charge LED lights up green.
The power supply unit must be short-circuit proof and capable of supplying at least 15 W.
®
The M2Smart HMI10 Wired can be supplied with either 12 V or 24 V DC.
The power supply unit is not included in the scope of delivery.
When disconnecting the device from the mains, the device should be switched off beforehand and the
voltage should be properly disconnected accordingly via a disconnecting device provided for this purpose
(main switch, ...)!
23.1 Keys
The following keys are available on the M2Smart
Type
Layout

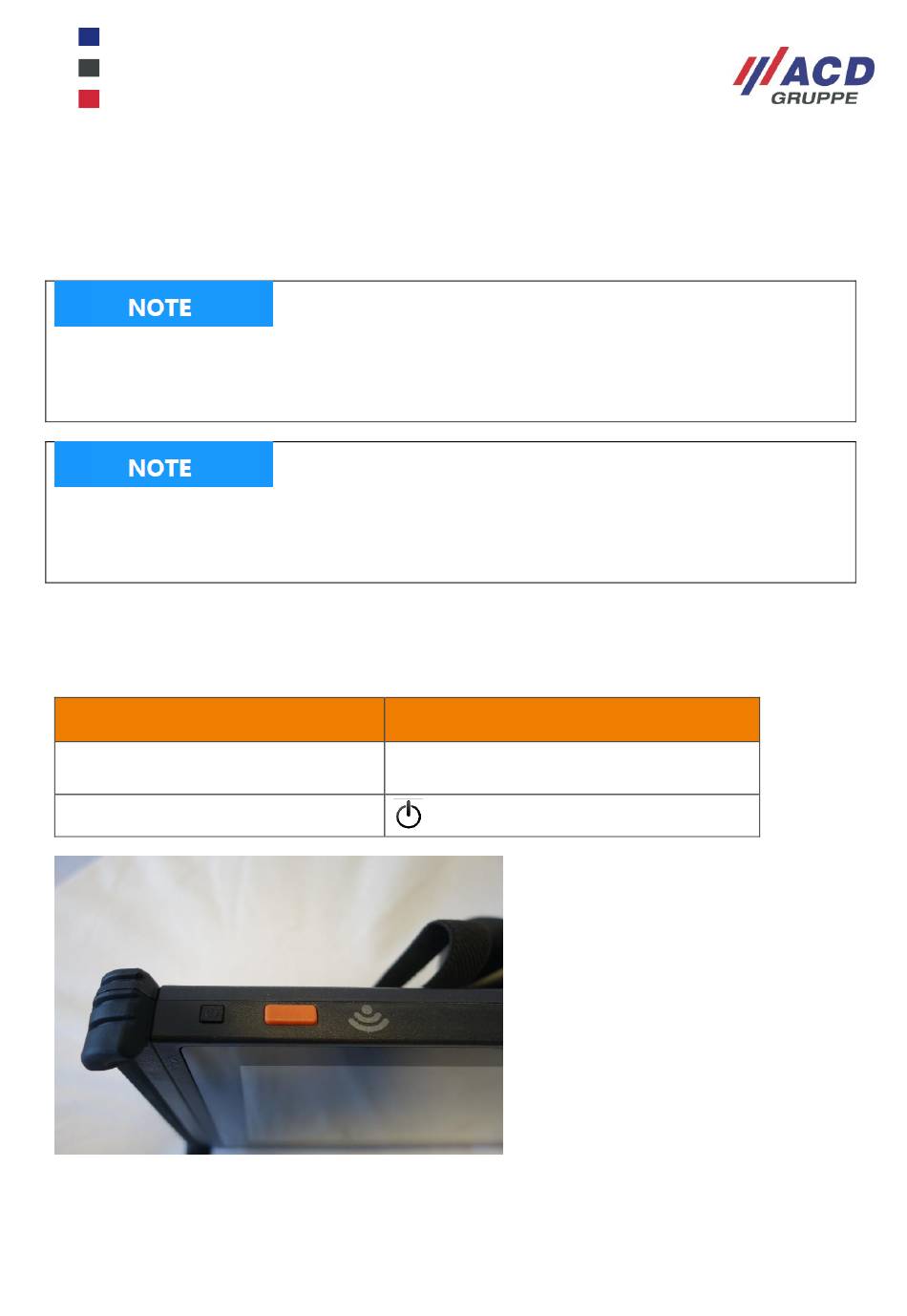

Figure 27: Key description
Bedien-Projektierungshandbuch _M2Smart
®
HMI10 Wired
®
HMI10 Wired.
Keyboard
On/Off button (black), top key (orange)
®
