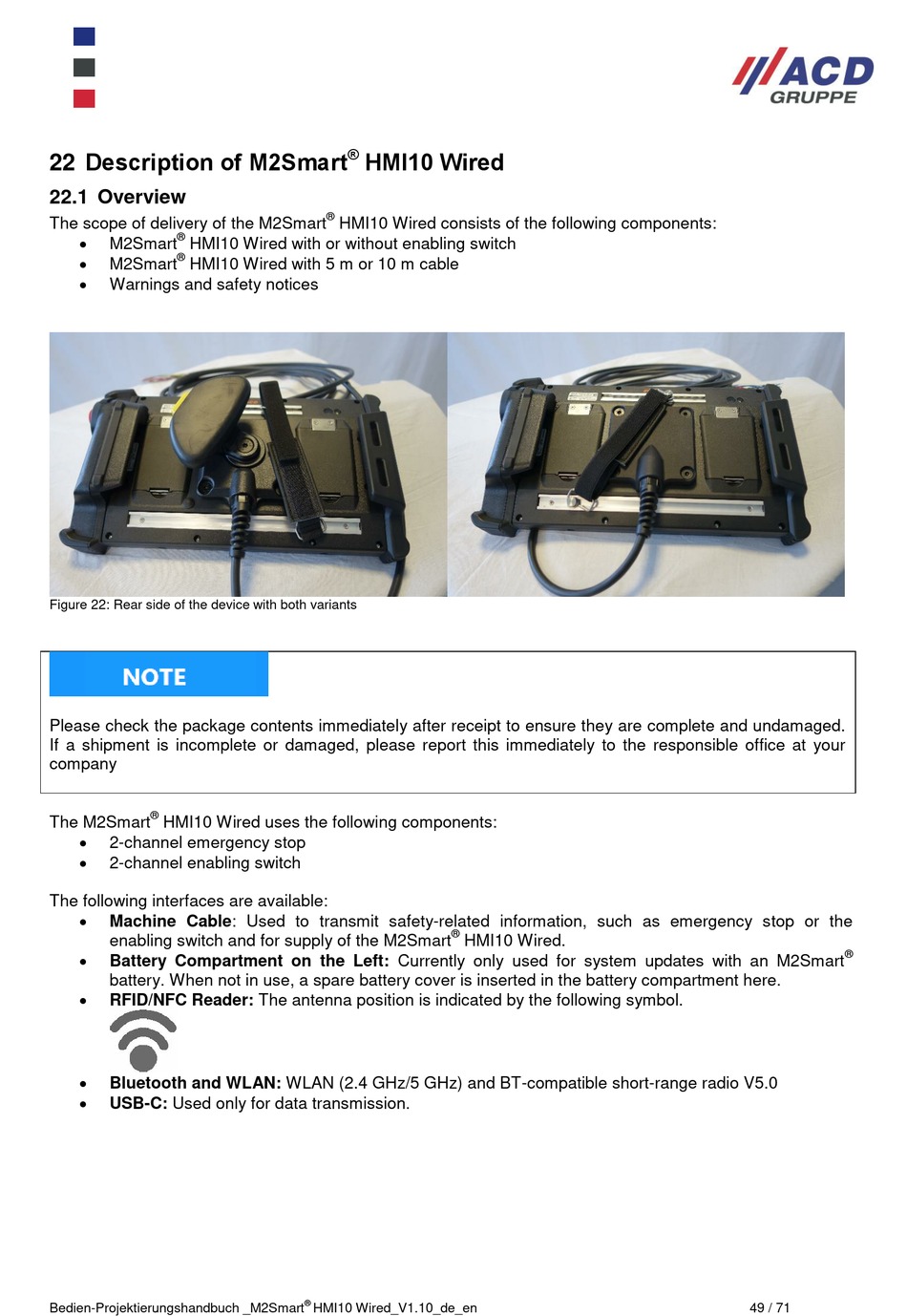

22 Description of M2Smart
22.1 Overview
The scope of delivery of the M2Smart
®

M2Smart HMI10 Wired with or without enabling switch
®

M2Smart HMI10 Wired with 5 m or 10 m cable

Warnings and safety notices
Figure 22: Rear side of the device with both variants
Please check the package contents immediately after receipt to ensure they are complete and undamaged.
If a shipment is incomplete or damaged, please report this immediately to the responsible office at your
company
®
The M2Smart HMI10 Wired uses the following components:

2-channel emergency stop

2-channel enabling switch
The following interfaces are available:

Machine Cable: Used to transmit safety-related information, such as emergency stop or the
enabling switch and for supply of the M2Smart

Battery Compartment on the Left: Currently only used for system updates with an M2Smart
battery. When not in use, a spare battery cover is inserted in the battery compartment here.

RFID/NFC Reader: The antenna position is indicated by the following symbol.

Bluetooth and WLAN: WLAN (2.4 GHz/5 GHz) and BT-compatible short-range radio V5.0

USB-C: Used only for data transmission.
Bedien-Projektierungshandbuch _M2Smart
®
HMI10 Wired
®
HMI10 Wired consists of the following components:
®
HMI10 Wired.
®
