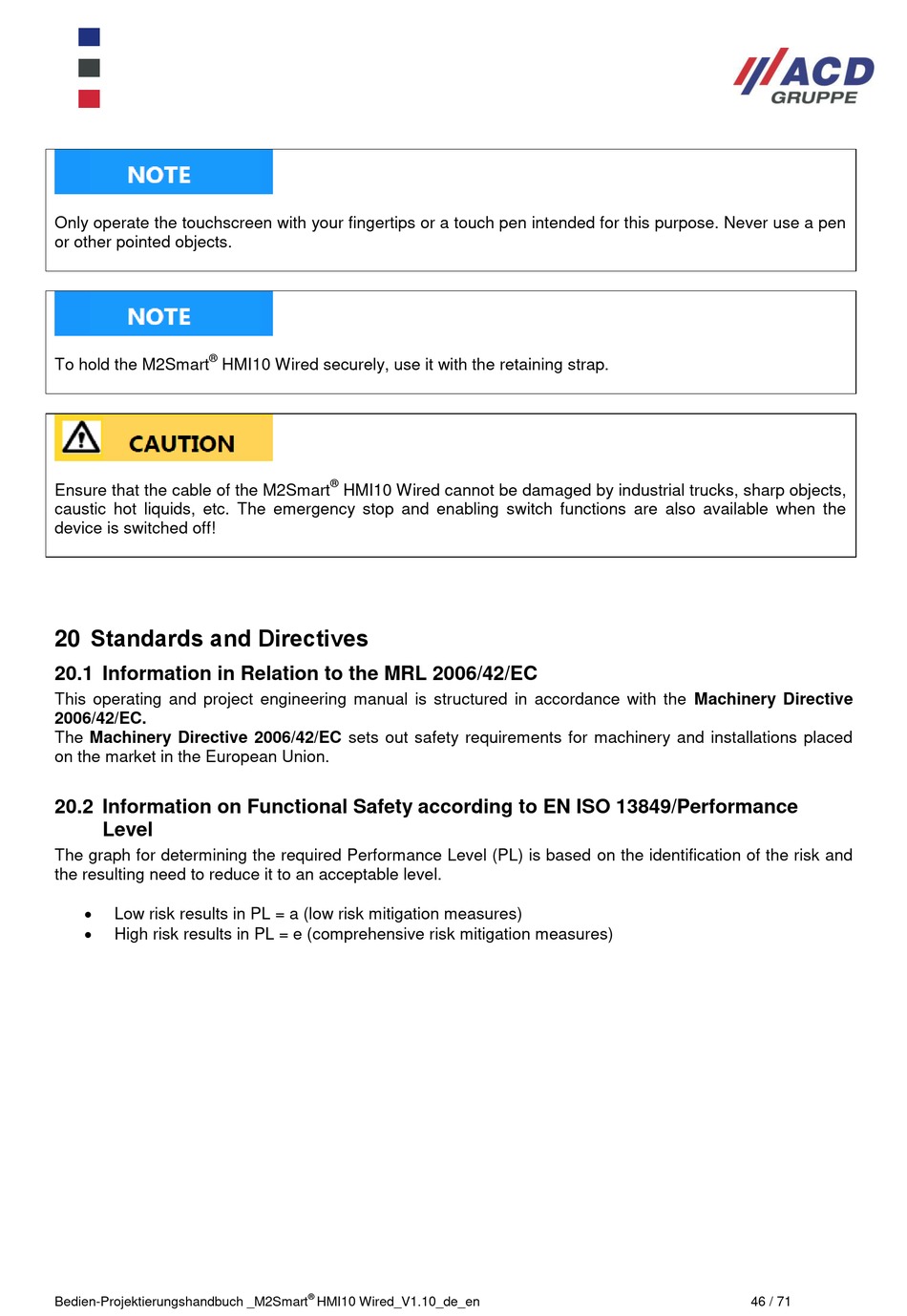

ACD GRUPPE M2Smart HMI10 Wired Projektierungshandbuch Seite 46

Only operate the touchscreen with your fingertips or a touch pen intended for this purpose. Never use a pen
or other pointed objects.
®
To hold the M2Smart HMI10 Wired securely, use it with the retaining strap.
Ensure that the cable of the M2Smart
caustic hot liquids, etc. The emergency stop and enabling switch functions are also available when the
device is switched off!
20 Standards and Directives
20.1 Information in Relation to the MRL 2006/42/EC
This operating and project engineering manual is structured in accordance with the Machinery Directive
2006/42/EC.
The Machinery Directive 2006/42/EC sets out safety requirements for machinery and installations placed
on the market in the European Union.
20.2 Information on Functional Safety according to EN ISO 13849/Performance
Level
The graph for determining the required Performance Level (PL) is based on the identification of the risk and
the resulting need to reduce it to an acceptable level.

Low risk results in PL = a (low risk mitigation measures)

High risk results in PL = e (comprehensive risk mitigation measures)
