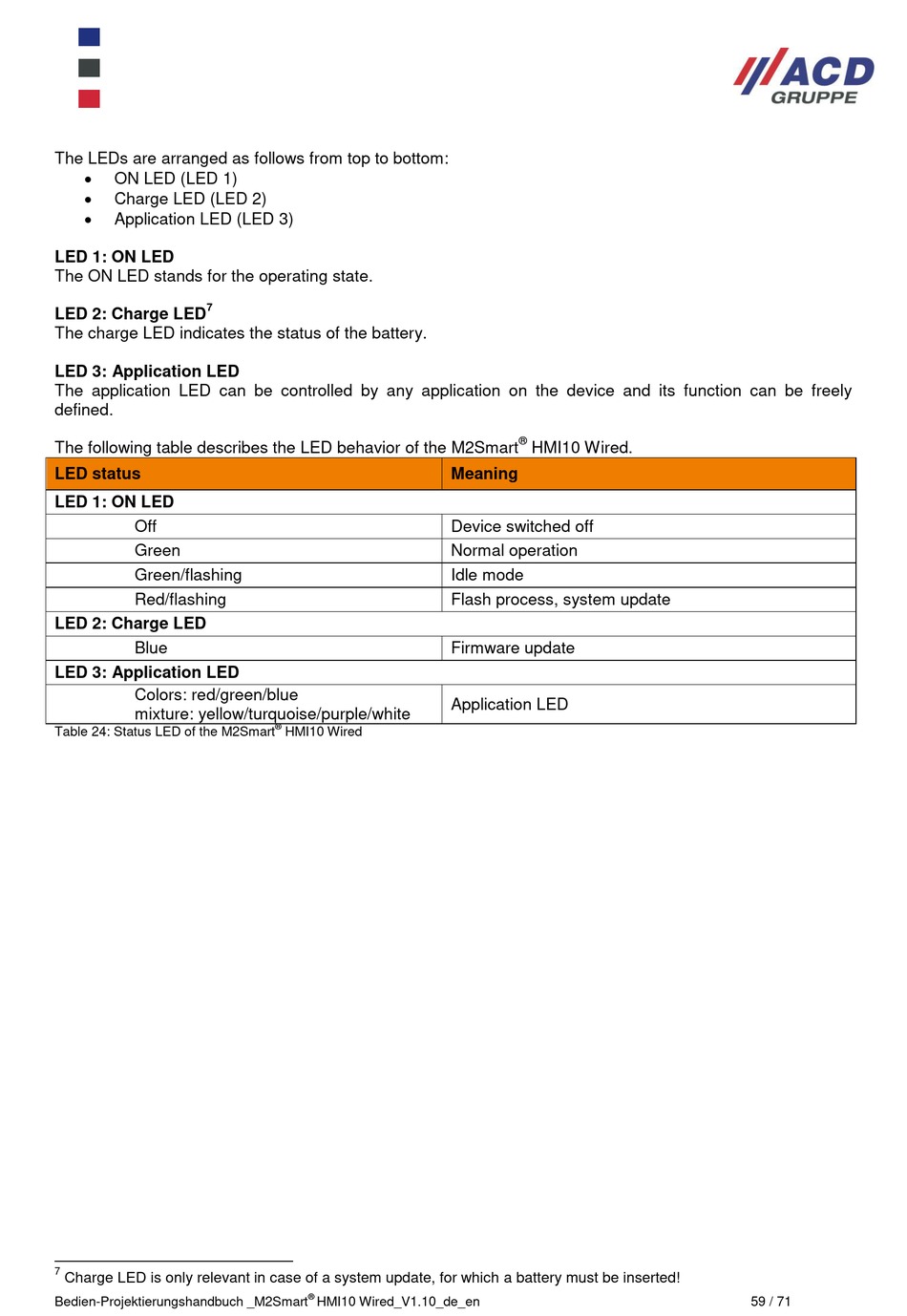

The LEDs are arranged as follows from top to bottom:

ON LED (LED 1)

Charge LED (LED 2)

Application LED (LED 3)
LED 1: ON LED
The ON LED stands for the operating state.
7
LED 2: Charge LED
The charge LED indicates the status of the battery.
LED 3: Application LED
The application LED can be controlled by any application on the device and its function can be freely
defined.
The following table describes the LED behavior of the M2Smart
LED status
LED 1: ON LED
Off
Green
Green/flashing
Red/flashing
LED 2: Charge LED
Blue
LED 3: Application LED
Colors: red/green/blue
mixture: yellow/turquoise/purple/white
Table 24: Status LED of the M2Smart
7
Charge LED is only relevant in case of a system update, for which a battery must be inserted!
