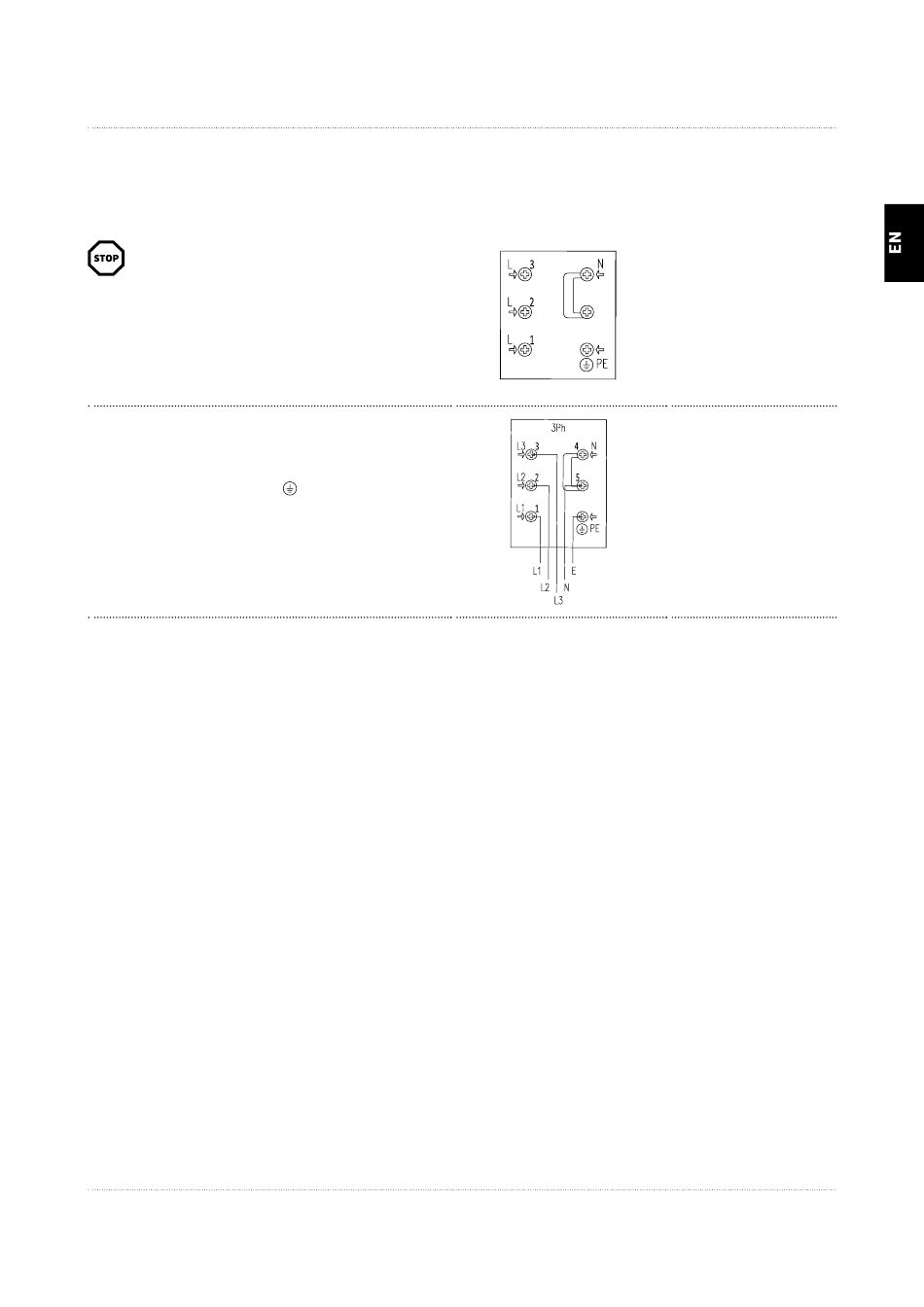

Circuit diagramm
Warning!
Risk of electric shock!
Note the following:
• The voltage of the heating elements is 230V.
• For each connection method, the grounding
wire must be connected to the PE terminal.
220–240V AC, three-phase connection:
Jumpers connecting the terminals 4-5,
Phase sequence according to 1,2 and 3.
Grounding wire of the hob on .
L1, L2, L3 = Phase, live wire
N = neutral
PE = Grounding
Installation
Recommended
connection method
H05VV-F
5 G 2,5mm²
