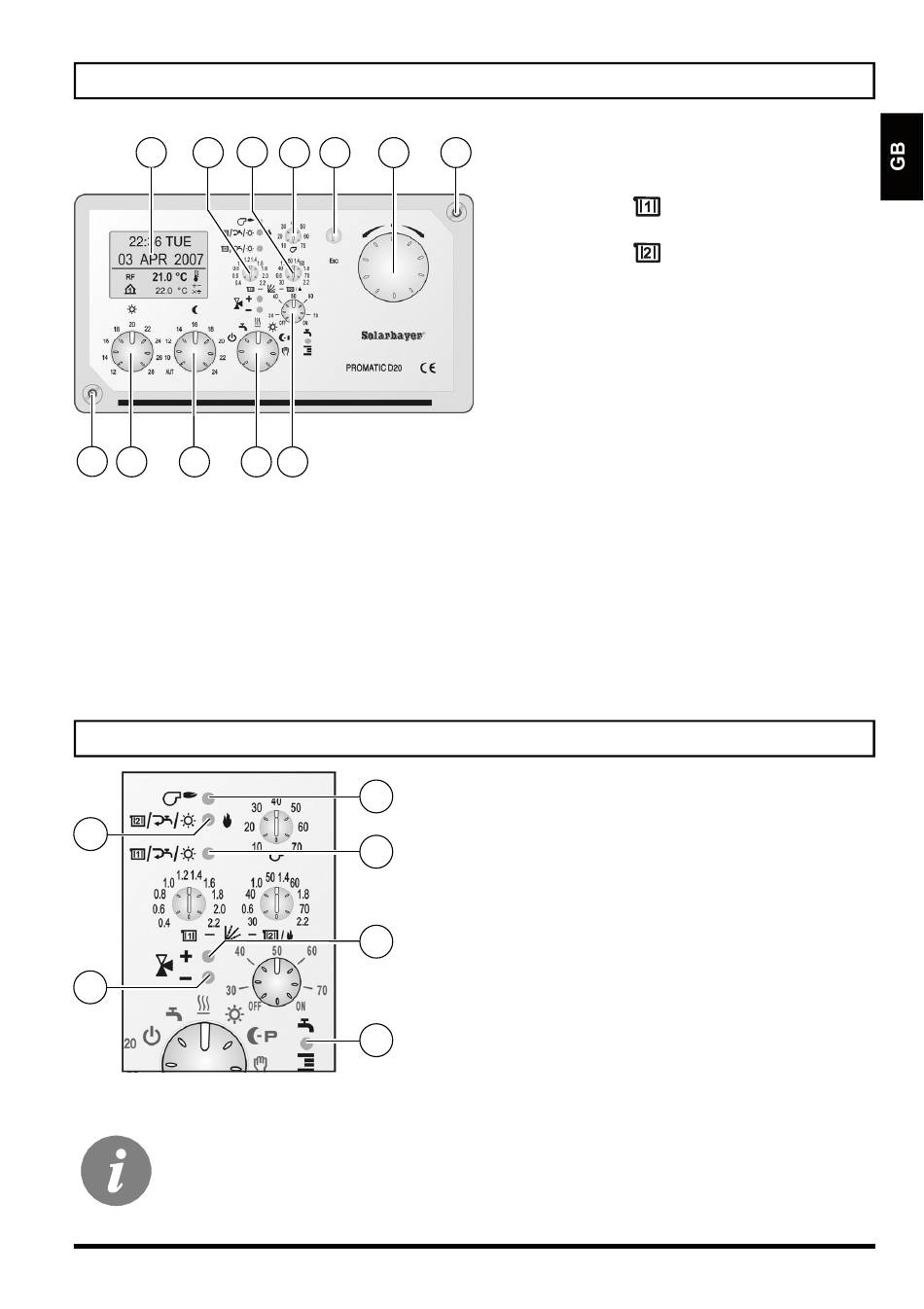

D20 FRONT PANEL
2 3 4
10 11
1 8 9
D20 INDICATORS OF OPERATION
2
5
If signal lamps 1, 2, 3, and 6 are flashing, it means, that a delay time to
switch off the indicated device is active.
5 6 7 1
1
1 - burner
- heat pump
2 - circulation pump of the direct heating circuit
3
UWP2
- circulation pump for d. h. w. circulation BCP
- circulation pump for sun collectors KTP
- boiler switching
4
3 - circulation pump of the mixing heating circuit
UWP
- circulation pump for d. h. w. circulation BCP
- circulation pump for sun collectors KTP
6
4 - opening of the mixing valve (M+)
5 - closing of the mixing valve (M-)
6 - circulation pump for d. h. w. warming BLP
9
1 - fastening screws
2 - LCD display
3 - setting the steepness of the heating
curve (MC* )
4 - setting the steepness of the heating
curve (DC* )
5 - setting the minimum temperature of
liquid fuel boiler
6 - info / Esc key
7 - navigation button
8 - setting of required day temperature
9 - setting of required night temperature
10 - switch for selecting the operation
mode
11 - setting of d. h. w. temperature
**MC - mixing heating circuit
**DC - direct heating circuit
User manual
