GRAPHIC LCD DISPLAY

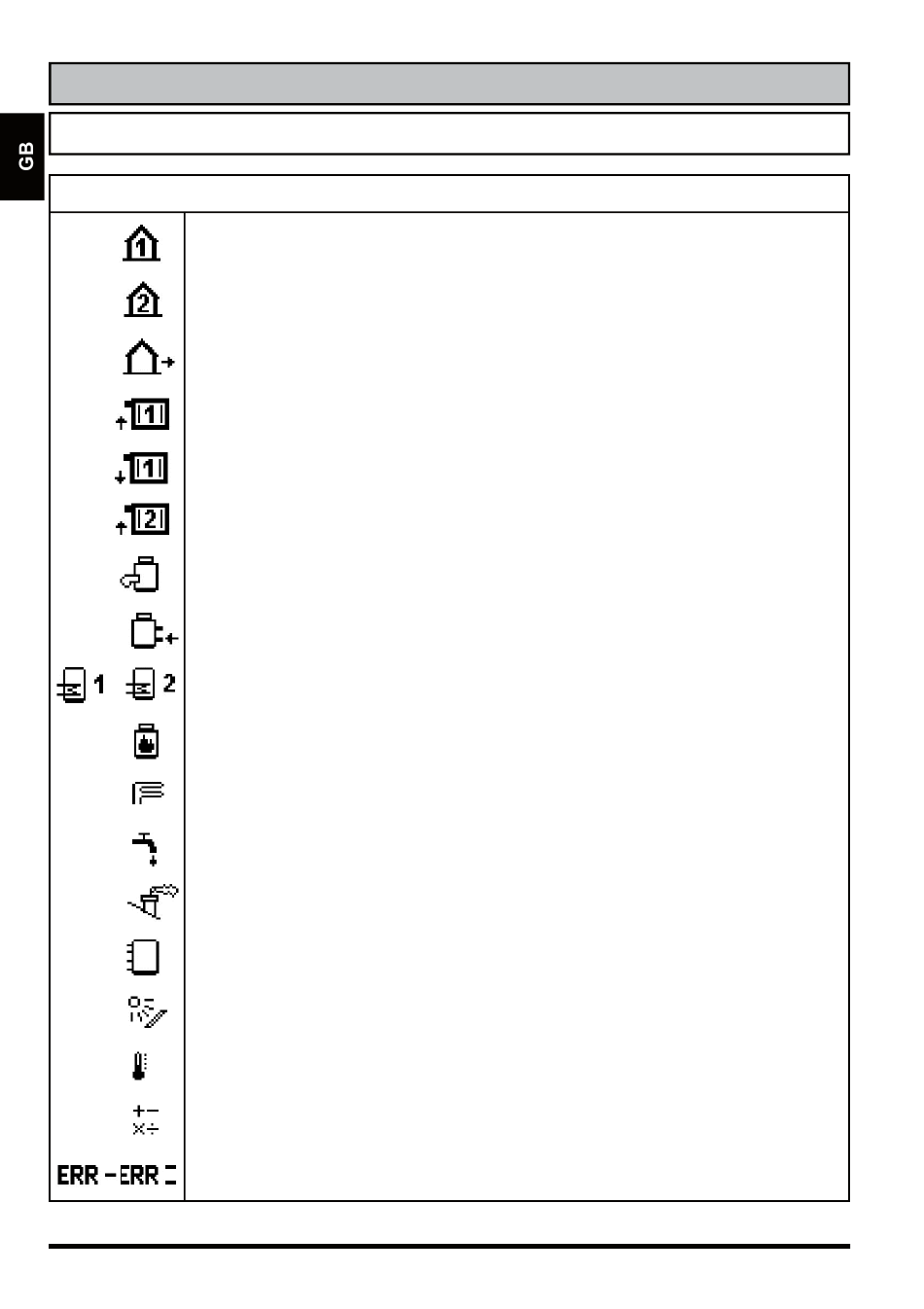

DESCRIPTION OF SYMBOLS ON DISPLAY
Symbols for temperature display:
Indoor (room) temperature for MC - mixing heating circuit (RF).
Indoor (room) temperature for DC - direct heating circuit (RF).
Outdoor temperature (AF).
Mixing circuit stand-pipe temperature
Mixing circuit return-pipe temperature
Direct circuit stand-pipe temperature.
Liquid fuel boiler temperature (KF).
Boiler return-pipe temperature return
D. h. w. temperature (BF1/BF2).
Solid fuel boiler temperature (KF2).
Floor temperature (EF).
D. h. w. circulation pipe temperature (BF3).
Exhaust gas temperature (AGF).
Heat accumulator temperature (SF).
Sun collectors temperature (KTF).
Measured temperature.
Calculated or required temperature.
Sensor error (short circuit, open contact).
User manual
(VF).
(RLF).
(RLKF).
