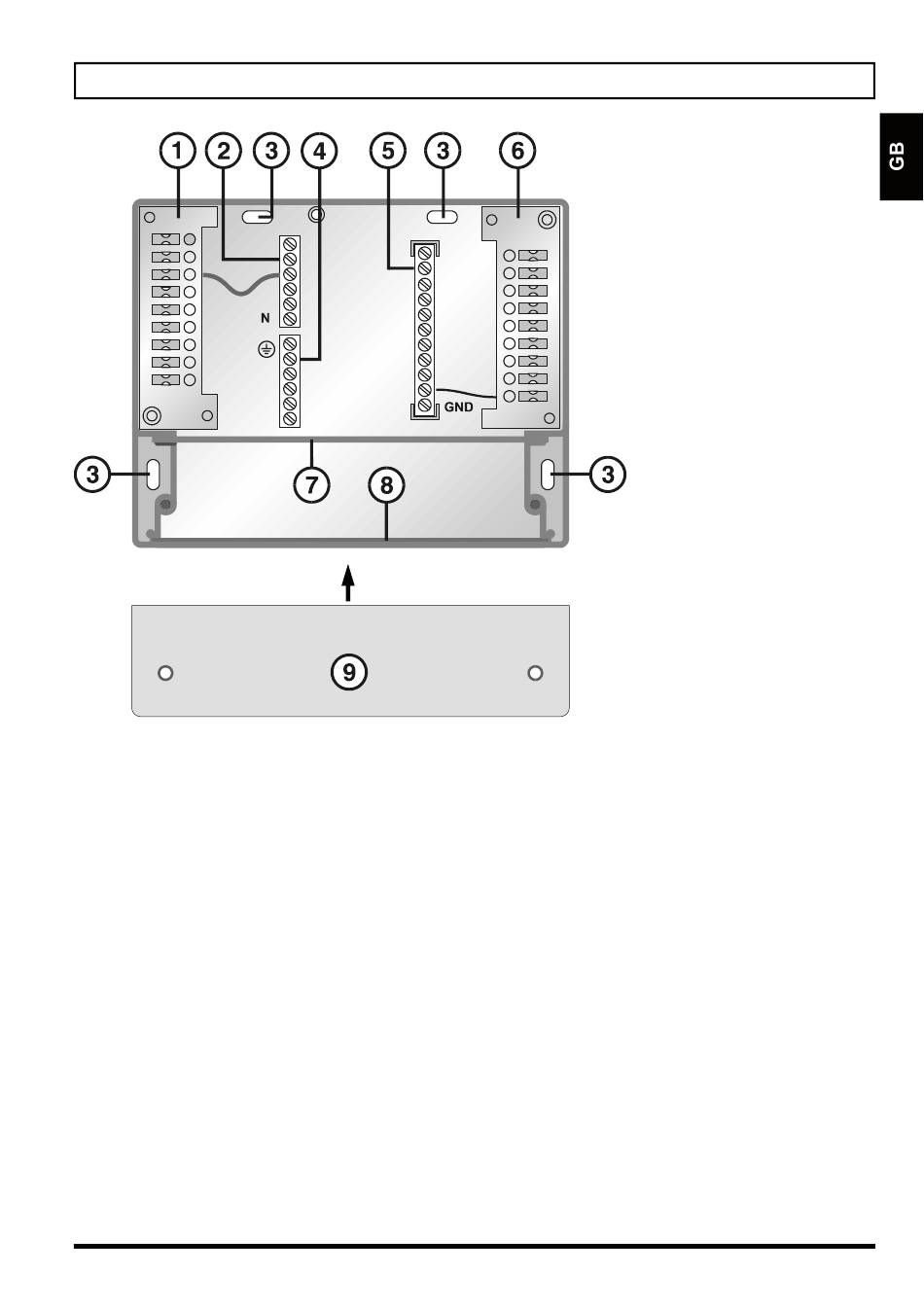

INSTALLING INTO HOUSING H1
This is the usual way to install the controller onto the wall or boiler panel. First remove the
cable inlet cover (9), which is fixed by two screws. Fix the H1 housing to the wall with
screws trough the fixing screw openings (3). Now connect the wires. At the end, screw
back the cable inlet cover (9), install the controller module and fix it with the module
screws.
59
1 - connector A
2 - connecting bar - N
3 - fixing screw opening
4 - connecting bar
protective earth
5 - connecting bar - GND
6 - connector C
7 - inner plate
8 - cable inlet plate
9 - cable inlet cover
Installation manual
