INSTALLING INTO HOUSING H2
If you have a SELTRON boiler controller; type HK10 or HKT10 you can also install the
PROMATIC D10, D20 controller into this case, in the right socket. In case, the H2 housing
doesn't have installed the A (4) and C connectors (6) and connecting bar GND (5), you
need to install them. For this you need an additional H2 installation kit or you can use
parts from the H1 housing. After that connect the wires, install the controller module and
fix it with the module screws.

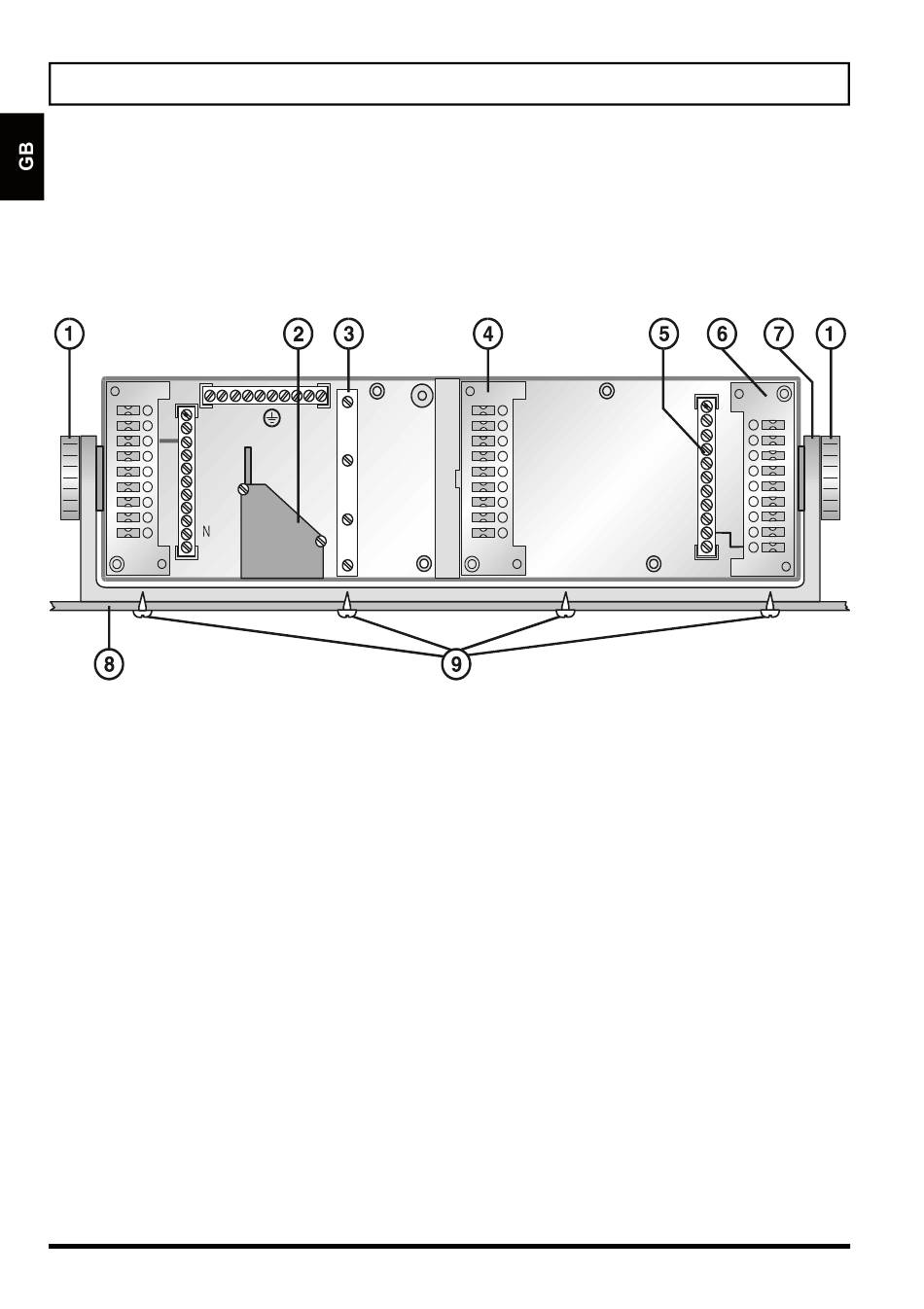

1 - buttons for housing inclination setting
2 - cable inlet
3 - holding clamp
4 - connector A
5 - connecting bar GND
Installation manual
6 - connector C
7 - case holder - console
8 - boiler panel
9 - screws for fixing the console to the boiler
case
