a
6 - 5

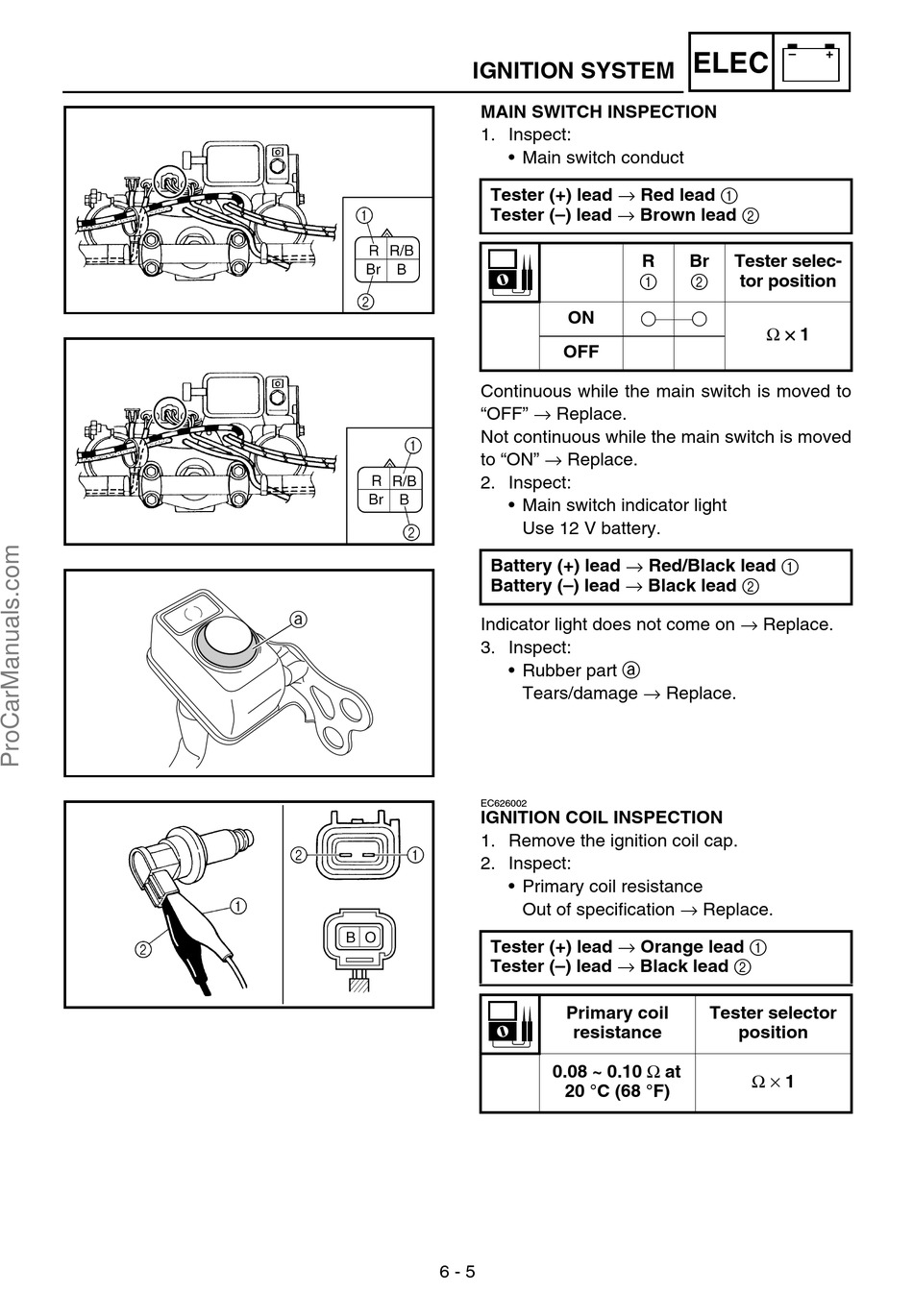

IGNITION SYSTEM
MAIN SWITCH INSPECTION
1. Inspect:
• Main switch conduct
Tester (+) lead → Red lead 1
Tester (–) lead → Brown lead 2
R
1
ON
OFF
Continuous while the main switch is moved to
"OFF" → Replace.
Not continuous while the main switch is moved
to "ON" → Replace.
2. Inspect:
• Main switch indicator light
Use 12 V battery.
Battery (+) lead → Red/Black lead 1
Battery (–) lead → Black lead 2
Indicator light does not come on → Replace.
3. Inspect:
• Rubber part a
Tears/damage → Replace.
EC626002
IGNITION COIL INSPECTION
1. Remove the ignition coil cap.
2. Inspect:
• Primary coil resistance
Out of specification → Replace.
Tester (+) lead → Orange lead 1
Tester (–) lead → Black lead 2
Primary coil
resistance
0.08 ~ 0.10 Ω at
20 °C (68 °F)
–
+
ELEC
Br
Tester selec-
2
tor position
Ω × × × × 1
Tester selector
position
Ω × 1
