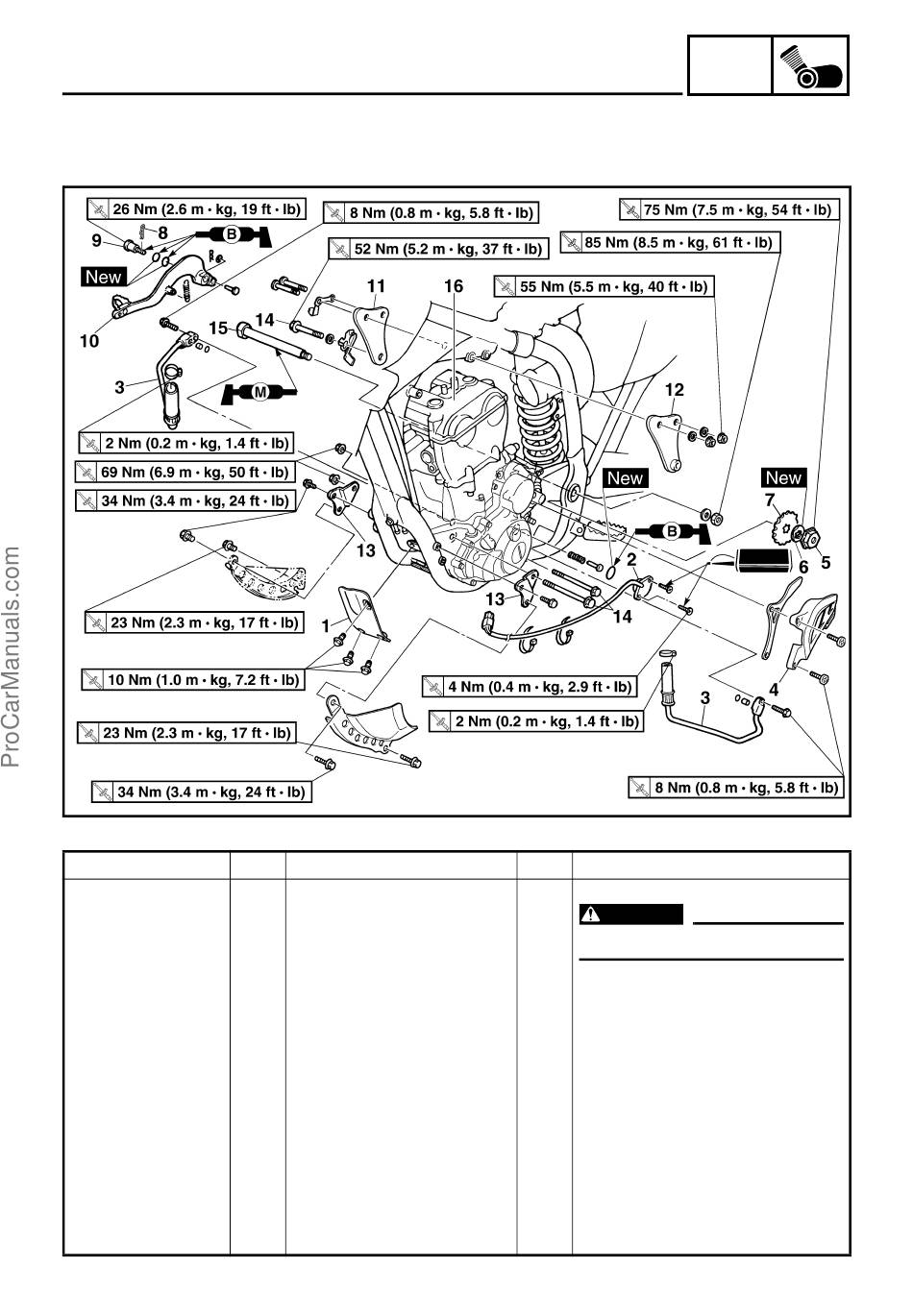

ENGINE REMOVAL
Extent of removal
Preparation for removal
Order
Part name
ENGINE REMOVAL
Hold the machine by placing the
suitable stand under the frame.
Drain the engine oil
Seat and fuel tank
Carburetor
Exhaust pipe and silencer
Air cut-off valve assembly
Clutch cable and guide
Radiator
Shift pedal
Cylinder head breather hose and
oil tank breather hose
ENGINE REMOVAL
Q'ty
WARNING
Support the machine securely so there is no
danger of it falling over.
Refer to "ENGINE OIL REPLACEMENT"
section in the CHAPTER 3.
Refer to "SEAT, FUEL TANK AND SIDE
COVERS" section.
Refer to "CARBURETOR" section.
Refer to "EXHAUST PIPE AND
SILENCER" section.
Refer to "AIR INDUCTION SYSTEM"
section.
Disconnect at the engine side.
Refer to "RADIATOR" section.
Refer to "AC MAGNETO AND
STARTER CLUTCH" section.
Refer to "CAMSHAFTS" section.
4 - 86
ENG
Remarks
