en 38 | TSL 230 | Operation
3. As soon as the desired height is reached, let th
pedal go and lower the wheel onto the rim-chuck
plate.
!
Make sure that the moevable lift is in its inital posi-
tion before turning the rim-chuck plate
i
Proceed carefully to avoid the rim from being
scratched.

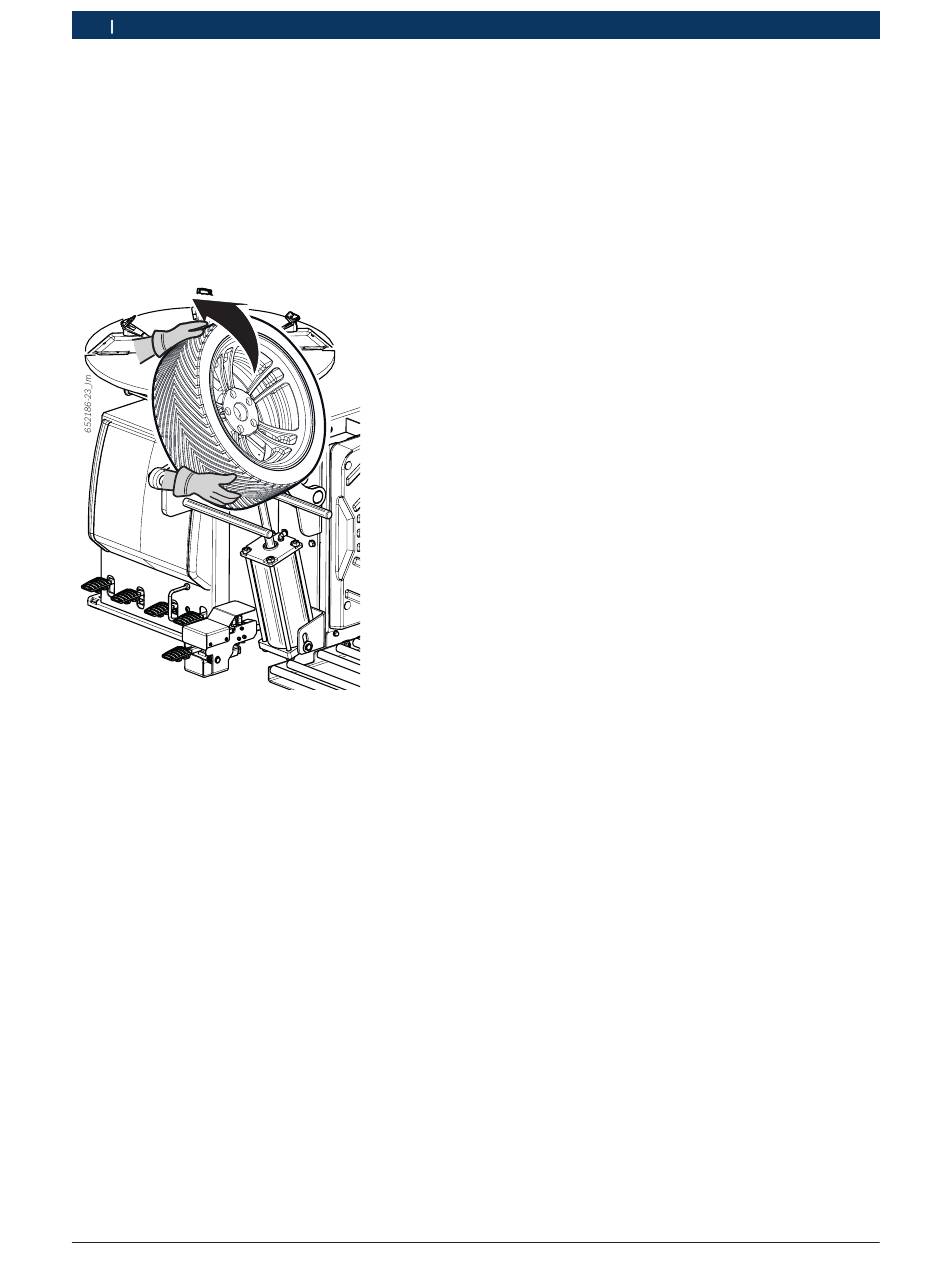

Fig. 28: Positioning the wheel on the rim-chuck plate
4. Press the drive pedal upwards to lower the move-
able lift.
!
The instructions given for loading the tire must also
be observed when takeing the tire off the tire chang-
ing machine.
!
Heed an appropriate safe distance when lifting and
lowering with or without load on the lifting device.
i
The lifting device is equipped with a safety mecha-
nism that stops the lowering process of the move-
able lift in order to avoid injuries or material damage
within the hazard area.
i
In order to put the lifting device back into normal
operation, the hazard area must be cleaned and the
moveable platform must be moved upwards.
|
