5. If the moveable lift is in idle position, carefully oper-
ate the flow meter on the drive pedal as shown in
the illustration.

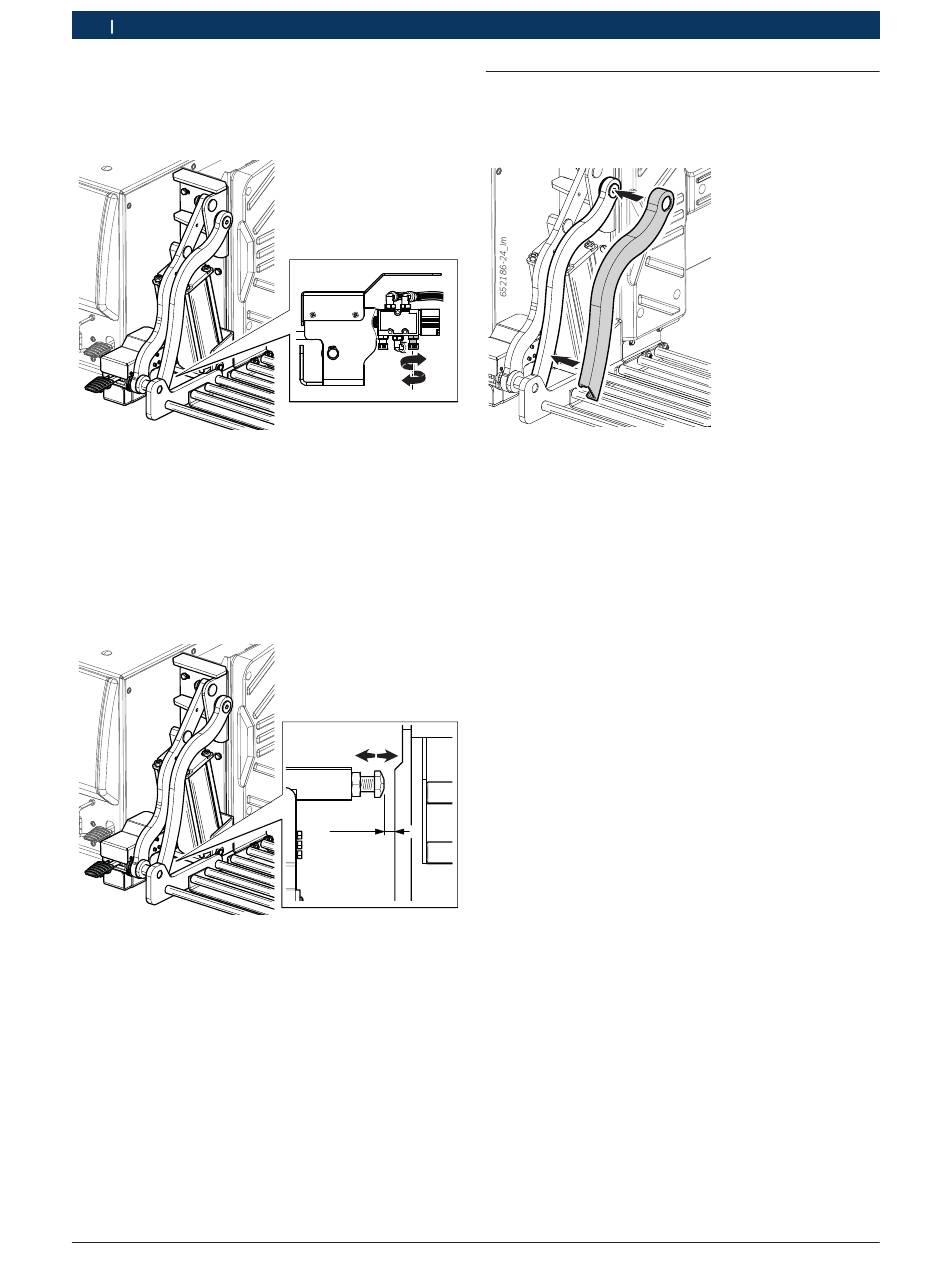

Fig. 23: Setting the lifting speed
6. Then activate the lowering movement of the lifting
device and make sure that the lifting time is 2,5 sec.
7. If necessary, repeat the procedure.
4.5.3 Setting the block screw
1. Move moveable lift into idle position.
2. Adjust screw as shown in the following illustration.
Fig. 24: Setting the block screw
|
1 695 105 604 2016-01-12
4.6
i
Use the plastic in order to avoid damages to the
aluminum rims.
652186-31_BM
Fig. 25:
652186-34_BM
5 mm
Mounting the protective parts
Mounting the protective parts
