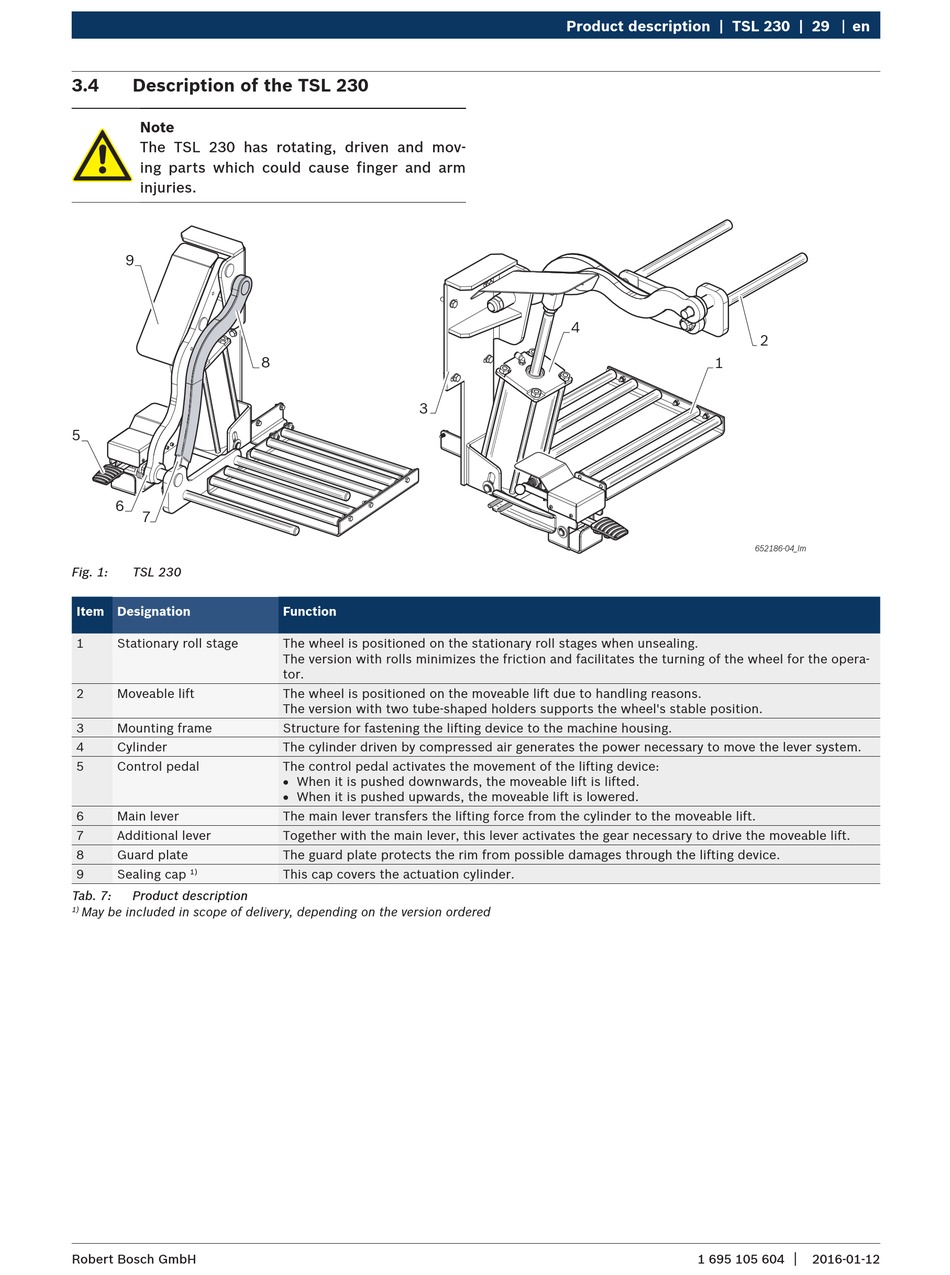

3.4 Description of the TSL 230
Note
The TSL 230 has rotating, driven and mov-
ing parts which could cause finger and arm
injuries.
9
5
6
7
Fig. 1: TSL 230
Item Designation
1 Stationary roll stage
2 Moveable lift
3 Mounting frame
4 Cylinder
5 Control pedal
6 Main lever
7 Additional lever
8 Guard plate
9 Sealing cap
1)
Tab. 7: Product description
May be included in scope of delivery, depending on the version ordered
1)
Robert Bosch GmbH
8
3
Function
The wheel is positioned on the stationary roll stages when unsealing.
The version with rolls minimizes the friction and facilitates the turning of the wheel for the opera-
tor.
The wheel is positioned on the moveable lift due to handling reasons.
The version with two tube-shaped holders supports the wheel's stable position.
Structure for fastening the lifting device to the machine housing.
The cylinder driven by compressed air generates the power necessary to move the lever system.
The control pedal activates the movement of the lifting device:
R When it is pushed downwards, the moveable lift is lifted.
R When it is pushed upwards, the moveable lift is lowered.
The main lever transfers the lifting force from the cylinder to the moveable lift.
Together with the main lever, this lever activates the gear necessary to drive the moveable lift.
The guard plate protects the rim from possible damages through the lifting device.
This cap covers the actuation cylinder.
