4.3 Compressed air port
1. Remove the side cover of the housing.
2. Disconnect grounding cable.
1
2

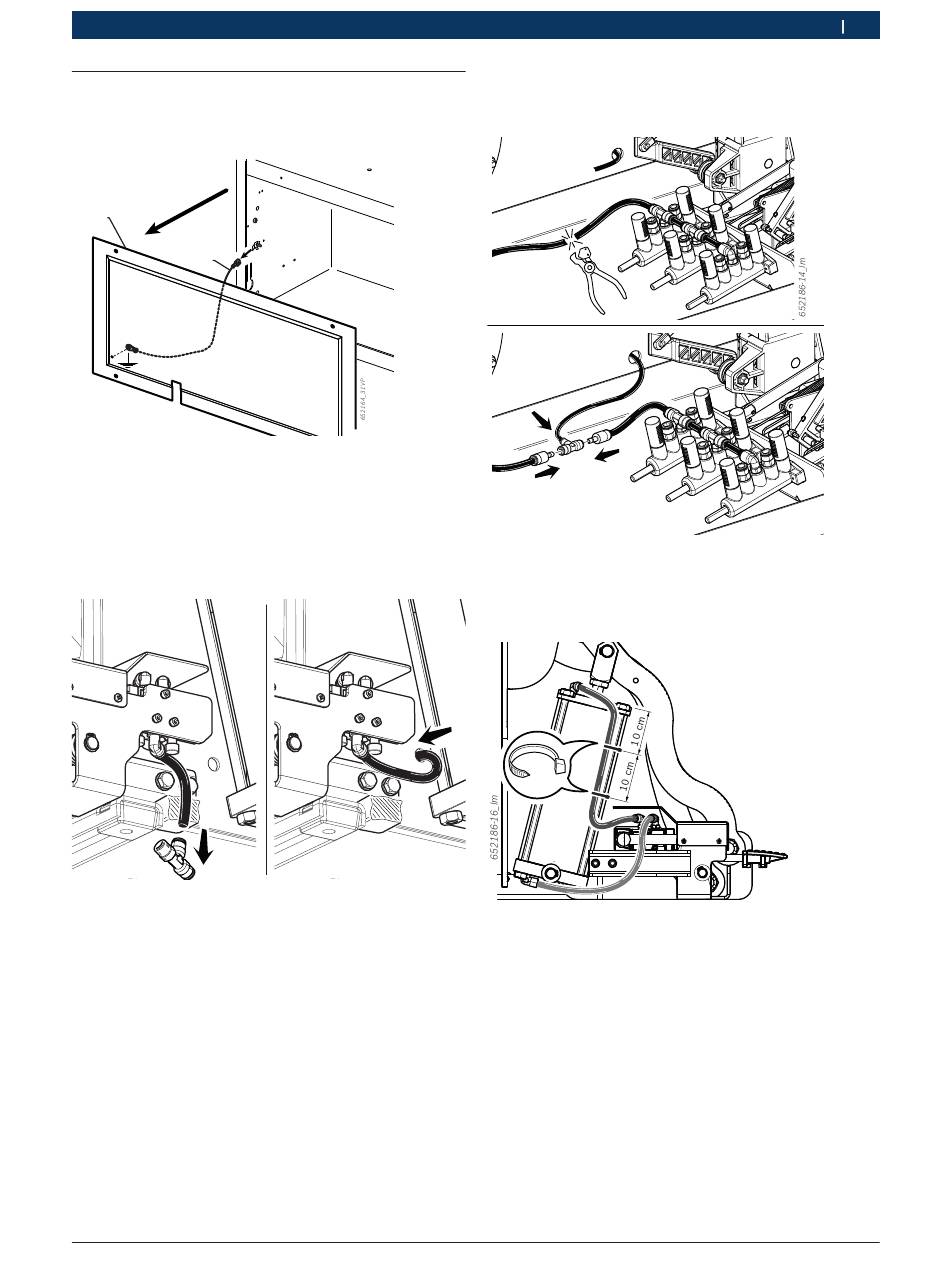

Fig. 12: Remove the side cover.
1 Side cover
2 Grounding cable
3. Disconnect the supply hose of the control pedal
from the port and guide through the bore hole in the
housing.
652186-13_Im
Fig. 13: Guiding the hose through the housing
Robert Bosch GmbH
Initial commissioning | TSL 230 | 33
4. Cut the pedal's supply hose and connect the hoses
as shown in the illustration.
Fig. 14: Compressed air port on the pedal
5. Remove the hoses from the cylinder and connect to
the pedal as shown in the illustration.
Fig. 15: Compressed air port of the cylinder
6. Connect the power supply and the compressed air
supply of the tire changing machine.
!
Activate the control pedal and make sure that the
lifting/lowering direction corresponds with the di-
rection indicated on the adhesive label on the pedal.
!
Alternatively make sure that the compressed air port
of the cylinder has been connected as described
above.
