Mild Steel - 45 A - Air - Hypertherm Powermax65 SYNC Bedienungsanleitung

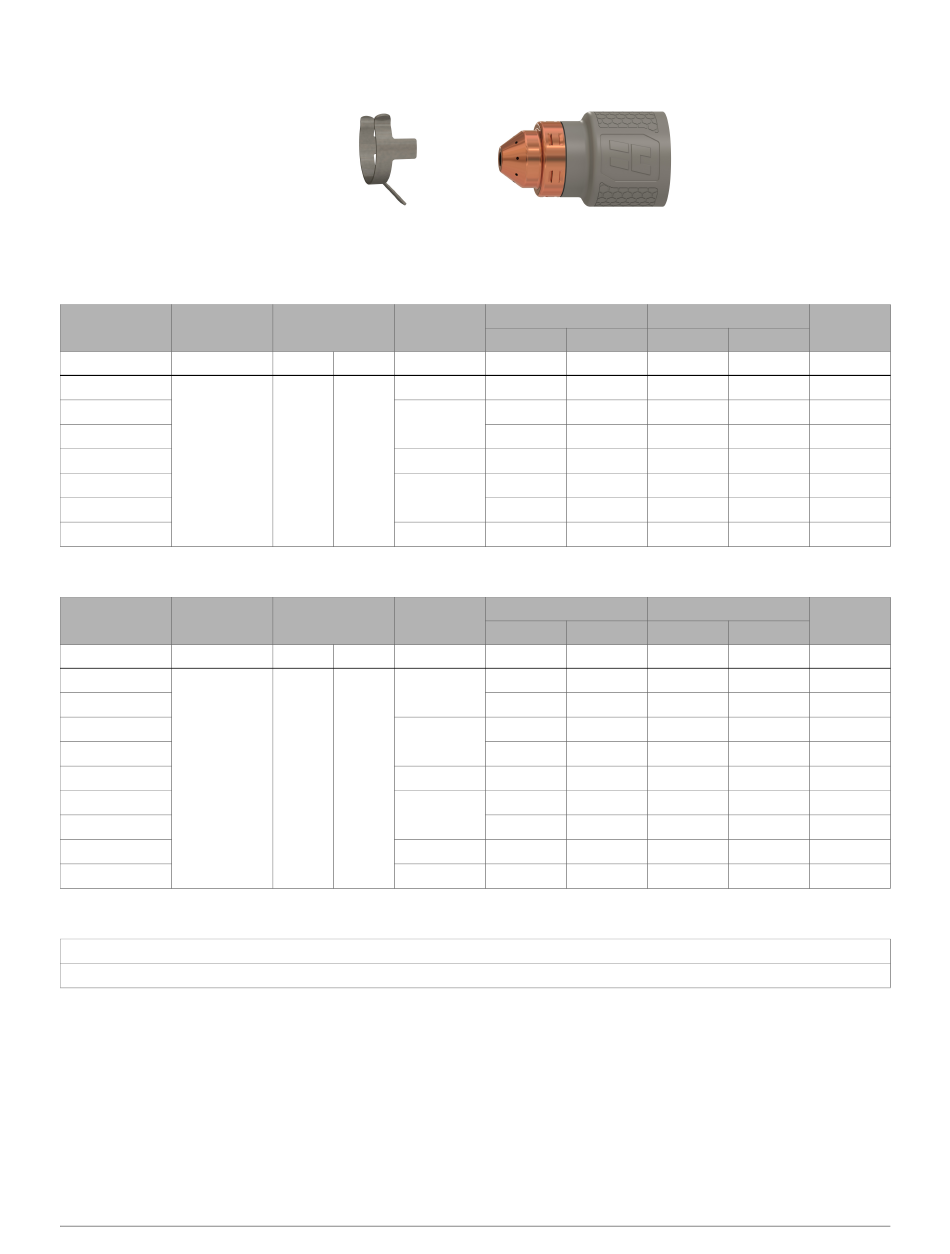

Cut Charts
Metric
Material Thickness Cut Height
mm mm
0.5
1
1.5
2 3.2
3
4
6
English
Material Thickness Cut Height
inches inches
26 GA
22 GA
18 GA
16 GA
14 GA 0.125
12 GA
10 GA
3/16
1/4
Gas flow rate – slpm / scfh
182 / 385
217 / 460
50
Mild Steel – 45 A – Air
428895
ohmic sensing ring
Initial Pierce Height Pierce Delay
mm % seconds
0.0
0.1
3.8 120 0.2
0.4
0.6
Initial Pierce Height Pierce Delay
inches % seconds
0.0
0.1
0.150 120 0.2
0.4
0.5
0.6
Hot (cutflow)
Cold (postflow)
Multilingual Revision 2
428925
Best Quality
Cut Speed Arc Voltage
mm/min volts
8890 137
8890 138
8890 138
6600 139
3630 141
2260 142
1240 141
Best Quality
Cut Speed Arc Voltage
in/min volts
350 137
350 137
350 138
350 138
278 139
173 140
115 141
68 142
46 141
810500MU Cut Charts Guide
Highest Production
Kerf Width
Cut Speed Arc Voltage
mm/min volts mm
12500 135 1.1
10670 138 1.4
10190 139 1.5
7620 140 1.7
4830 139 1.8
3400 138 1.9
2010 140 1.9
Highest Production
Kerf Width
Cut Speed Arc Voltage
in/min volts inches
501 135 0.044
445 137 0.049
408 138 0.057
398 139 0.061
318 140 0.065
219 140 0.071
162 139 0.073
107 138 0.074
74 141 0.075
Powermax65/85/105 SYNC
