EXPLOSION HAZARD – CUTTING WITH ALUMINUM NEAR WATER
Underwater cutting with fuel gases or aluminum can cause an explosion hazard.
Do NOT cut under water with fuel gases that contain hydrogen.

Do NOT cut aluminum alloys under water or on a water table, unless you can

prevent the accumulation of hydrogen gas.
Doing so can cause an explosion during cutting system operation. Refer to the Safety and
Compliance Manual (80669C) for more information.
EXPLOSION HAZARD – CUTTING WITH FLAMMABLE OR OXIDIZING GASES
Do not use flammable or oxidizing gases with Powermax systems. These gases can cause
explosive conditions during plasma cutting operations.
An example of an oxidizing gas is oxygen. Examples of flammable gases are acetylene,
propylene, methane, and pure hydrogen. Refer to the Safety and Compliance Manual
(80669C) for more information.
For more information
For information about integrating your Powermax

Powermax65/85/105 SYNC Mechanized Cutting Guide (810480).
For additional information about your system refer to the Powermax65/85/105 SYNC Operator Manual

(810470).

Download these documents at www.hypertherm.com/docs.
Powermax65/85/105 SYNC Cut Charts Guide 810500MU
WARNING
WARNING
system with a mechanized cutting setup, refer to the
®
Revision 2 English

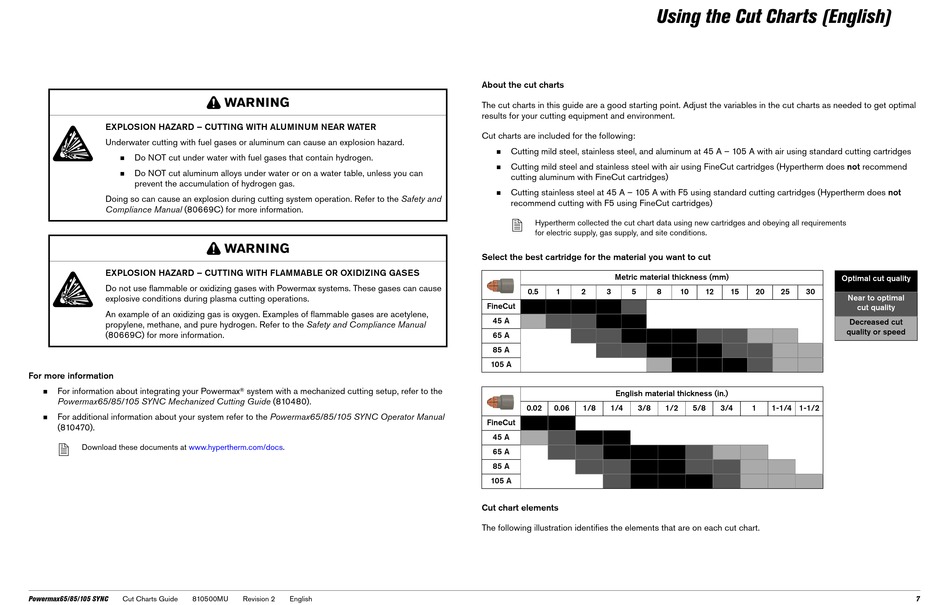

Using the Cut Charts (English)

About the cut charts
The cut charts in this guide are a good starting point. Adjust the variables in the cut charts as needed to get optimal
results for your cutting equipment and environment.
Cut charts are included for the following:
 Cutting mild steel, stainless steel, and aluminum at 45 A – 105 A with air using standard cutting cartridges
Cutting mild steel and stainless steel with air using FineCut cartridges (Hypertherm does not recommend

cutting aluminum with FineCut cartridges)
 Cutting stainless steel at 45 A – 105 A with F5 using standard cutting cartridges (Hypertherm does not
recommend cutting with F5 using FineCut cartridges)

Hypertherm collected the cut chart data using new cartridges and obeying all requirements
for electric supply, gas supply, and site conditions.
Select the best cartridge for the material you want to cut
Metric material thickness (mm)
0.5 1 2 3 5 8
FineCut
45 A
65 A
85 A
105 A
English material thickness (in.)
0.02 0.06 1/8 1/4 3/8
FineCut
45 A
65 A
85 A
105 A
Cut chart elements
The following illustration identifies the elements that are on each cut chart.
Optimal cut quality
10 12 15 20 25 30
1/2 5/8 3/4 1 1-1/4 1-1/2
Near to optimal
cut quality
Decreased cut
quality or speed
7
