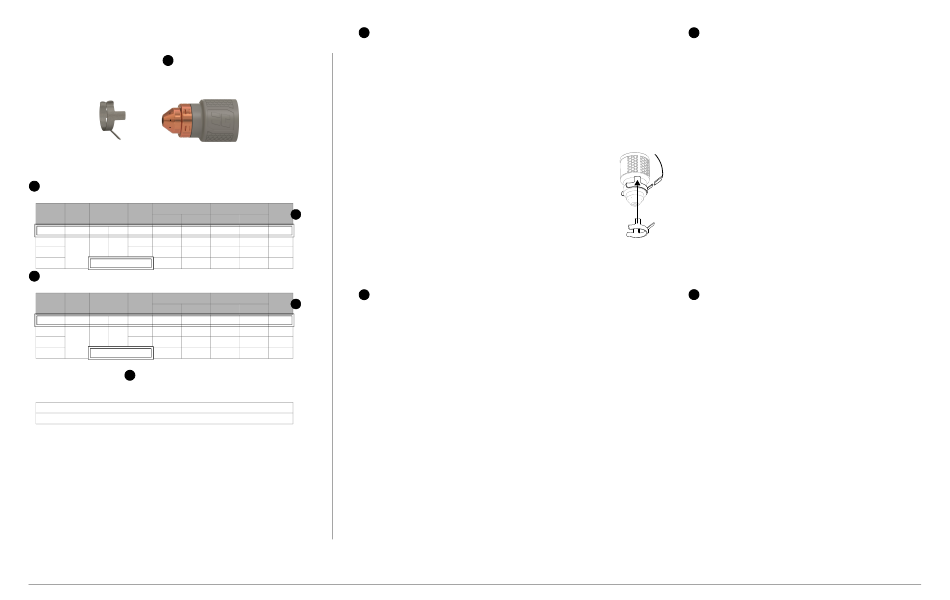

Using the Cut Charts (English)
Sample
1
Mild Steel – 105 A – Air
428895 ohmic 428936
sensing ring
2
Metric
Best Quality
Material Cut Initial Pierce
Thickness Height Pierce Height Delay
Cut Speed Arc Voltage Cut Speed Arc Voltage
mm mm mm % seconds mm/min volts
6 0.5 3960 143
6.4 200
20 3.2 1.0 790 153
40 Edge start 200 172
2
English
Best Quality
Material Cut Initial Pierce
Thickness Height Pierce Height Delay
Cut Speed Arc Voltage Cut Speed Arc Voltage
inches inches inches % seconds in/min volts
1/4 0.5 156 143
0.25 200
3/4 0.125 1.0 33 152
1-1/2 Edge start 9 170
4
Gas flow rate – slpm / scfh
236 / 500 Hot (cutflow)
311 / 660 Cold (postflow)
8
Type of metal:
1
• Mild Steel
• Stainless Steel
• Aluminum
Cut process:
• A = Amperage. The amperage applies to all the settings on that page.
• In FineCut charts, the amperage for each thickness is included in the cut chart.
This guide includes high-speed and low-speed charts. High-speed settings can
give better cut quality and less dross at some thicknesses, if the cutting table lets
you cut at those settings.
Type of gas:
• Air (or nitrogen)
• F5
Use an ohmic sensing ring to connect a mechanized cartridge
to a torch height control (THC) system. Install it on the cartridge
as shown. The 428895 kit includes 3 ohmic sensing rings
Highest Production
Kerf
3
(420580).
Width
mm/min volts mm
4880 143 2.2
940 152 2.8
250 170 5.1
Metric = Metric measurements
2
Highest Production
Kerf
3
English = English measurements
Width
in/min volts inches
Material Thickness = Thickness of the workpiece (metal plate being cut).
192 143 0.086
Cut Height = Distance between the tip of the cartridge and the workpiece during
40 151 0.108
10 168 0.183
Initial Pierce Height = Distance between the tip of the cartridge and the workpiece
Pierce Delay = Length of time the plasma arc remains stationary at the pierce height
Best Quality (Cut Speed and Arc Voltage*) = Settings that provide the starting
Highest Production (Cut Speed and Arc Voltage*) = Settings that increase cut
Kerf Width = Width of material removed by the cutting process. The kerf widths are
* For information on how to use arc voltage to control cut height, refer to the
Powermax65/85/105 SYNC Mechanized Cutting Guide (810480).
cutting.
when the torch is fired, prior to descending to the cut height.
while it cuts through the workpiece.
point for finding the best cut quality (best angle, least dross, best cut-surface
finish). Adjust the speed for your application and cutting system to get the
desired result.
speeds 20% – 30%. These speeds give an increased number of cut parts but
not necessarily the best possible cut quality.
for reference only. Hypertherm got them using the "Best Quality" settings.
Differences between installations and material composition can cause actual
results to vary from those shown in the tables.
Units of measurement:
3
• mm = millimeters
• % = percentage
• seconds
• mm/min = millimeters per minute
• volts
• inches
• in/min = inches per minute
• A = amperage (FineCut charts)
Edge start = Start the cut from the edge of the workpiece.
Each cut chart lists hot and cold gas flow rates.
4
• slpm = Standard liter per minute
• scfh = Standard cubic feet per hour
Hot (cutflow) = Plasma arc is on, and there is a steady flow of
gas while cutting.
Cold (postflow) = Plasma arc is off, and there is a steady flow
of gas for several seconds after the cut completes. This
flow rate also applies for gas test mode.
English Revision 2 810500MU Cut Charts Guide Powermax65/85/105 SYNC
