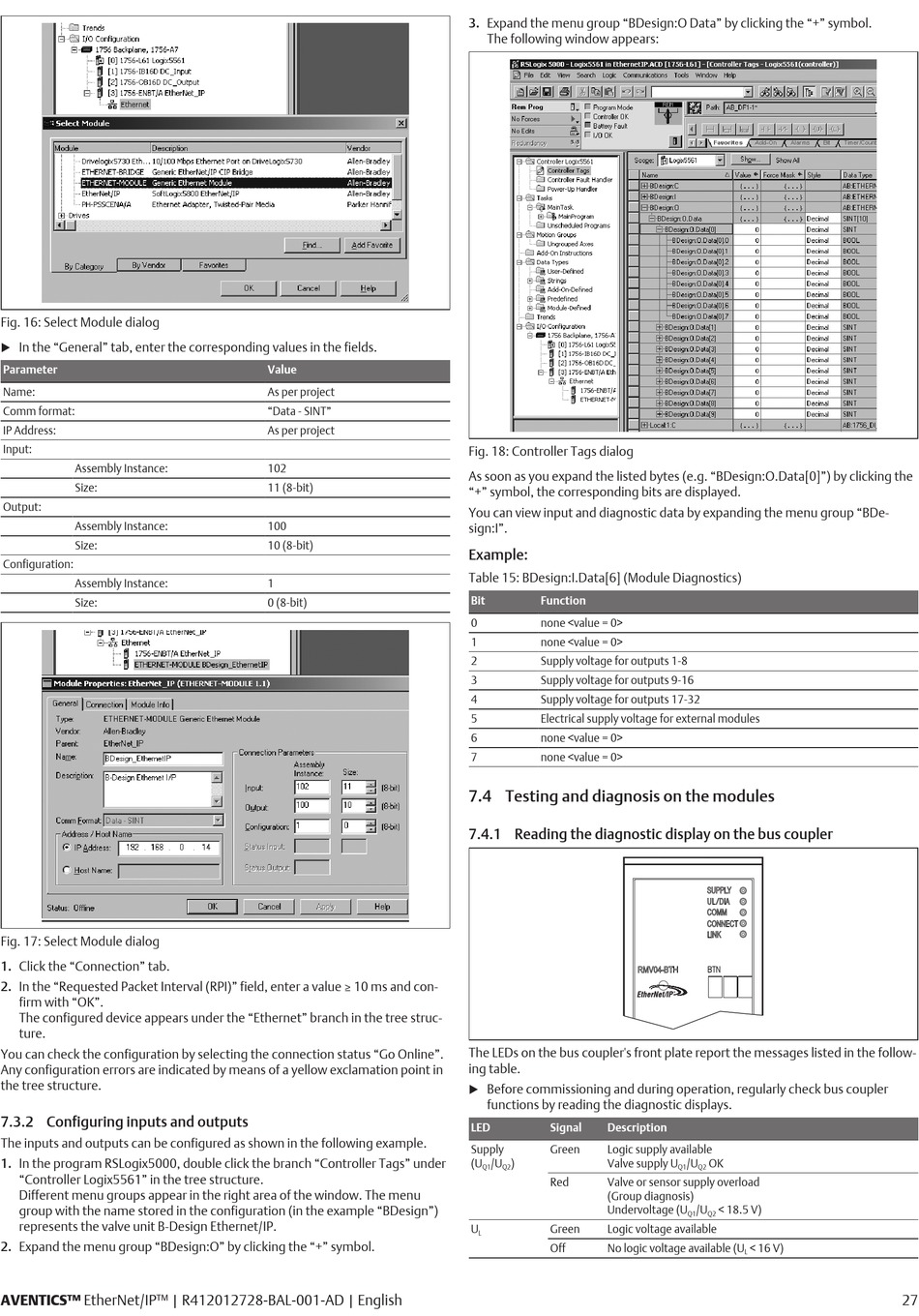

Fig. 16: Select Module dialog
In the "General" tab, enter the corresponding values in the fields.
u
Parameter
Name:
Comm format:
IP Address:
Input:
Assembly Instance:
Size:
Output:
Assembly Instance:
Size:
Configuration:
Assembly Instance:
Size:
Fig. 17: Select Module dialog
1. Click the "Connection" tab.
2. In the "Requested Packet Interval (RPI)" field, enter a value ≥ 10 ms and con-
firm with "OK".
The configured device appears under the "Ethernet" branch in the tree struc-
ture.
You can check the configuration by selecting the connection status "Go Online".
Any configuration errors are indicated by means of a yellow exclamation point in
the tree structure.

7.3.2 Configuring inputs and outputs

The inputs and outputs can be configured as shown in the following example.
1. In the program RSLogix5000, double click the branch "Controller Tags" under
"Controller Logix5561" in the tree structure.
Different menu groups appear in the right area of the window. The menu
group with the name stored in the configuration (in the example "BDesign")
represents the valve unit B-Design Ethernet/IP.
2. Expand the menu group "BDesign:O" by clicking the "+" symbol.
AVENTICS™ EtherNet/IP™ | R412012728-BAL-001-AD | English
Value
As per project
"Data - SINT"
As per project
102
11 (8-bit)
100
10 (8-bit)
1
0 (8-bit)
3. Expand the menu group "BDesign:O Data" by clicking the "+" symbol.
The following window appears:
Fig. 18: Controller Tags dialog
As soon as you expand the listed bytes (e.g. "BDesign:O.Data[0]") by clicking the
"+" symbol, the corresponding bits are displayed.
You can view input and diagnostic data by expanding the menu group "BDe-
sign:I".
Example:
Table 15: BDesign:I.Data[6] (Module Diagnostics)
Bit Function
0 none <value = 0>
1 none <value = 0>
2 Supply voltage for outputs 1-8
3 Supply voltage for outputs 9-16
4 Supply voltage for outputs 17-32
5 Electrical supply voltage for external modules
6 none <value = 0>
7 none <value = 0>

7.4 Testing and diagnosis on the modules

7.4.1 Reading the diagnostic display on the bus coupler

The LEDs on the bus coupler's front plate report the messages listed in the follow-
ing table.
Before commissioning and during operation, regularly check bus coupler
u
functions by reading the diagnostic displays.
LED Signal Description
Supply Green Logic supply available
(U /U ) Valve supply U
Q1 Q2
Red Valve or sensor supply overload
(Group diagnosis)
Undervoltage (U
U Green Logic voltage available
L
Off No logic voltage available (U
/U OK
Q1 Q2
/U < 18.5 V)
Q1 Q2
< 16 V)
L
