If using magnetic targets

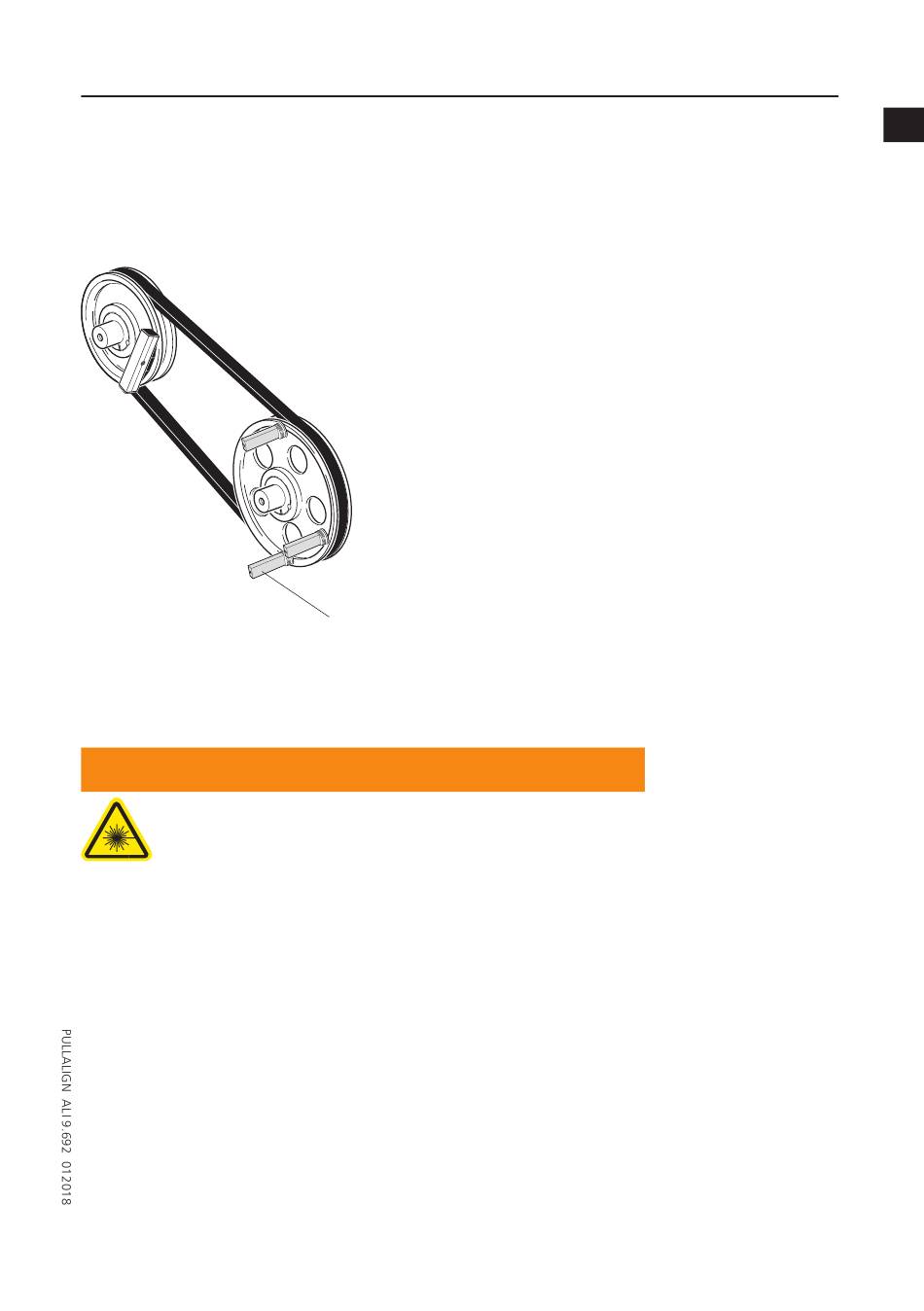

Attach the three magnetic targets on the machine to be moved.
The targets are typically mounted 120° apart.

Check alignment condition

Switch the laser on using its rocker switch.
Warning
Do not look into the laser beam at any time.
The misalignment conditions to be checked include vertical
angularity, horizontal angularity and offset. The position of
the transmitted laser line on the reflector indicates the vertical
angularity and the offset. Horizontal angularity is indicated by the
position of the reflected laser line on the transmitter.
Magnetic target
ALI 2.302 or ALI 2.303
each set comprises 3
targets
11
Getting started
en
