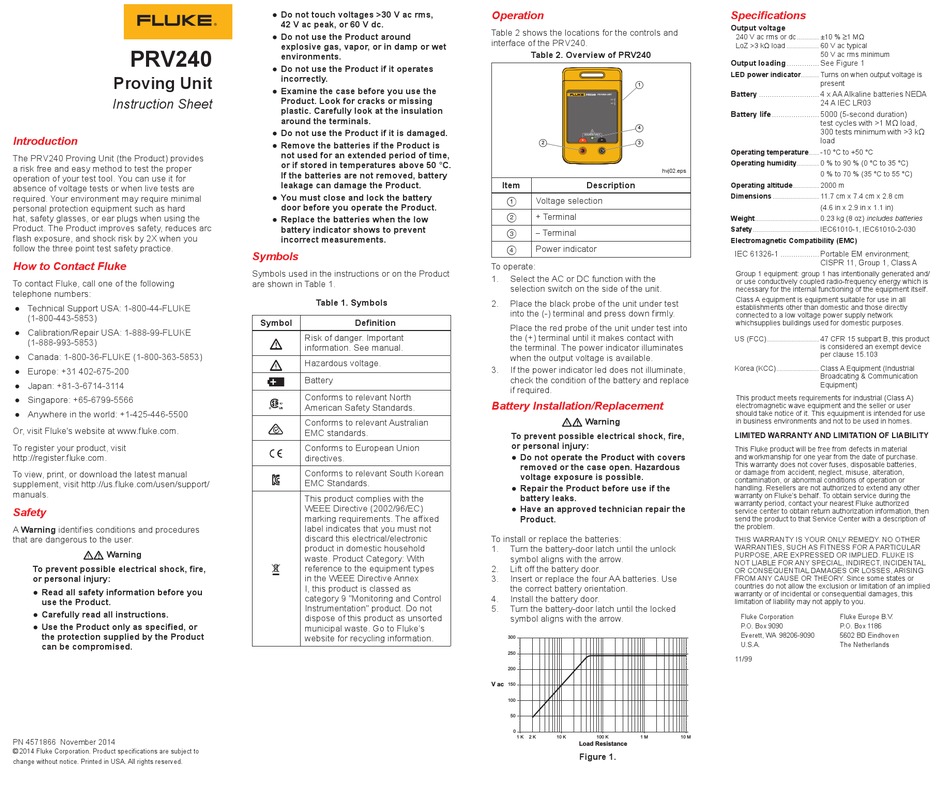

PRV240
Proving Unit
Instruction Sheet
Introduction
The PRV240 Proving Unit (the Product) provides
a risk free and easy method to test the proper
operation of your test tool. You can use it for
absence of voltage tests or when live tests are
required. Your environment may require minimal
personal protection equipment such as hard
hat, safety glasses, or ear plugs when using the
Product. The Product improves safety, reduces arc
flash exposure, and shock risk by 2X when you
follow the three point test safety practice.
How to Contact Fluke
To contact Fluke, call one of the following
telephone numbers:
● Technical Support USA: 1-800-44-FLUKE
(1-800-443-5853)
● Calibration/Repair USA: 1-888-99-FLUKE
(1-888-993-5853)
● Canada: 1-800-36-FLUKE (1-800-363-5853)
● Europe: +31 402-675-200
● Japan: +81-3-6714-3114
● Singapore: +65-6799-5566
● Anywhere in the world: +1-425-446-5500
Or, visit Fluke's website at www.fluke.com.
To register your product, visit
http://register.fluke.com.
To view, print, or download the latest manual
supplement, visit http://us.fluke.com/usen/support/
manuals.
Safety
A Warning identifies conditions and procedures
that are dangerous to the user.
 Warning
To prevent possible electrical shock, fire,
or personal injury:
● Read all safety information before you
use the Product.
● Carefully read all instructions.
● Use the Product only as specified, or
the protection supplied by the Product
can be compromised.
PN 4571866 November 2014
© 2014 Fluke Corporation. Product specifications are subject to
change without notice. Printed in USA. All rights reserved.
● Do not touch voltages >30 V ac rms,
42 V ac peak, or 60 V dc.
● Do not use the Product around
explosive gas, vapor, or in damp or wet
environments.
● Do not use the Product if it operates
incorrectly.
● Examine the case before you use the
Product. Look for cracks or missing
plastic. Carefully look at the insulation
around the terminals.
● Do not use the Product if it is damaged.
● Remove the batteries if the Product is
not used for an extended period of time,
or if stored in temperatures above 50 °C.
If the batteries are not removed, battery
leakage can damage the Product.
● You must close and lock the battery
door before you operate the Product.
● Replace the batteries when the low
battery indicator shows to prevent
incorrect measurements.
Symbols
Symbols used in the instructions or on the Product
are shown in Table 1.
Table 1. Symbols
Symbol Definition
Risk of danger. Important

information. See manual.
Hazardous voltage.

Battery

Conforms to relevant North

American Safety Standards.
Conforms to relevant Australian

EMC standards.
Conforms to European Union

directives.
Conforms to relevant South Korean

EMC Standards.
This product complies with the
WEEE Directive (2002/96/EC)
marking requirements. The affixed
label indicates that you must not
discard this electrical/electronic
product in domestic household
waste. Product Category: With
reference to the equipment types

in the WEEE Directive Annex
I, this product is classed as
category 9 "Monitoring and Control
Instrumentation" product. Do not
dispose of this product as unsorted
municipal waste. Go to Fluke's
website for recycling information.
Operation
Table 2 shows the locations for the controls and
interface of the PRV240.
Table 2. Overview of PRV240
1
4
SOURCE ONLY
2 3
hvj02.eps
Item Description
Voltage selection

+ Terminal

− Terminal

Power indicator

To operate:
1. Select the AC or DC function with the
selection switch on the side of the unit.
2. Place the black probe of the unit under test
into the (-) terminal and press down firmly.
Place the red probe of the unit under test into
the (+) terminal until it makes contact with
the terminal. The power indicator illuminates
when the output voltage is available.
3. If the power indicator led does not illuminate,
check the condition of the battery and replace
if required.
Battery Installation/Replacement
 Warning
To prevent possible electrical shock, fire,
or personal injury:
● Do not operate the Product with covers
removed or the case open. Hazardous
voltage exposure is possible.
● Repair the Product before use if the
battery leaks.
● Have an approved technician repair the
Product.
To install or replace the batteries:
1. Turn the battery-door latch until the unlock
symbol aligns with the arrow.
2. Lift off the battery door.
3. Insert or replace the four AA batteries. Use
the correct battery orientation.
4. Install the battery door.
5. Turn the battery-door latch until the locked
symbol aligns with the arrow.
300
250
200
V ac
150
100
50
0
1 K 2 K 10 K 100 K 1 M
Load Resistance
Figure 1.
Specifications
Output voltage
240 V ac rms or dc ........... ±10 % ≥1 MΩ
LoZ >3 kΩ load ................ 60 V ac typical
50 V ac rms minimum
Output loading ............... See Figure 1
LED power indicator ......... Turns on when output voltage is
present
Battery ............................ 4 x AA Alkaline batteries NEDA
24 A IEC LR03
Battery life ...................... 5000 (5-second duration)
test cycles with >1 MΩ load,
300 tests minimum with >3 kΩ
load
Operating temperature ..... -10 °C to +50 °C
Operating humidity ........... 0 % to 90 % (0 °C to 35 °C)
0 % to 70 % (35 °C to 55 °C)
Operating altitude ............. 2000 m
Dimensions ....................... 11.7 cm x 7.4 cm x 2.8 cm
(4.6 in x 2.9 in x 1.1 in)
Weight ................................ 0.23 kg (8 oz) includes batteries
Safety ................................. IEC61010-1, IEC61010-2-030
Electromagnetic Compatibility (EMC)
IEC 61326-1 .................. Portable EM environment;
CISPR 11, Group 1, Class A
Group 1 equipment: group 1 has intentionally generated and/
or use conductively coupled radio-frequency energy which is
necessary for the internal functioning of the equipment itself.
Class A equipment is equipment suitable for use in all
establishments other than domestic and those directly
connected to a low voltage power supply network
whichsupplies buildings used for domestic purposes.
US (FCC) .......................... 47 CFR 15 subpart B, this product
is considered an exempt device
per clause 15.103
Korea (KCC) ..................... Class A Equipment (Industrial
Broadcating & Communication
Equipment)
This product meets requirements for industrial (Class A)
electromagnetic wave equipment and the seller or user
should take notice of it. This equuipment is intended for use
in business environments and not to be used in homes.
LIMITED WARRANTY AND LIMITATION OF LIABILITY
This Fluke product will be free from defects in material
and workmanship for one year from the date of purchase.
This warranty does not cover fuses, disposable batteries,
or damage from accident, neglect, misuse, alteration,
contamination, or abnormal conditions of operation or
handling. Resellers are not authorized to extend any other
warranty on Fluke's behalf. To obtain service during the
warranty period, contact your nearest Fluke authorized
service center to obtain return authorization information, then
send the product to that Service Center with a description of
the problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER
WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR
PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE IS
NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL
OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING
FROM ANY CAUSE OR THEORY. Since some states or
countries do not allow the exclusion or limitation of an implied
warranty or of incidental or consequential damages, this
limitation of liability may not apply to you.
