The cable connecting the inline amplifier to the next link in the measurement
chain must not exceed 30 m in length.
7.2.3

Operating the inline amplifier/zeroing the measurement chain

The measurement starts as soon as the sensor is connected to a supply
voltage and the output of the amplifier is connected to the next link in the
measurement chain.
If you apply a voltage > 10 V to the "Zero" input, a one-time zeroing is
performed. After this zeroing, the device continues to measure, even if you
apply a voltage above 10 V to the input.
To trigger a new zeroing operation, the input must first be set to 0 V and then
be reset by applying a voltage of over 10 V.
Notice
Please note that you can zero the measurement chain with any force applied. If
an initial load is already acting on the force transducer, it is essential to
consider it, otherwise the force transducer may be overloaded.

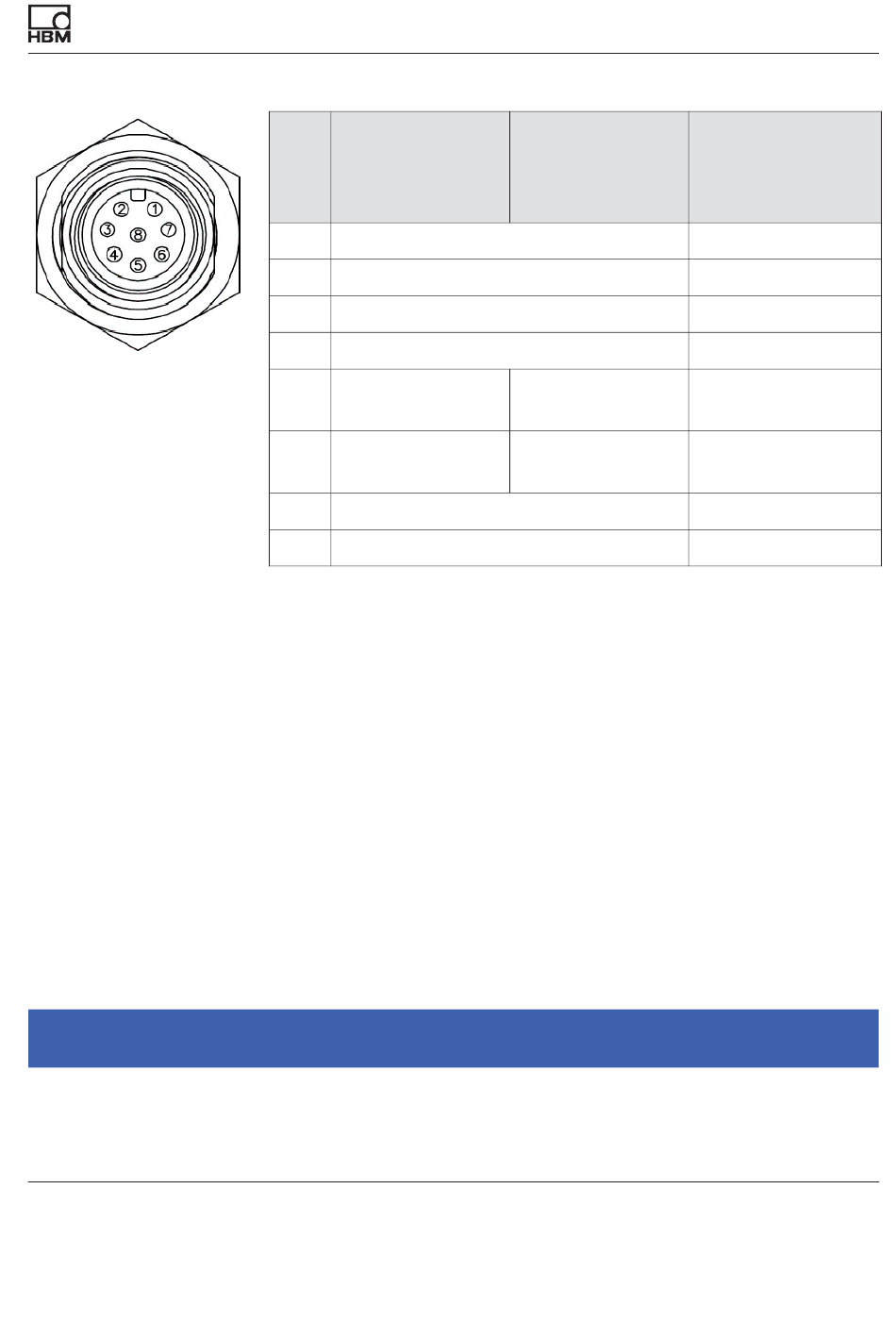

U9C
Pin Version VA 1
(voltage out­
put)
1 Supply voltage 0 V (GND)
2
3 Control input zero setting
4
5 Output signal
0 ... 10 V
6 Output signal
0 V
7
8 Voltage supply +19 ... +30 V
A03815_03_YI0_01 HBM: public
Version VA 2
(current out­
put)
Not in use
Not in use
Output signal
4 ... 20 mA
Not in use
Not in use
Electrical connection
KAB168
connection
cable wire
assignment
white
brown
green
yellow
gray
pink
blue
red
