7

Electrical connection

7.1 Connection to measuring amplifier without
permanently connected amplifier module
The U9C is a force transducer that outputs a mV/V signal based on strain
gages. An amplifier is needed to condition the signal. All DC amplifiers and
carrier-frequency amplifiers designed for SG measurement systems can be
used.
Force transducers are executed in a four-wire circuit.
7.1.1

General information and connection

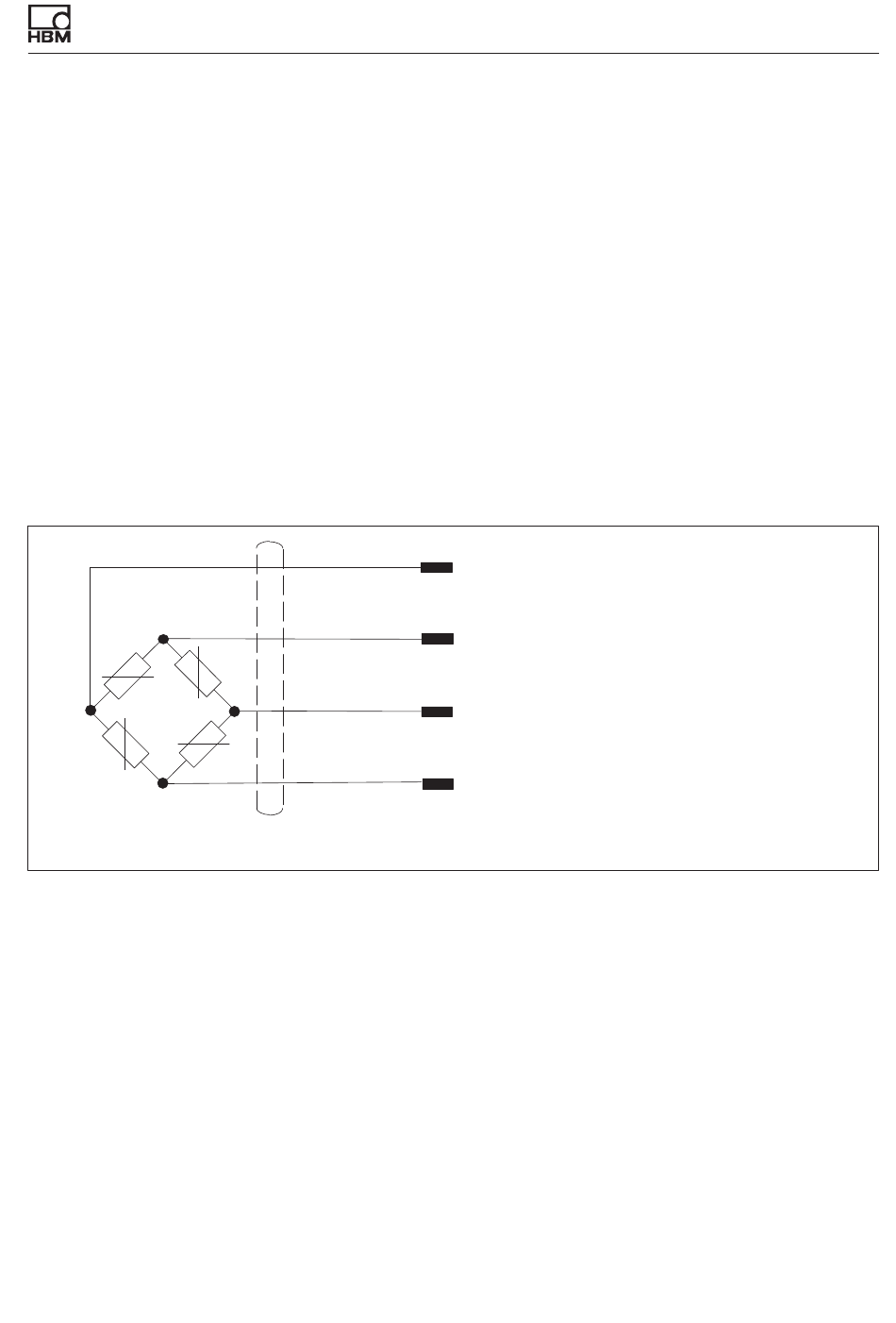

Fig. 7.1 Pin assignment and color code
The output signal is positive with this pin assignment and load in the pressure
direction. If you need a negative output signal in the pressure direction,
exchange the red and white wires.
The connection cable shield is connected to the transducer housing. If you are
not using pre-wired HBM cables, please connect the cable shield to the cable
socket housing. Use CE standard connectors on the free ends of the cable to
be connected to the amplifier system; the shield must be connected
extensively. With other connection techniques, a good EMC shield must be
provided in the stranded area, where the shielding must also be extensively
connected.
U9C
Cable shield, connected to the housing
A03815_03_YI0_01 HBM: public
Electrical connection
1: White, measurement signal (+)
2: Black, excitation voltage (-)
4: Red, measurement signal (-)
3: Blue, excitation voltage (+)
21
