Siemens SIMOVERT MASTERDRIVES Betriebsanleitung Seite 57

05.2009
X1
SIMOVERT
MASTERDRIVES
X2
Siemens AG 6SE7087-6CX87-2DA1
SIMOVERT MASTERDRIVES
A shield plate is included in the scope of supply of the 5 – 50 kW
braking units. When using shielded control cables or a shielded cable
for the external braking resistor, the shield of these cables can be
connected to the shield plate. This plate is also used for strain relief.
The shield plate is mounted via two bolts and the nuts supplied on the
bottom of the braking unit as shown in Fig. 3-2.

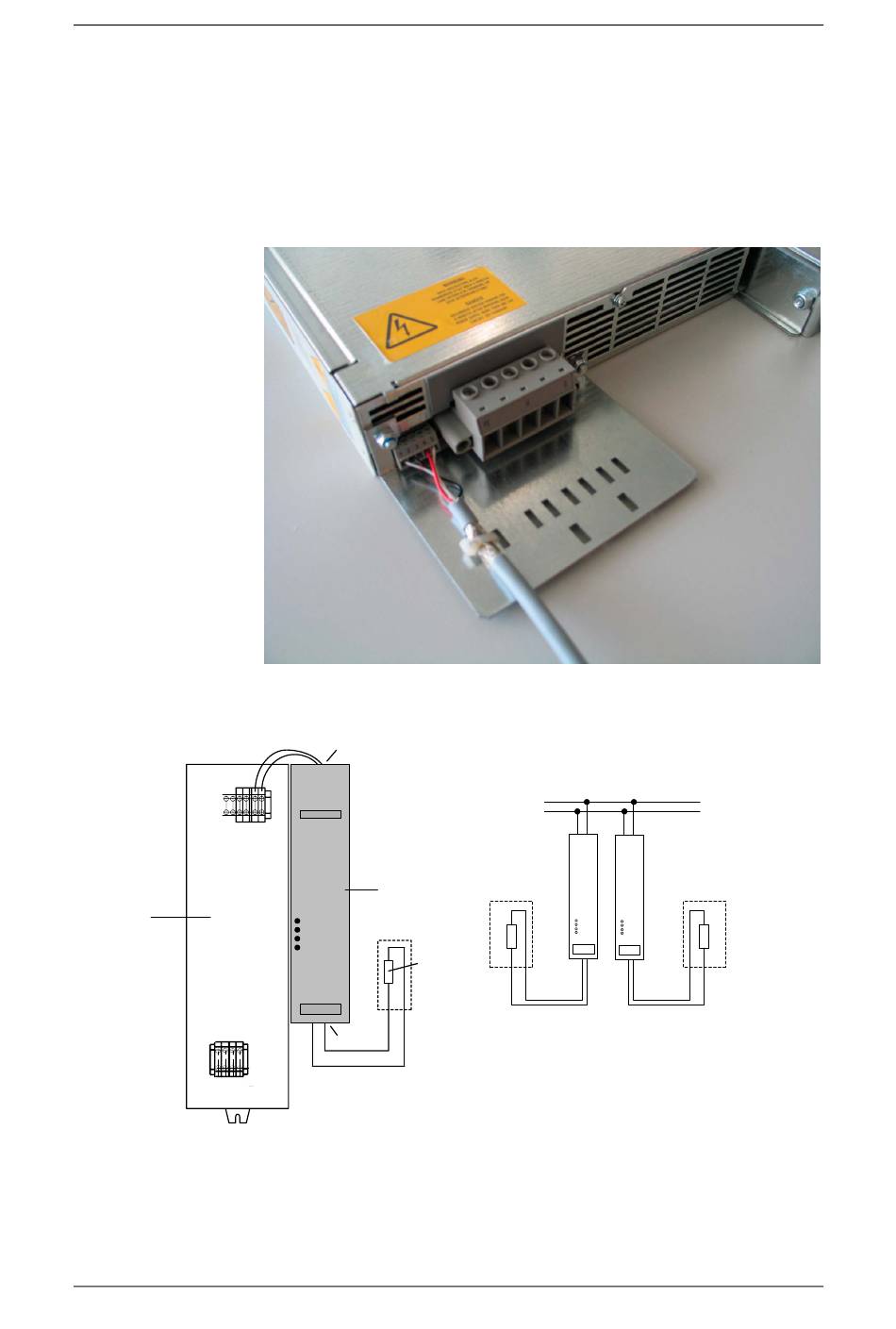

Fig. 3-2 5 – 50 kW braking unit with shield plate
X3
X3
D
C
Braking Unit
Overcurr.
Overload
Overtemp.
Ready
X6
Fig. 3-3 Connection of the braking unit
Braking Unit
SIEMENS
Overcurrent
Overload
Overtemp.
Ready
Ext.
Braking
Resistor
Parallel connection of braking units
Mounting, Connecting-Up
DC link
SIEMENS
Braking Unit
Braking
Overcurrent
Overload
Overtemp.
Resistor
Ready
3-3
