Description Of Manual Gas Console Panel And Its Use - Cebora PLASMA PROF 166 Betriebsanleitung

I = Coolant level indicator.
L= Coolant outlet filter.
M= Coolant tank bleeder valve.
N= Coolant delivery pipe quick-fitting.
O= Coolant return pipe quick-fitting.
P = Welding torch coupling
Q = Fairlead for earth cable.
R= Coolant return filter.
S = Connector for remote panel connection.
T = USB socket for updating the power source firmware.
A
56
B

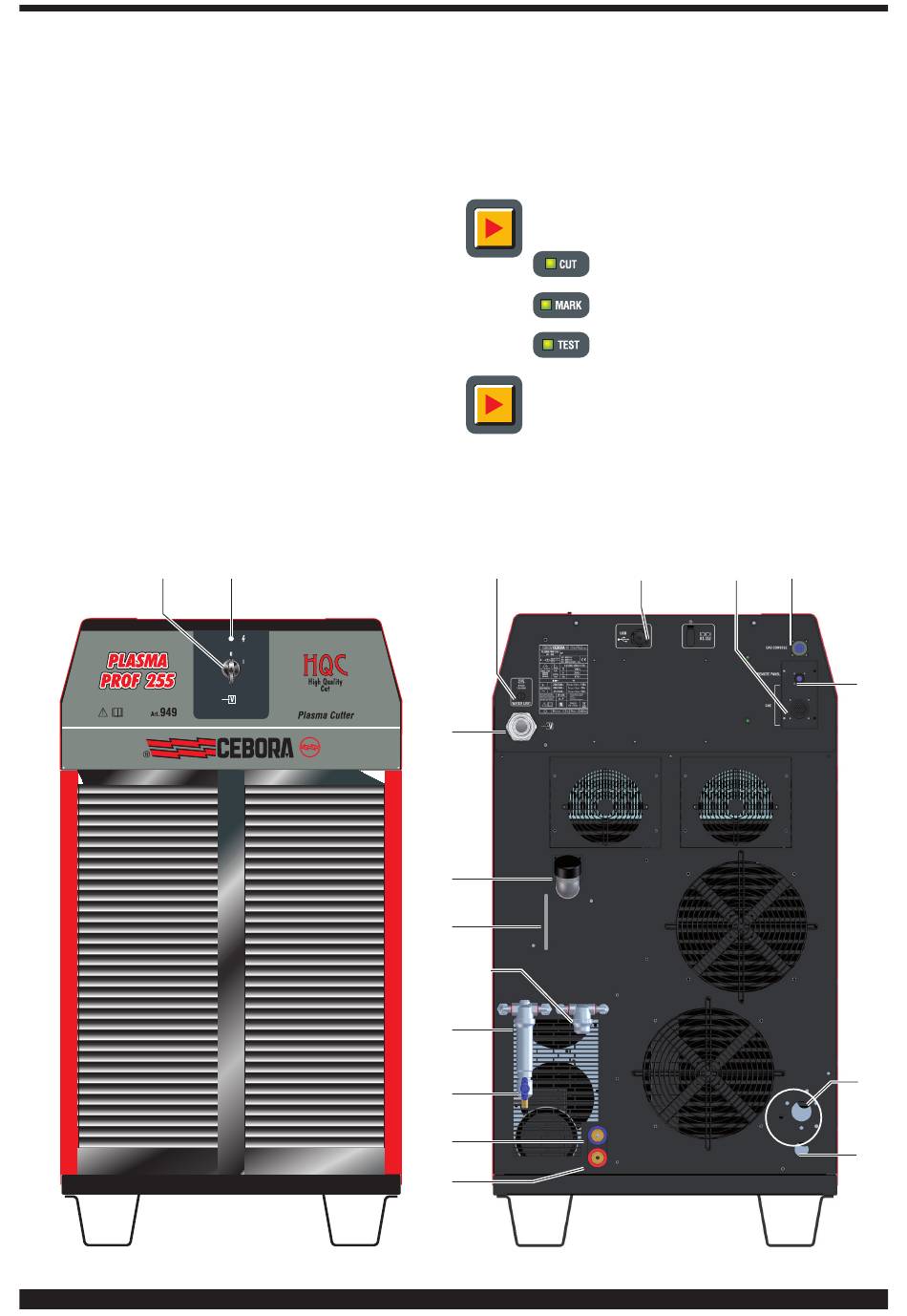

4.2 DESCRIPTION OF MANUAL GAS CONSOLE
PANEL AND ITS USE (FIG. 21)
All system functions can be controlled from the gas con-
sole panel. In particular, the type of job to be performed is
selected, i.e., CUT, MARK, or gas TEST.
A: Work mode selection button.
Every time this button is pressed, the corre-
sponding LED comes on:
B: Cutting mode LED.
C: Mark mode LED.
D: Test mode LED.
E: Button for selecting the parameters to be
regulated.
Every time this button is pressed, the corre-
sponding LED comes on:
D
E
H
I
R
L
M
N
O
Fig. 20 b
C F G
S
P
Q
