1.3 Do not cut on drums or any closed container.
2. The plasma arc can cause injury and burns.
2.1 Turn off power before disassembling torch.
2.2 Do not grip material near cutting path.
2.3 Wear complete body protection.
3. Electric shock from torch or wiring can kill.
3.1 Wear dry insulating gloves. Do not wear wet or da-
maged gloves.
3.2 Protect yourself from electric shock by insulating
yourself from work and ground.
3.3 Disconnect input plug or power before working on
machine.
4 Breathing cutting fumes can be hazardous to your
health.
4.1 Keep your head out of fumes.
4.2 Use forced ventilation or local exhaust to remove fu-
mes.
4.3 Use ventilating fan to remove fumes.
5 Arc rays may injure the eyes and burn the skin. Op-
erators should therefore shield their eyes with lens-
es with a protection rating equal to or greater than
DIN11 and adequately protect their
5.1 Wear hat and safety glasses. Use ear protection and
button shirt collar. Use welding helmet with correct
shade of filter. Wear complete body protection.
6 Become trained and read the instructions before
working on the machine or cutting.
7 Do not remove or paint over (cover) the label.
Art. 470-466
Art. 948 - 949
face.
Art. 1169....
Art. 1166....
Art. 1189....
Art. 469

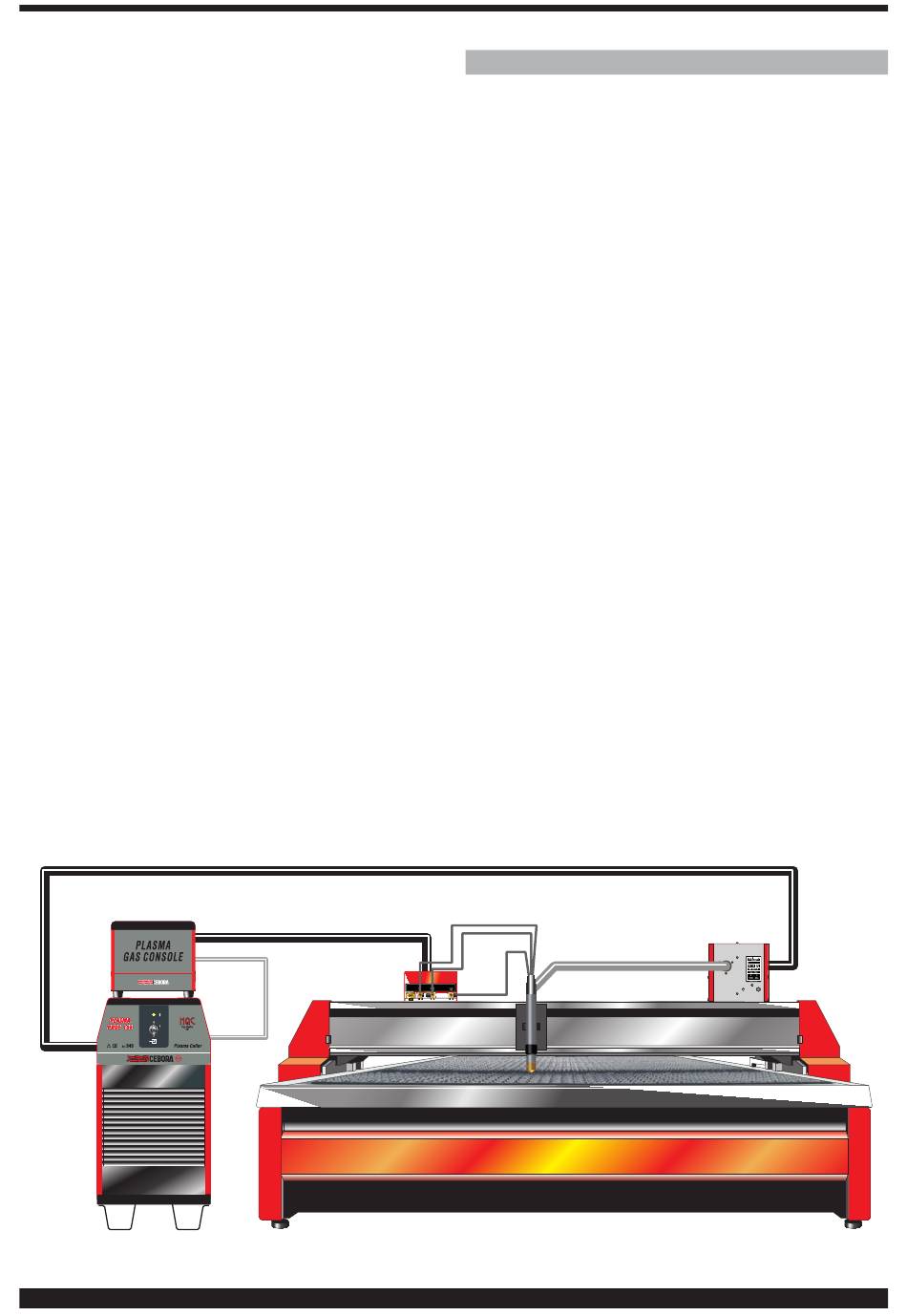

Fig. 1

2 TECHNICAL SPECIFICATIONS

2.1 GENERAL DESCRIPTION OF THE SYSTEM

The Plasma Prof 166 HQC (Art. 948) and the Plasma Prof
255 HQC (Art. 949) , complete with ignition unit HV19-1
(Art. 464) or HV-PVC (art.462), manual gas console PGC-
3 - PGC-2 (Art. 470) or automatic gas console APGC
(Art.466), PVC valve console (Art. 469) and torch CP450G
(articles depend on application), are mechanized multi-
gas plasma cutting systems, fully controlled by a micro-
processor, able to dispense a max current of 120 /250 A
at 100% duty cycle.
All process parameters (material, gas, thickness and cur-
rent) may be selected from the gas console; the optimum
gas flow is automatically indicated based on the choices
made.
The status of all operating parameters may be easily ac-
quired, via personal computer, through a RS232 or USB
port on the front panel of the power source; this allows a
complete overview of the job situation and can help in the
event of any malfunctions.
The machine software can then be updated using the
same RS232, either a USB flashdrive.
For optimum cutting of any metal material, the system
uses different gases, such as: air, nitrogen N2, oxygen
O2, H35 blend (35% hydrogen H2 – 65% argon AR), F5
blend (5% hydrogen H2 – 95% nitrogen N2). Combina-
tions of the latter are automatically suggested based on
the material selected. it is then possible to perform the
marking with gas argon Ar, also automatically suggested.
Various sets of consumables are available based on the
cutting current and gases used, calibrated and tested to
obtain the maximum cutting quality.
Art. 1224-1225
Art. 464
