F: Led indicating the selection mode of
the type of material to be cut.
G: Led indicating the selection mode
of the PLASMA/SECONDARY gas
combination.
H: Led indicating the selection mode of
the thickness of the material to be
cut.
I: Led indicating the selection mode of
the cutting current.
L: Led indicating the different mode of
the cutting speed.
M: Led indicating the different consuma-
bles set to be used relating to previous
selections.
N: Display showing parameters being
adjusted.
O: Parameter adjustment knob.
P: Display showing type of cutting plasma gas.
B
A
F
E
I
L
N
O
G C D H
M K
Q: Display showing type of secondary cutting
gas.
R: Display showing pressure of plasma gas
during cutting.
S: Display showing pressure of plasma gas
being ignited.
T: Display showing pressure of secondary gas
being ignited.
U: Display showing pressure of secondary gas
during cutting.
V: Button for selecting PRE/CUT FLOW and
secondary PRE/CUT FLOW plasma gas
channels.
W: Button for confirming parameter settings:
console ready for CUT, MARK or TEST.
P R S W
Z
V T
Q
U
X
Y

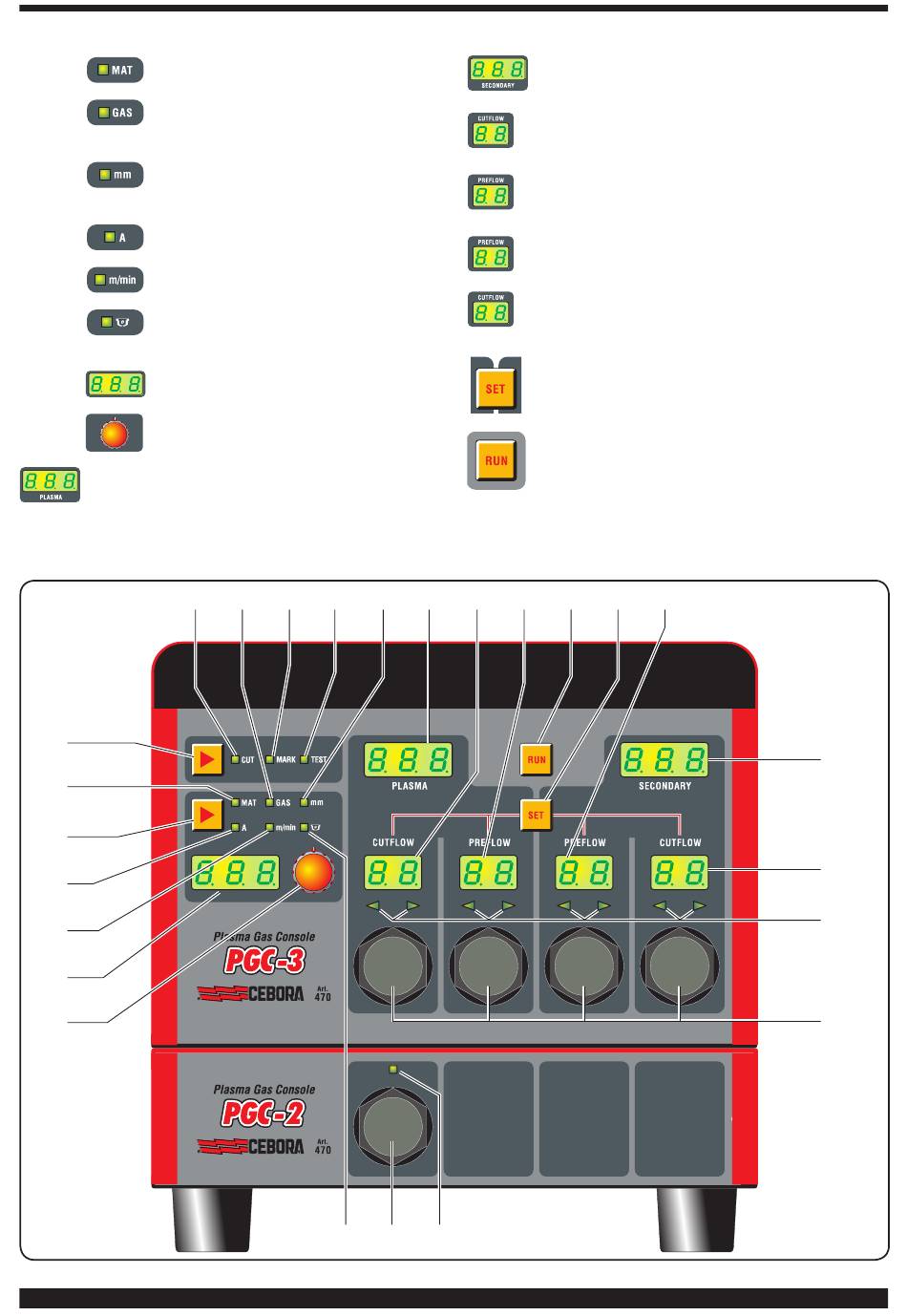

Fig. 21
