a) Disassembly of the mechanics

For maintenance or repairs, you may have to disassemble the helicopter mechanics. Proceed in the following se-
quence:

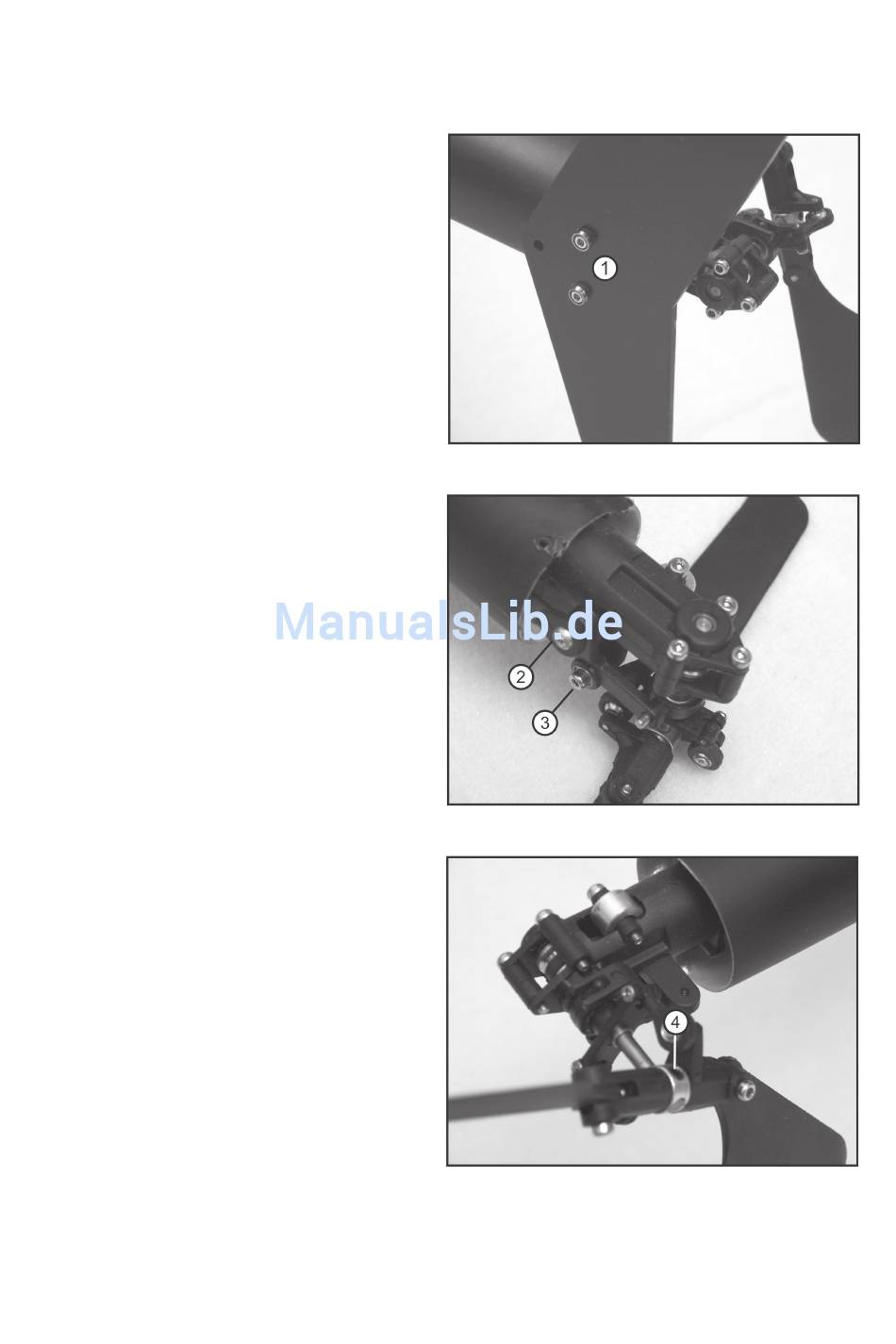

• Remove the tail unit (1) at the rear of the fuselage with the
two screws.
• Unhook the linkage rods from the ball head (2) and re-
move the fastening screw of the tail rotor control lever (3).
• Loosen the set screw (4) of the blade holder and push the
blade holder with the tail rotor blades from the shaft.
Figure 9
Figure 10
Figure 11
