9. Transmitter Controls

a) Front of the transmitter (delivery status in mode 2)
1 "On/off" switch
2 Display
3 "UP" and "DN" buttons
4 "INC" and "DEC" buttons
5 Trim slider left/right left control stick
6 Trim slider forward/reverse left control stick
7 Left control stick
8 Switch idle "UP" (flight mode or normal or aerobatic
flight)
9 Switch Aux / channel 5
10 Red LED as on / off control indicator
122

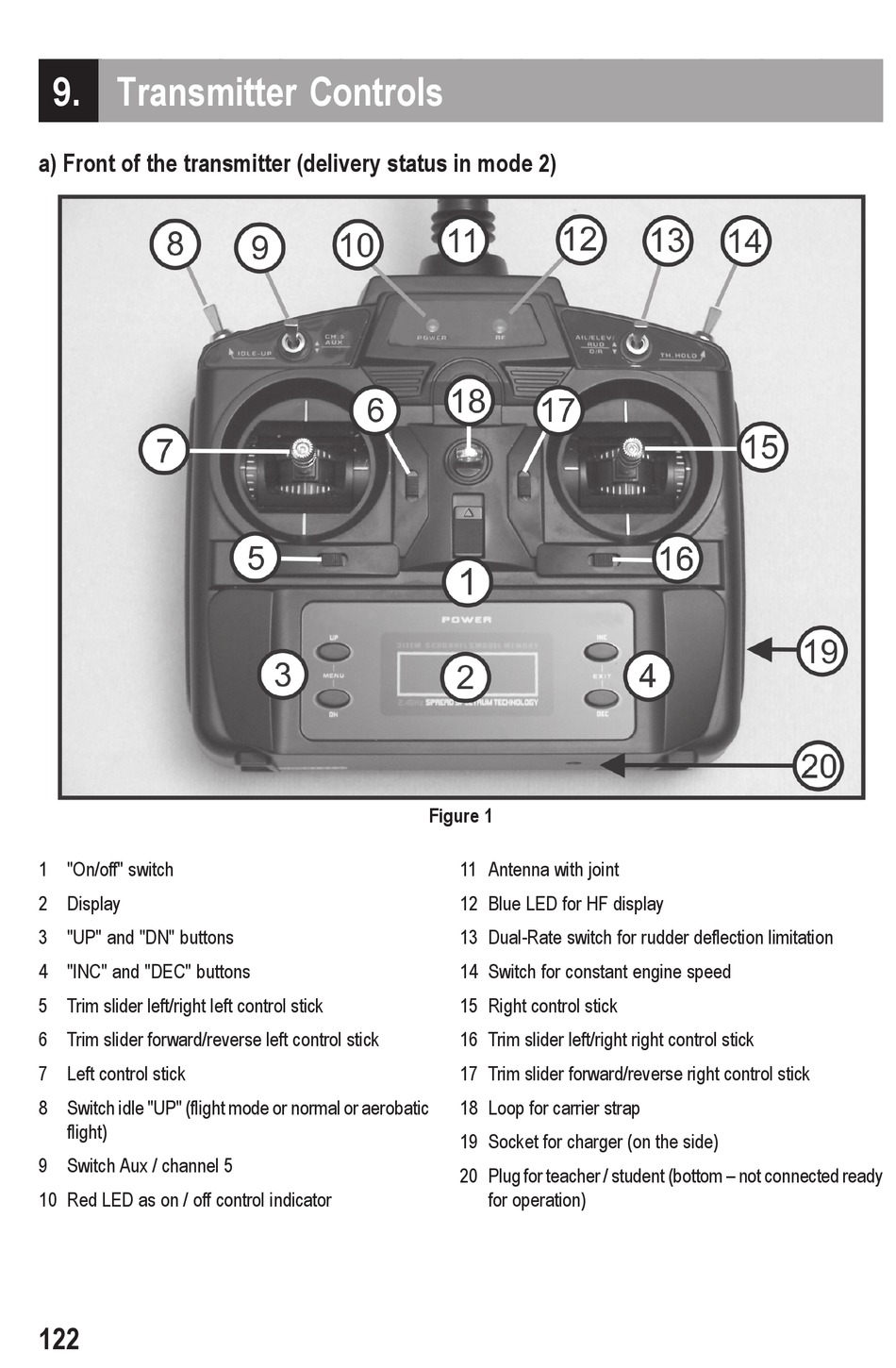

Figure 1
11 Antenna with joint
12 Blue LED for HF display
13 Dual-Rate switch for rudder deflection limitation
14 Switch for constant engine speed
15 Right control stick
16 Trim slider left/right right control stick
17 Trim slider forward/reverse right control stick
18 Loop for carrier strap
19 Socket for charger (on the side)
20 Plug for teacher / student (bottom – not connected ready
for operation)
