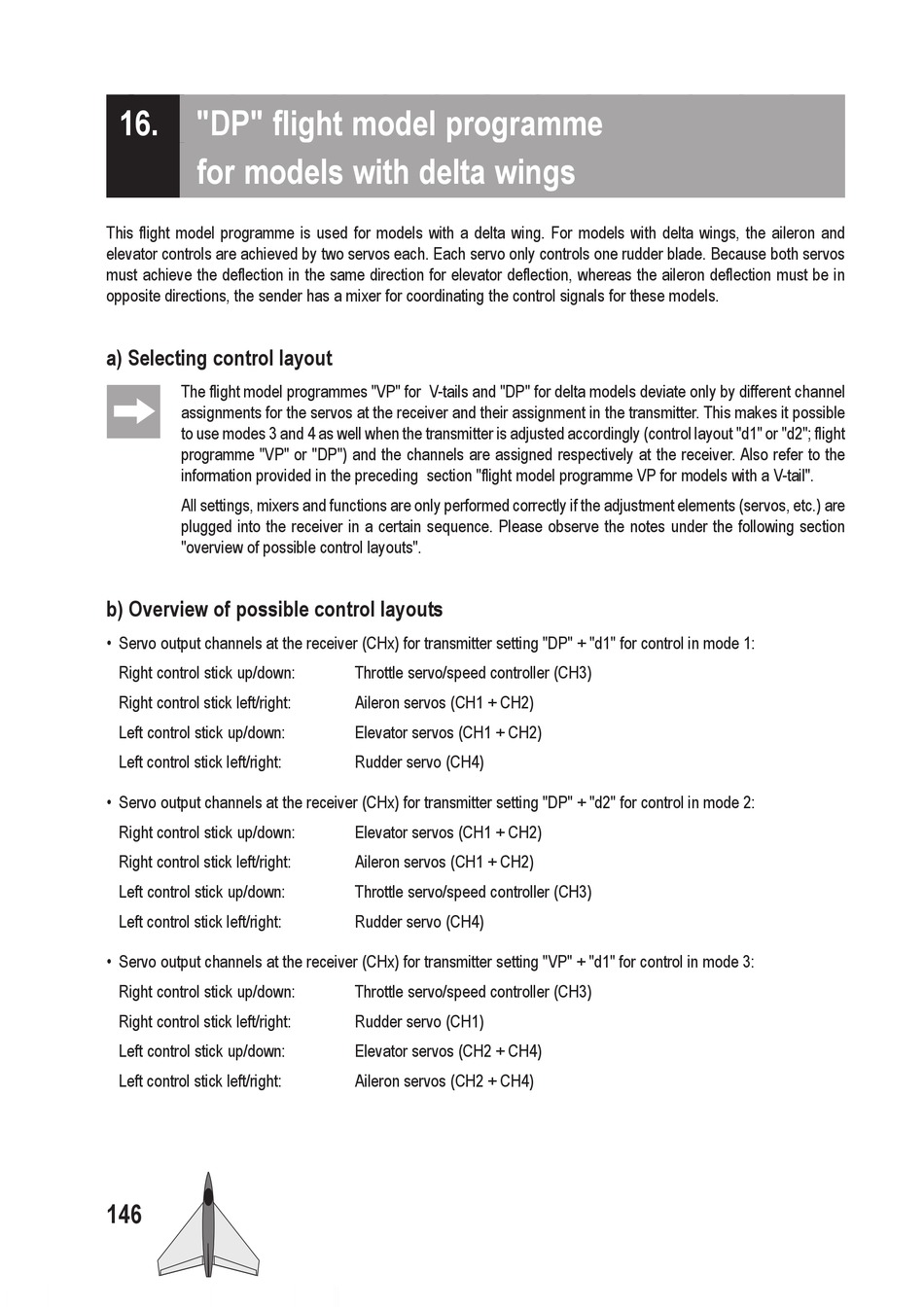

16.
"DP" flight model programme

for models with delta wings
This flight model programme is used for models with a delta wing. For models with delta wings, the aileron and
elevator controls are achieved by two servos each. Each servo only controls one rudder blade. Because both servos
must achieve the deflection in the same direction for elevator deflection, whereas the aileron deflection must be in
opposite directions, the sender has a mixer for coordinating the control signals for these models.
a) Selecting control layout
The flight model programmes "VP" for V-tails and "DP" for delta models deviate only by different channel
assignments for the servos at the receiver and their assignment in the transmitter. This makes it possible
to use modes 3 and 4 as well when the transmitter is adjusted accordingly (control layout "d1" or "d2"; flight
programme "VP" or "DP") and the channels are assigned respectively at the receiver. Also refer to the
information provided in the preceding section "flight model programme VP for models with a V-tail".
All settings, mixers and functions are only performed correctly if the adjustment elements (servos, etc.) are
plugged into the receiver in a certain sequence. Please observe the notes under the following section
"overview of possible control layouts".

b) Overview of possible control layouts

• Servo output channels at the receiver (CHx) for transmitter setting "DP" + "d1" for control in mode 1:
Right control stick up/down:
Right control stick left/right:
Left control stick up/down:
Left control stick left/right:
• Servo output channels at the receiver (CHx) for transmitter setting "DP" + "d2" for control in mode 2:
Right control stick up/down:
Right control stick left/right:
Left control stick up/down:
Left control stick left/right:
• Servo output channels at the receiver (CHx) for transmitter setting "VP" + "d1" for control in mode 3:
Right control stick up/down:
Right control stick left/right:
Left control stick up/down:
Left control stick left/right:
146
Throttle servo/speed controller (CH3)
Aileron servos (CH1 + CH2)
Elevator servos (CH1 + CH2)
Rudder servo (CH4)
Elevator servos (CH1 + CH2)
Aileron servos (CH1 + CH2)
Throttle servo/speed controller (CH3)
Rudder servo (CH4)
Throttle servo/speed controller (CH3)
Rudder servo (CH1)
Elevator servos (CH2 + CH4)
Aileron servos (CH2 + CH4)
