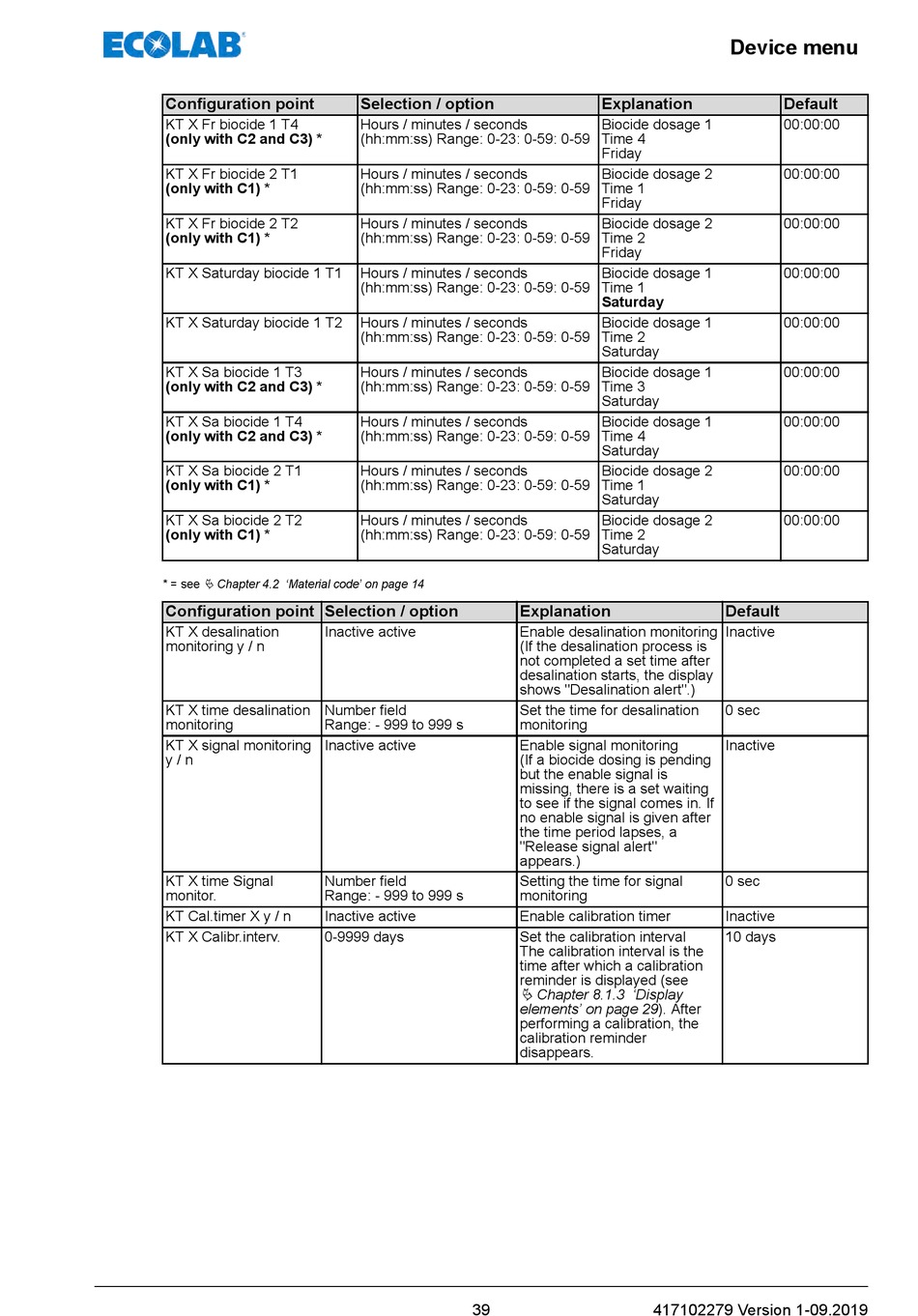

ECOLAB Versatronic Kurz- Betriebsanleitung Seite 83

Configuration point
KT X Fr biocide 1 T4
(only with C2 and C3) *
KT X Fr biocide 2 T1
(only with C1) *
KT X Fr biocide 2 T2
(only with C1) *
KT X Saturday biocide 1 T1
KT X Saturday biocide 1 T2
KT X Sa biocide 1 T3
(only with C2 and C3) *
KT X Sa biocide 1 T4
(only with C2 and C3) *
KT X Sa biocide 2 T1
(only with C1) *
KT X Sa biocide 2 T2
(only with C1) *
Ä Chapter 4.2 'Material code' on page 14
* = see
Configuration point Selection / option
KT X desalination Inactive active
monitoring y / n
KT X time desalination Number field
monitoring Range: - 999 to 999 s
KT X signal monitoring Inactive active
y / n
KT X time Signal Number field
monitor. Range: - 999 to 999 s
KT Cal.timer X y / n Inactive active
KT X Calibr.interv. 0-9999 days
Selection / option
Hours / minutes / seconds
(hh:mm:ss) Range: 0-23: 0-59: 0-59
Hours / minutes / seconds
(hh:mm:ss) Range: 0-23: 0-59: 0-59
Hours / minutes / seconds
(hh:mm:ss) Range: 0-23: 0-59: 0-59
Hours / minutes / seconds
(hh:mm:ss) Range: 0-23: 0-59: 0-59
Hours / minutes / seconds
(hh:mm:ss) Range: 0-23: 0-59: 0-59
Hours / minutes / seconds
(hh:mm:ss) Range: 0-23: 0-59: 0-59
Hours / minutes / seconds
(hh:mm:ss) Range: 0-23: 0-59: 0-59
Hours / minutes / seconds
(hh:mm:ss) Range: 0-23: 0-59: 0-59
Hours / minutes / seconds
(hh:mm:ss) Range: 0-23: 0-59: 0-59
Explanation
Enable desalination monitoring
(If the desalination process is
not completed a set time after
desalination starts, the display
shows "Desalination alert".)
Set the time for desalination
monitoring
Enable signal monitoring
(If a biocide dosing is pending
but the enable signal is
missing, there is a set waiting
to see if the signal comes in. If
no enable signal is given after
the time period lapses, a
"Release signal alert"
appears.)
Setting the time for signal
monitoring
Enable calibration timer
Set the calibration interval
The calibration interval is the
time after which a calibration
reminder is displayed (see
Ä Chapter 8.1.3 'Display
elements' on page 29). After
performing a calibration, the
calibration reminder
disappears.
39
Device menu
Explanation
Biocide dosage 1
Time 4
Friday
Biocide dosage 2
Time 1
Friday
Biocide dosage 2
Time 2
Friday
Biocide dosage 1
Time 1
Saturday
Biocide dosage 1
Time 2
Saturday
Biocide dosage 1
Time 3
Saturday
Biocide dosage 1
Time 4
Saturday
Biocide dosage 2
Time 1
Saturday
Biocide dosage 2
Time 2
Saturday
Default
Inactive
0 sec
Inactive
0 sec
Inactive
10 days
417102279 Version 1-09.2019
Default
00:00:00
00:00:00
00:00:00
00:00:00
00:00:00
00:00:00
00:00:00
00:00:00
00:00:00
