7

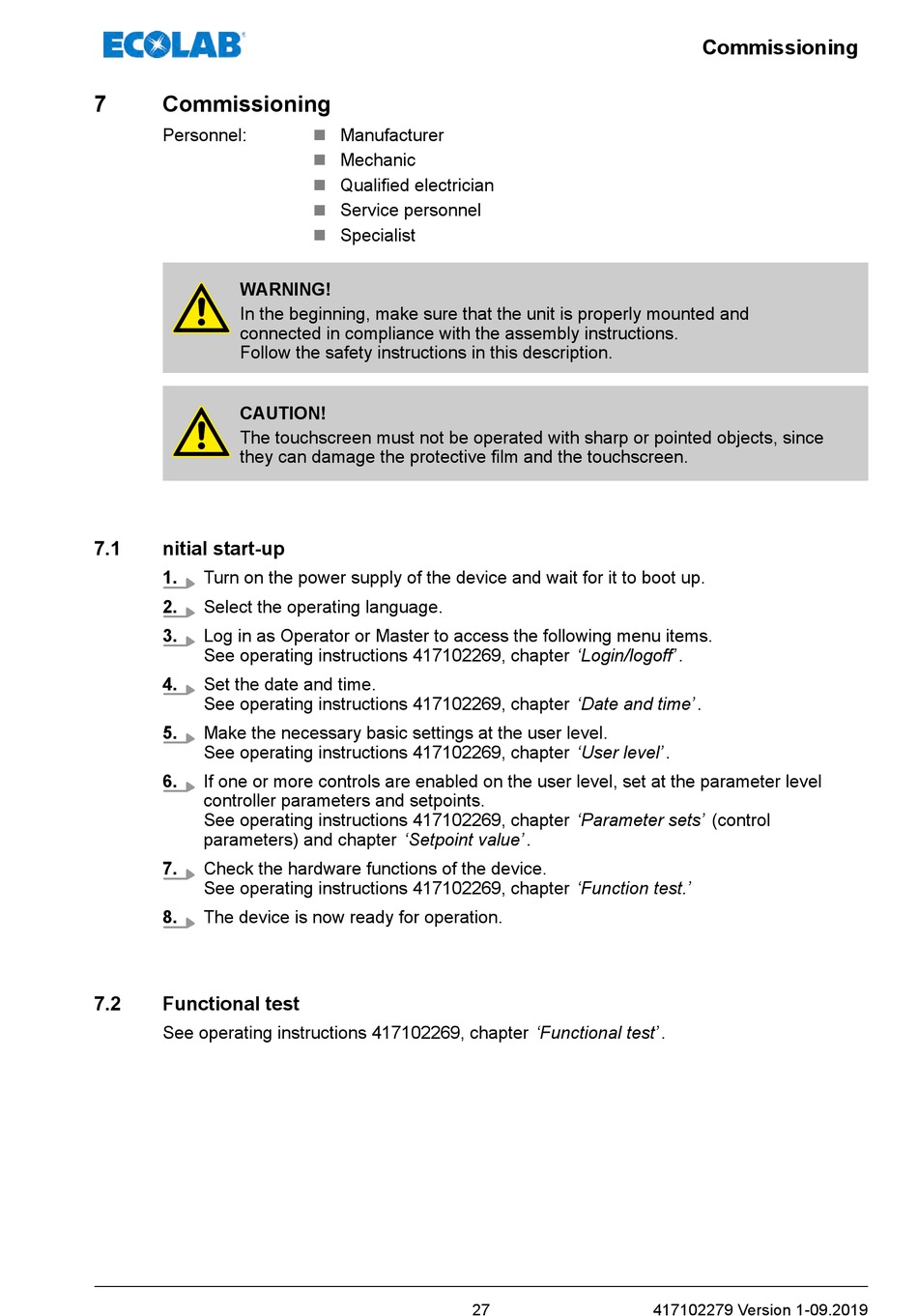

Commissioning

Personnel:
WARNING!
In the beginning, make sure that the unit is properly mounted and
connected in compliance with the assembly instructions.
Follow the safety instructions in this description.
CAUTION!
The touchscreen must not be operated with sharp or pointed objects, since
they can damage the protective film and the touchscreen.
7.1

nitial start-up

1. Turn on the power supply of the device and wait for it to boot up.
2. Select the operating language.
3. Log in as Operator or Master to access the following menu items.
See operating instructions 417102269, chapter 'Login/logoff' .
4. Set the date and time.
See operating instructions 417102269, chapter 'Date and time' .
5. Make the necessary basic settings at the user level.
See operating instructions 417102269, chapter 'User level' .
6. If one or more controls are enabled on the user level, set at the parameter level
controller parameters and setpoints.
See operating instructions 417102269, chapter 'Parameter sets' (control
parameters) and chapter 'Setpoint value' .
7. Check the hardware functions of the device.
See operating instructions 417102269, chapter 'Function test.'
8. The device is now ready for operation.
7.2

Functional test

See operating instructions 417102269, chapter 'Functional test' .
n Manufacturer
n Mechanic
n Qualified electrician
n Service personnel
n Specialist
27
Commissioning
417102279 Version 1-09.2019
