Operating instructions
PP
4.6.1

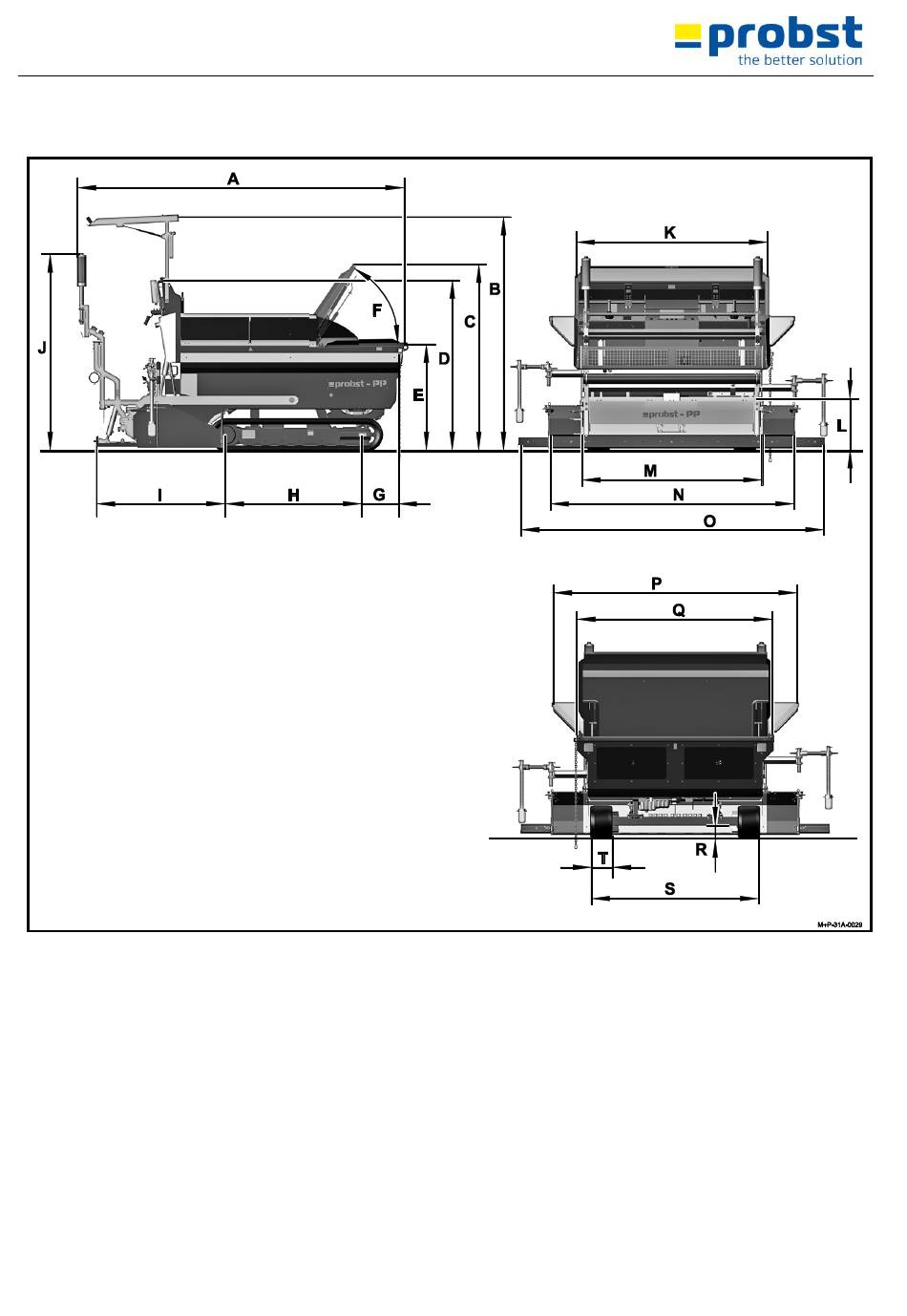

Dimensions
A
Total length
B
Total height
C
Height of the front chute when open
D
Height up to the driver's cab
E
Height up to the hopper
F
Opening angle of the front chute
G
Protrusion at the front starting at the drive
H
Distance between the drive units
I
Distance between rear drive and the main board
J
Height up to the MOBA laser receiver
23 / 70
General information
V1
3665 mm
2623 mm
2089 mm
1930 mm
1172 mm
60°
457 mm
1564 mm
1450 mm
1920 mm
EN
