Operating instructions
PP
5.6.5

Lifting the machine

Risk of personal injury
When raised, the machine is a hazard to people within its vicinity and can cause
injury and even death.

Risk of personal injury and damage to property
Failure to lift the machine without or without suitable lifting gear can lead to
injury and damage.



50 / 70
Operating the machine
Make sure that there are no persons' near the raised machine.
The machine must only be lifted with suitable and adequately dimensioned lifting gear at
the lifting eyes described below.
Suitable lifting gear can be obtained and ordered from Probst.
The stated chain lengths must be observed.
Each of the lifting gear's individual strands of chain and its fastening elements (eyes,
shackles etc.) must be suitable for lifting weights of 2500 kg.

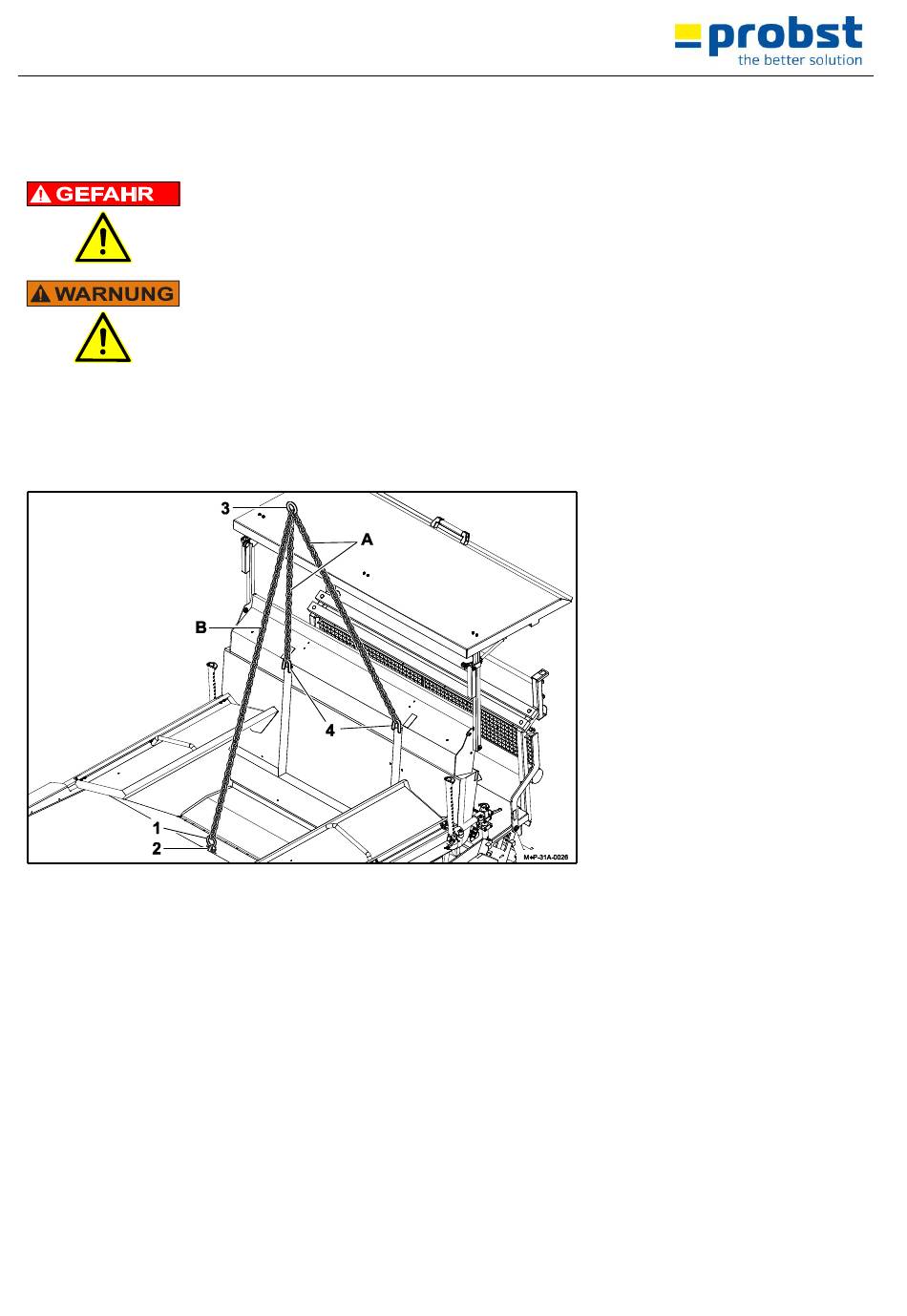

1. If necessary, completely empty the
hopper.
2. Fasten the shackle (1) to the lifting
eye (2).
3. Fasten the lifting gear (3) to the
lifting eyes (2) and (4) as shown.
A
B
4. Lift the machine at the lifting eyes
(2) and (4).
When using lifting gear from another
manufacturer, the shackle (1) must be
secured with a bolt with a diameter of
at least Ø 25 mm.
V1
1700 mm
2000 mm
EN
