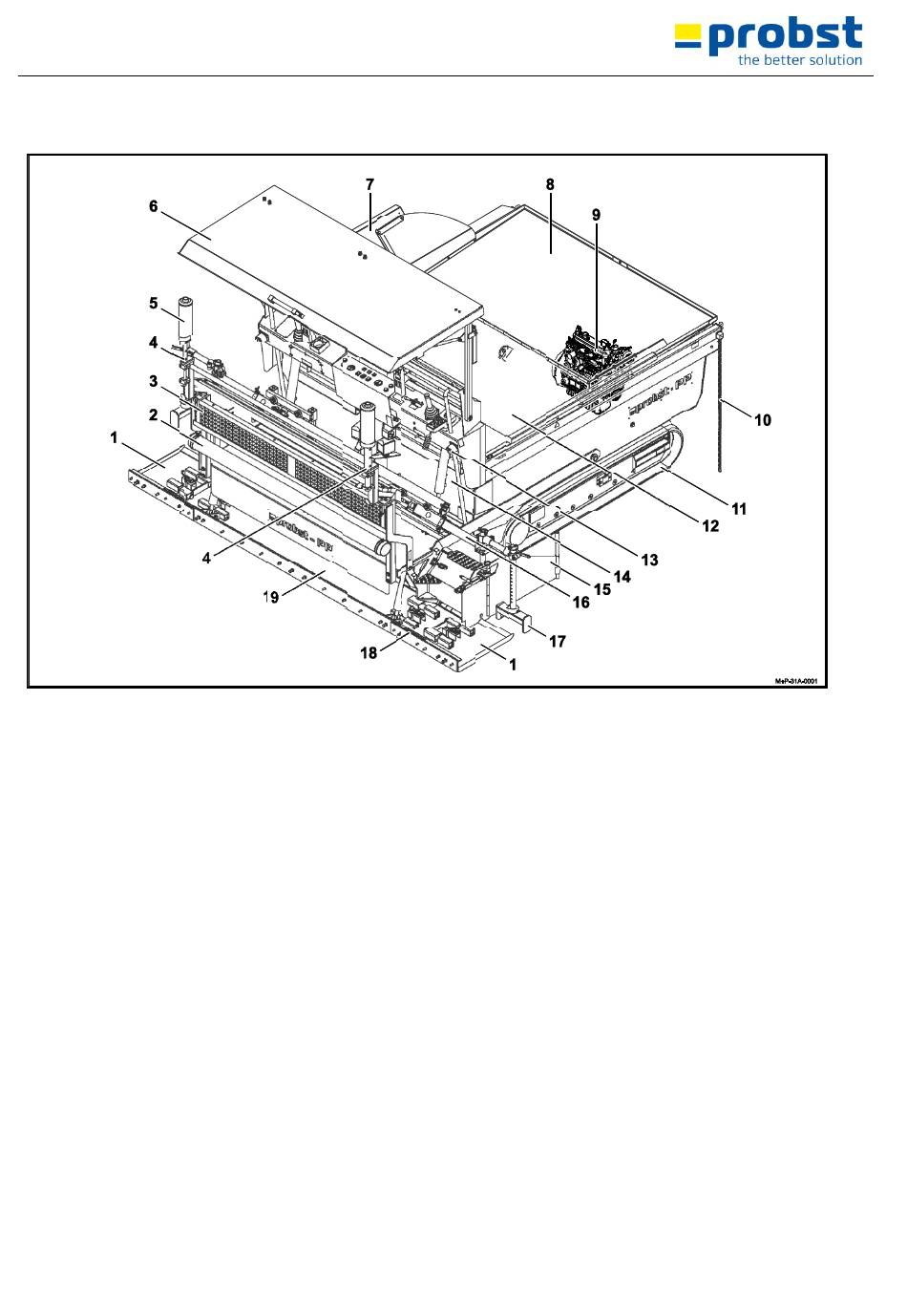

Overview and structure

1 Smoothing board
2 Holder for levelling board, shovel, etc.
3 Measuring bar (folded)
4 Holder for MOBA laser receiver
5 MOBA laser receiver
6 Driver cab roof
7 Sideway extendable chutes
8 Front chute
9 Engine
10 Chain guide (reference)
11 Crawler tracks
12 Hopper
13 EMERGENCY STOP button (3 x)
14 Driver's cab
15 Adjustable panel
16 Linear guide unit
17 Ultrasonic height sensor
18 Spreading board
19 Main board
20 / 70
General information
See "Raising/lowering the smoothing board"
See "Overview of safety symbols and information signs".
See separate operating tips in the section on "Laying and connecting the cable for
the laser receiver".
See separate operating tips in the section on "Laying and connecting the cable for
the laser receiver".
See "Taking down the driver cab roof".
See "Manual control unit".
See "Overview of engine compartment".
See "Chain guide".
See "Maintaining the crawler tracks".
See "Adjusting the adjustable panel".
See separate operating tips in the "Adjusting the ultrasonic height sensors" section.
See separate operating tips in the "Ultrasonic height sensors" section.
See "Fitting the smoothing and spreading board".
See separate operating tips in the "Creating the sub-base" section.
