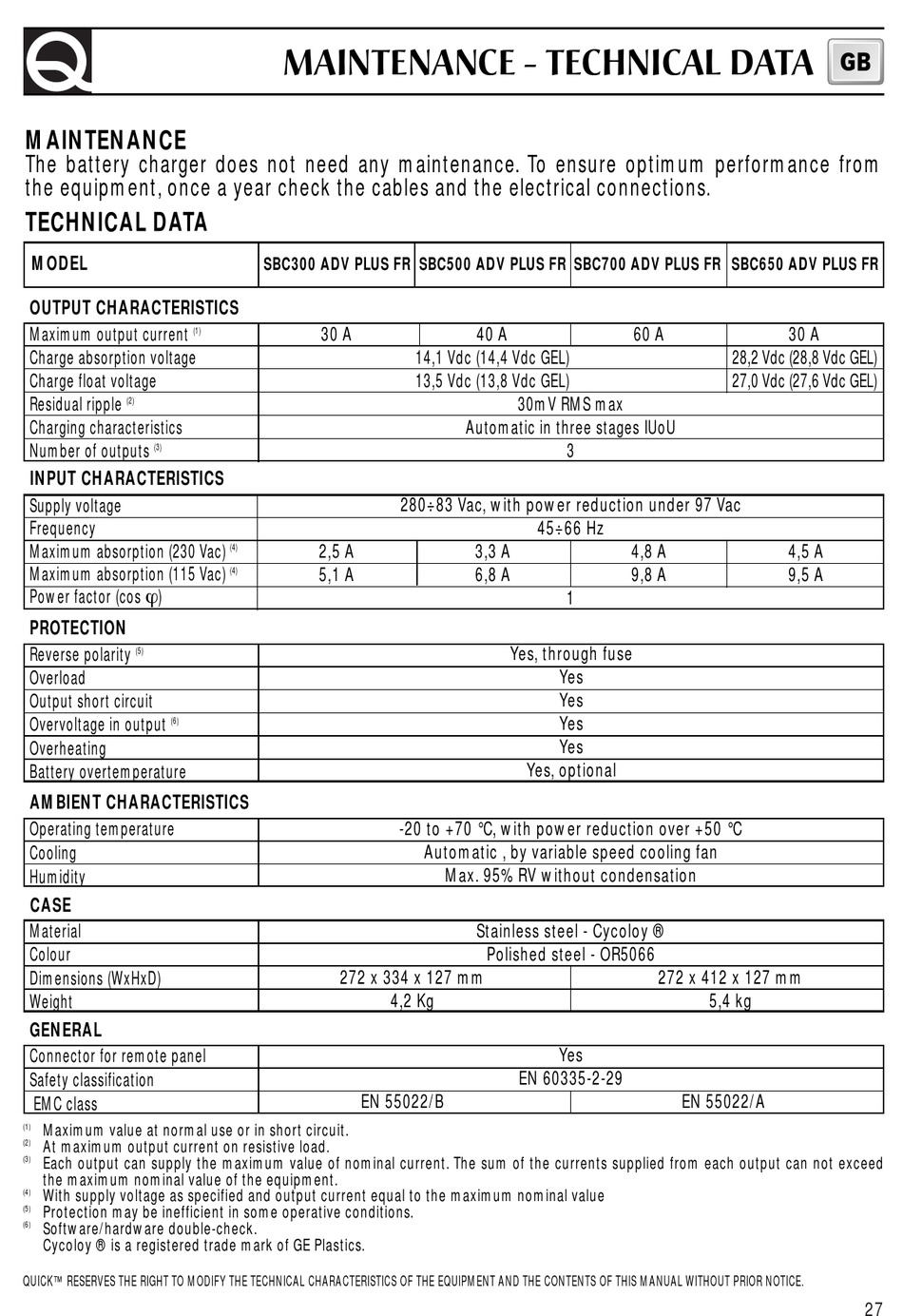

Maintenance - Technical Data - Quick SBC 700 ADV PLUS FR Benutzerhandbuch

MAINTENANCE
The battery charger does not need any maintenance. To ensure optimum performance from
the equipment, once a year check the cables and the electrical connections.
TECHNICAL DATA
MODEL
OUTPUT CHARACTERISTICS
Maximum output current (1)
Charge absorption voltage
Charge float voltage
Residual ripple (2)
Charging characteristics
Number of outputs (3)
INPUT CHARACTERISTICS
Supply voltage
Frequency
Maximum absorption (230 Vac)
Maximum absorption (115 Vac)
ϕ
Power factor (cos )
PROTECTION
Reverse polarity (5)
Overload
Output short circuit
Overvoltage in output (6)
Overheating
Battery overtemperature
AMBIENT CHARACTERISTICS
Operating temperature
Cooling
Humidity
CASE
Material
Colour
Dimensions (WxHxD)
Weight
GENERAL
Connector for remote panel
Safety classification
EMC class
(1) Maximum value at normal use or in short circuit.
(2) At maximum output current on resistive load.
(3) Each output can supply the maximum value of nominal current. The sum of the currents supplied from each output can not exceed
the maximum nominal value of the equipment.
(4) With supply voltage as specified and output current equal to the maximum nominal value
(5) Protection may be inefficient in some operative conditions.
(6) Software/hardware double-check.
Cycoloy ® is a registered trade mark of GE Plastics.
QUICK™ RESERVES THE RIGHT TO MODIFY THE TECHNICAL CHARACTERISTICS OF THE EQUIPMENT AND THE CONTENTS OF THIS MANUAL WITHOUT PRIOR NOTICE.

MAINTENANCE - TECHNICAL DATA

SBC300 ADV PLUS FR SBC500 ADV PLUS FR SBC700 ADV PLUS FR SBC650 ADV PLUS FR
30 A
(4) 2,5 A
(4)
5,1 A
-20 to +70 °C, with power reduction over +50 °C
272 x 334 x 127 mm
4,2 Kg
EN 55022/B
40 A
14,1 Vdc (14,4 Vdc GEL)
13,5 Vdc (13,8 Vdc GEL)
30mV RMS max
Automatic in three stages IUoU
3
280÷83 Vac, with power reduction under 97 Vac
45÷66 Hz
3,3 A
6,8 A
1
Yes, through fuse
Yes
Yes
Yes
Yes
Yes, optional
Automatic , by variable speed cooling fan
Max. 95% RV without condensation
Stainless steel - Cycoloy ®
Polished steel - OR5066
Yes
EN 60335-2-29
60 A 30 A
28,2 Vdc (28,8 Vdc GEL)
27,0 Vdc (27,6 Vdc GEL)
4,8 A 4,5 A
9,8 A 9,5 A
272 x 412 x 127 mm
5,4 kg
EN 55022/A
