OPERATING
GB

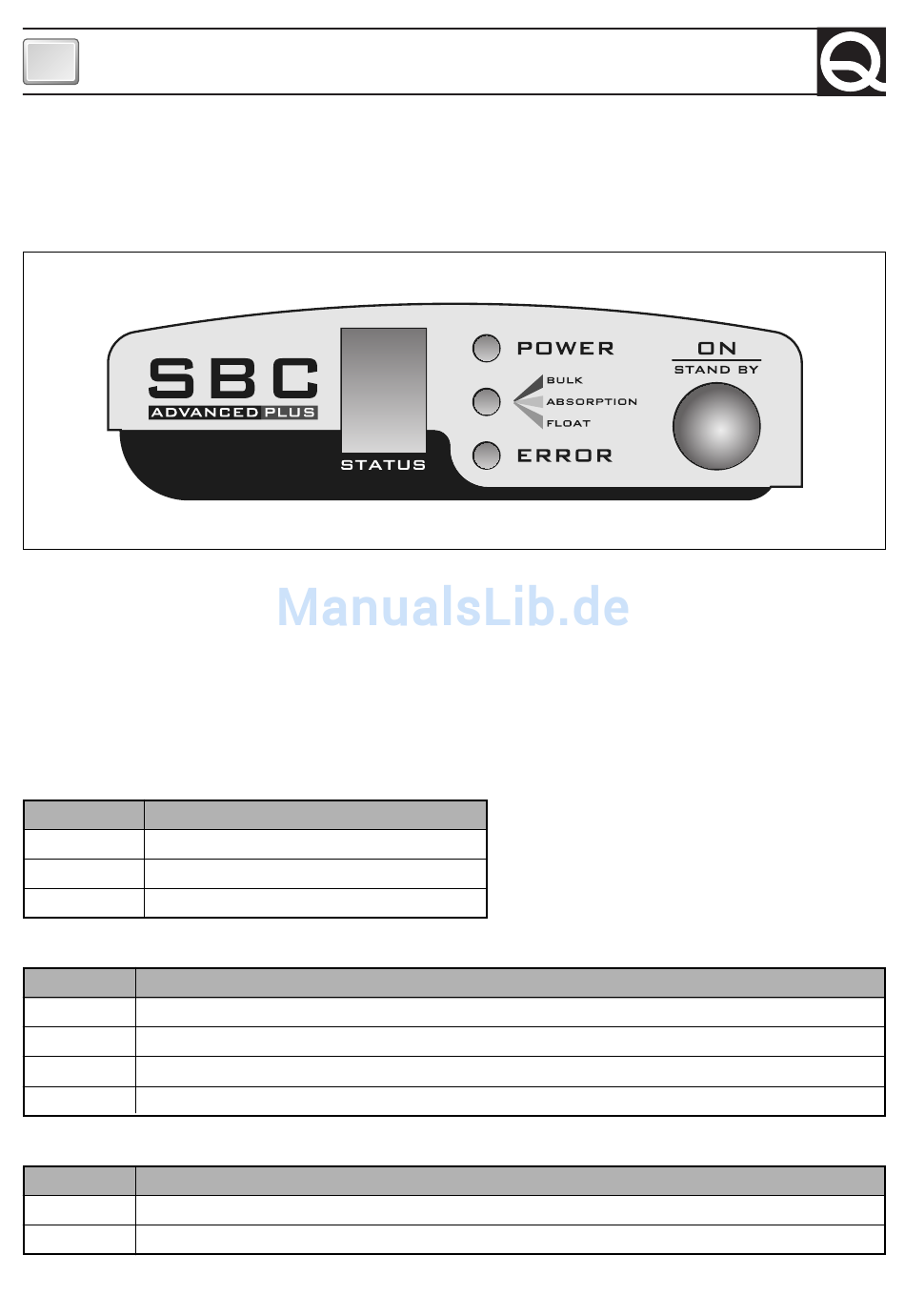

CONTROL PANEL

The control panel is made-up of three LED, a 7 segment display and a button:
POWER LED, CHARGE PHASE LED (BULK, ABSORPTION, FLOAT) ERROR LED, STATUS display
and ON/STAND-BY button (see fig.4).
FIG.4
ON/STAND-BY BUTTON:
Use this button to put the battery charger in stand-by mode. To activate this mode simply
press the button quickly (press and release in less than one second). To take the battery
charger out of stand-by mode, press the button quickly again or disconnect the battery charg-
er from the AC power supply and then connect it up again.
The information supplied by the LEDS are listed as below:
POWER LED
LED colour Description
OFF No mains power
Green Power ON
Flashing Battery charger in stand-by mode
CHARGE PHASE LED
LED Colour Description
OFF No output power
Red BULK phase - charge at constant current
Orange ABSORPTION phase - charge at constant voltage
Green FLOAT phase - float charge
ERROR LED
LED Colour
Description
OFF
No problem with manual reset
Red
Problem with manual reset (see error codes)
22
