EQUIPMENT NECESSARY FOR INSTALLATION
Depending upon model, use the batteries and cables on the output terminals as specified in
the following table:
MODEL
Battery voltage
Battery capacity
Minimum output cable size
The cables connected to the output terminals have a maximum length of 4 metres.
WARNING:
electrolytic batteries or lead/gel (sealed or non-sealed).

INSTALLATION SITE

Install the battery charger in a dry, ventilated place and as near to the batteries as possible.
The battery charger, although having high efficiency, develops a certain amount of heat dur-
ing use, therefore, it is imperative that the installation area has sufficient ventilation, enough
to allow use of the equipment at maximum power.
The battery charger can be installed in a horizontal or vertical position with cables coming
out in the downward position. The vertical position is recommended because the natural
convection of heat helps to cool the equipment. The perimeter of the battery charger (except
the base) must be kept at a distance from walls or objects by a minimum of 5 cm.
PART. B
CHARACTERISTICS AND INSTALLATION
SBC 300 ADV PLUS FR SBC 500 ADV PLUS FR SBC 700 ADV PLUS FR SBC 650 ADV PLUS FR
140 ÷ 300 Ah
10 mm 2
the battery charger must be used only with re-chargeable lead/liquid
12 V
180 ÷ 400 Ah 270 ÷ 600 Ah
16 mm 2
PART. A
140 ÷ 300 Ah
25 mm 2 10 mm

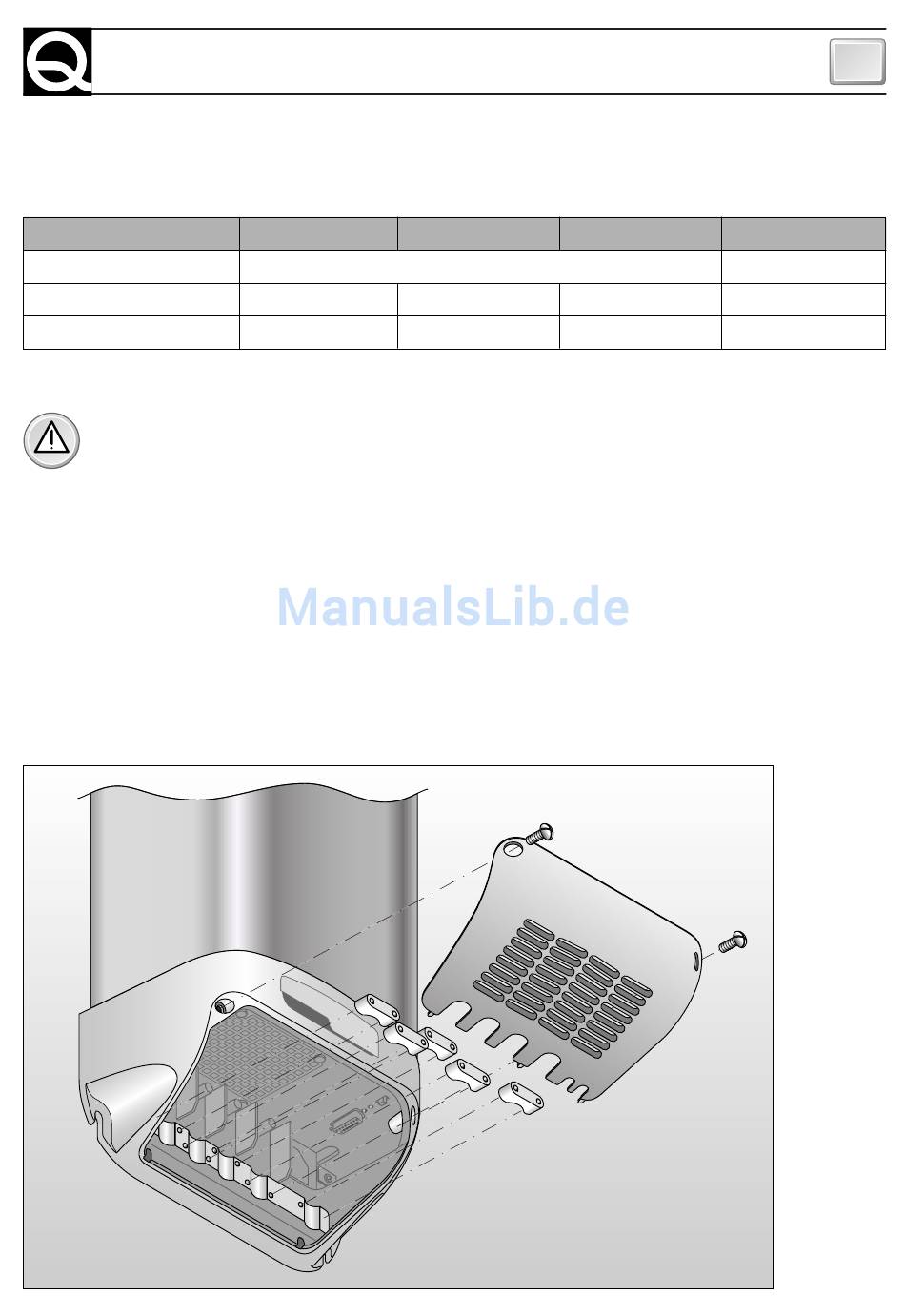

FIG.1
