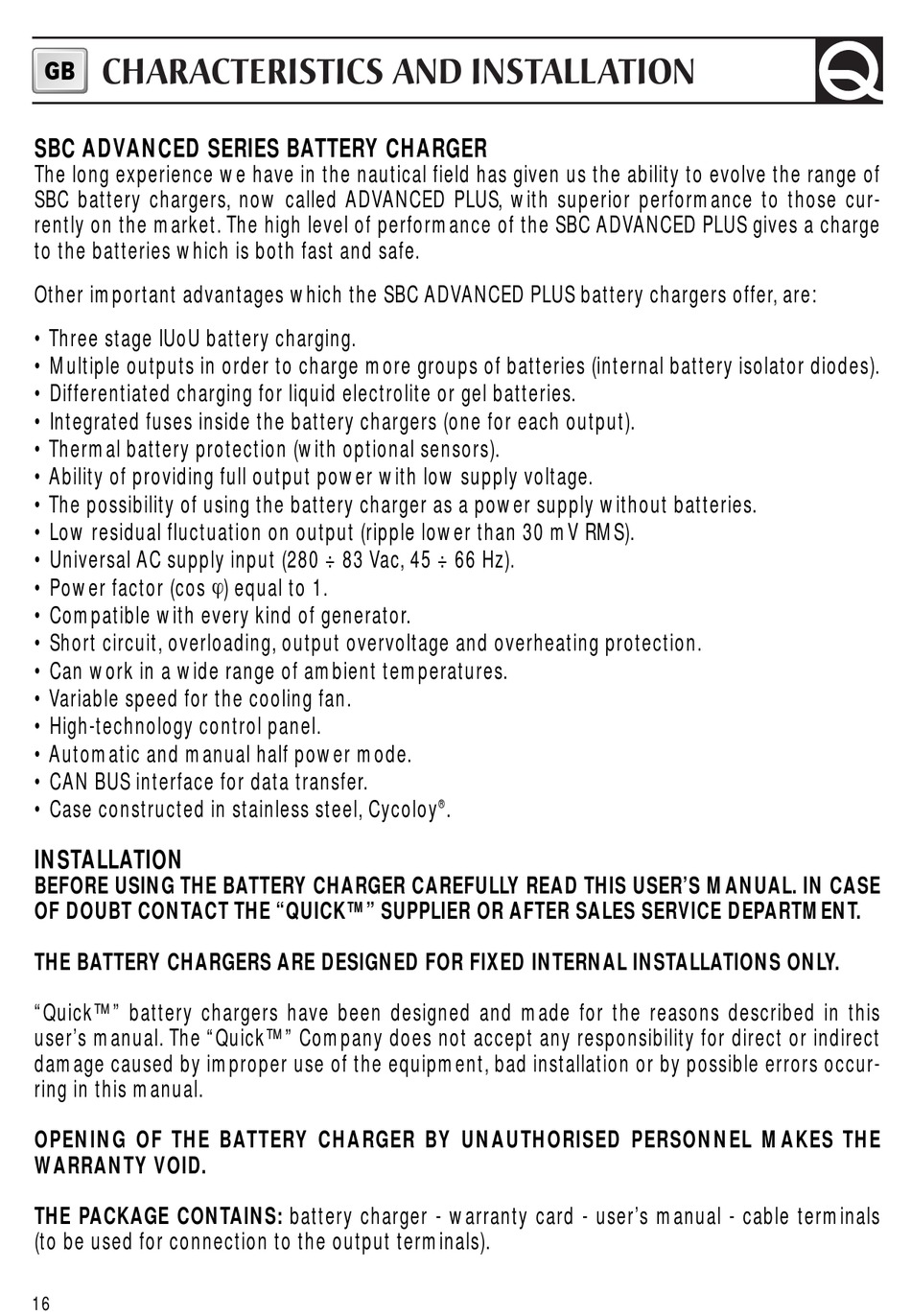

CHARACTERISTICS AND INSTALLATION
GB
SBC ADVANCED SERIES BATTERY CHARGER
The long experience we have in the nautical field has given us the ability to evolve the range of
SBC battery chargers, now called ADVANCED PLUS, with superior performance to those cur-
rently on the market. The high level of performance of the SBC ADVANCED PLUS gives a charge
to the batteries which is both fast and safe.
Other important advantages which the SBC ADVANCED PLUS battery chargers offer, are:
• Three stage IUoU battery charging.
• Multiple outputs in order to charge more groups of batteries (internal battery isolator diodes).
• Differentiated charging for liquid electrolite or gel batteries.
• Integrated fuses inside the battery chargers (one for each output).
• Thermal battery protection (with optional sensors).
• Ability of providing full output power with low supply voltage.
• The possibility of using the battery charger as a power supply without batteries.
• Low residual fluctuation on output (ripple lower than 30 mV RMS).
• Universal AC supply input (280 ÷ 83 Vac, 45 ÷ 66 Hz).
• Power factor (cos ϕ ) equal to 1.
• Compatible with every kind of generator.
• Short circuit, overloading, output overvoltage and overheating protection.
• Can work in a wide range of ambient temperatures.
• Variable speed for the cooling fan.
• High-technology control panel.
• Automatic and manual half power mode.
• CAN BUS interface for data transfer.
• Case constructed in stainless steel, Cycoloy .
®
INSTALLATION
BEFORE USING THE BATTERY CHARGER CAREFULLY READ THIS USER'S MANUAL. IN CASE
OF DOUBT CONTACT THE "QUICK™" SUPPLIER OR AFTER SALES SERVICE DEPARTMENT.
THE BATTERY CHARGERS ARE DESIGNED FOR FIXED INTERNAL INSTALLATIONS ONLY.
"Quick™" battery chargers have been designed and made for the reasons described in this
user's manual. The "Quick™" Company does not accept any responsibility for direct or indirect
damage caused by improper use of the equipment, bad installation or by possible errors occur-
ring in this manual.
OPENING OF THE BATTERY CHARGER BY UNAUTHORISED PERSONNEL MAKES THE
WARRANTY VOID.
THE PACKAGE CONTAINS: battery charger - warranty card - user's manual - cable terminals
(to be used for connection to the output terminals).
