INSTALLATION
GB
EQUIPMENT SUPPLY
The equipment already includes a power cable for AC supply. For connections to an AC supply
see fig.2. Before powering up the battery charger check that the power supply voltage, de-
scribed on the rating label, corresponds to that supplied by the AC supply source.
A 2 pole switch must be installed in the electrical circuit for the sole use of switching the
equipment ON & OFF. The insulation between the contact points of the connections of the AC
supply must be at least 3 mm. The connections to the AC supply must be carried out according
to local electrical codes.
WARNING: before connecting or disconnecting the cables from the electrical terminals of
the battery charger, make sure that the equipment is disconnected from the AC mains and
the batteries.
WARNING: in cases where the power supply cable could be damaged, have this
changed by a "Quick™" service centre. In order to avoid accidents, the equipment must
only be opened by authorised personnel.

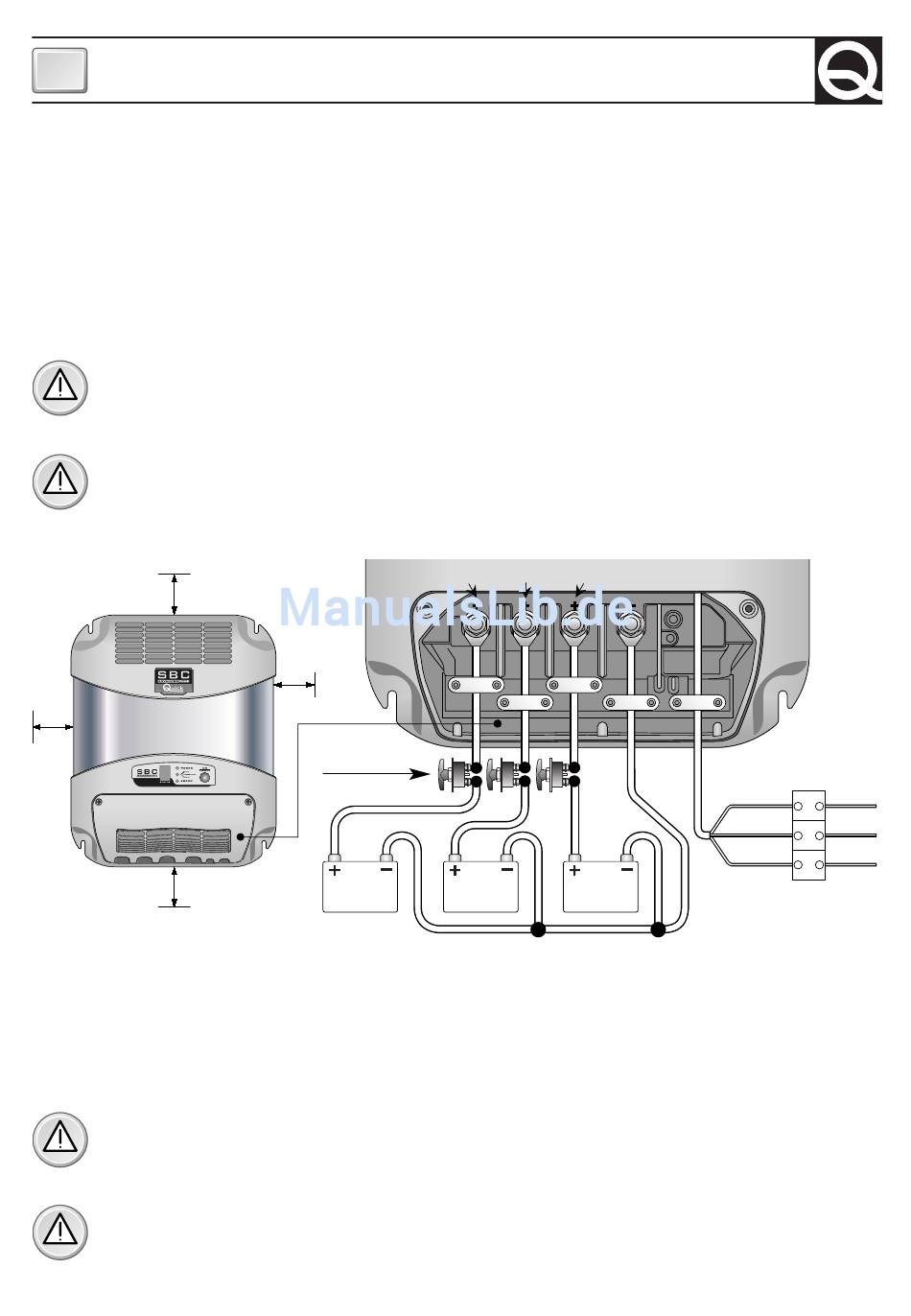

FIG.2
5 cm
5 cm
5 cm
BATTERIES
To access the output terminals it is necessary to remove the cover by loosening the two screws
which hold it on (see fig. 1 Part A). Before making the connections to the cables from the battery,
loosen or remove the cable clamps by loosening the screws which fix it to the base (Fig.1 Part B).
WARNING: during charge, batteries can generate explosive gases, therefore avoid sparks or
naked flames. Provide adequate ventilation to the battery area whilst charging.
WARNING: before connecting the batteries check the terminals of the cables from the
battery. Reversing the terminals, could seriously damage the battery charger even if pro-
tected by fuses.
18
SLAVE B
5 cm
Battery switches
battery
n° 3
MASTER
SLAVE A
battery battery
n° 2 n° 1
Neutral
Blue
Earth
Yellow
Green
Live
Brown
