HALF-POWER MODE
If the supply voltage of the equipment drops under 195 Vac (97 Vac for SBC 1100 PLUS FR) the battery charger will activate
the "half power" mode.
In this mode the battery charger can supply, a maximum value half of the maximum nominal output current. In this way you
can reduce the current absorption from the AC supply.
This feature is useful when the battery charger is supplied via a generator or from a berth socket with limited power.
The half power mode can be activated manually by using the RCM 1620 remote command.

CONTROL PANEL

The control panel is made-up of three LED, a 7 segment display and a button:
POWER LED, CHARGE PHASE LED (BULK, ABSORPTION, FLOAT) ERROR LED, STATUS display
and ON/STAND-BY button (see fig.4).

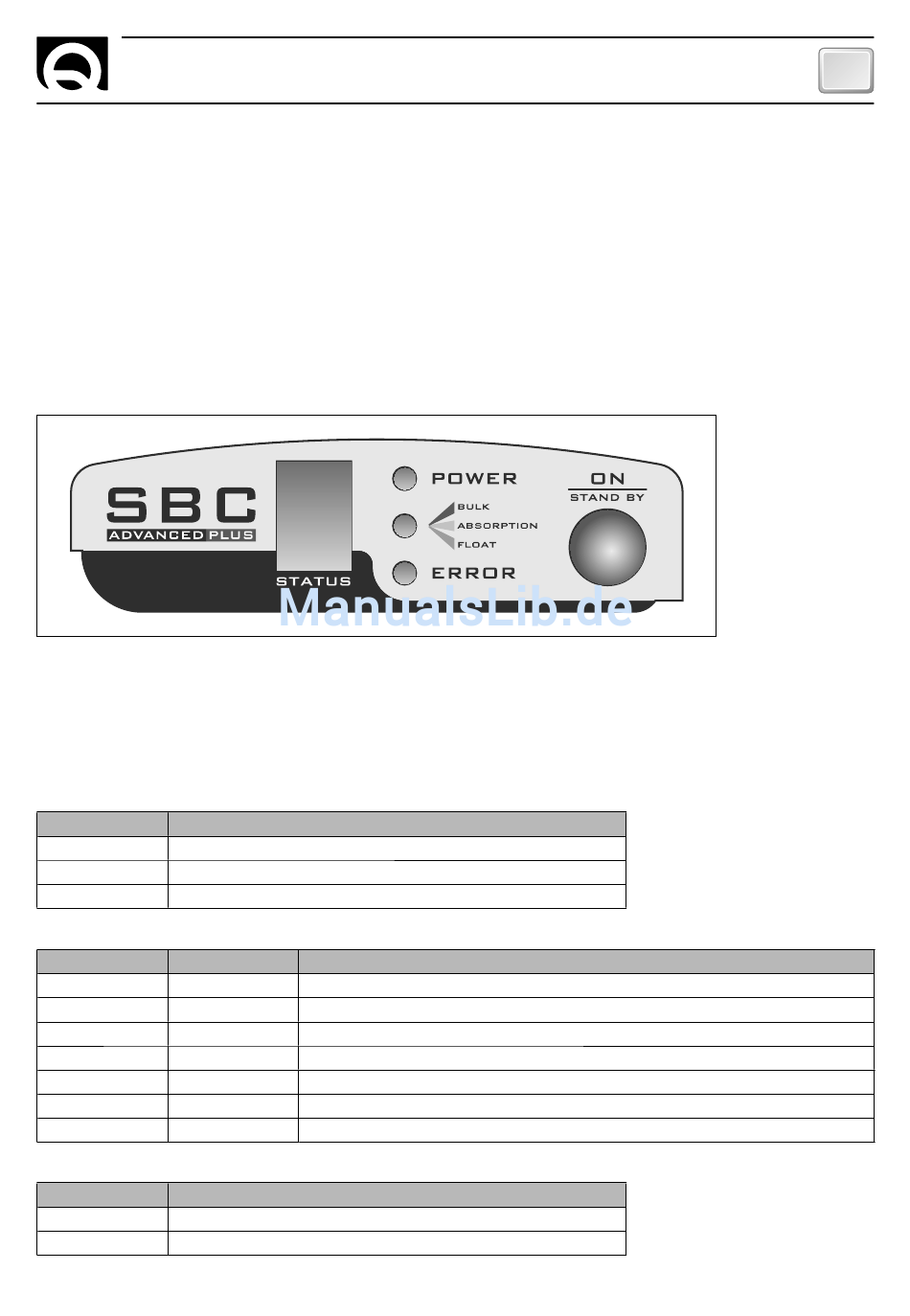

FIG.4
ON/STAND-BY BUTTON:
Use this button to put the battery charger in stand-by mode. To activate this mode simply press and release the button
quickly (press and release in less than one second). To take the battery charger out of stand-by mode, press the button
quickly again or disconnect the battery charger from the AC power supply and then connect it up again.
The information supplied by the LEDS are listed as below:
POWER LED
LED COLOUR DESCRIPTION
OFF No mains power
Power on
GREEN
Battery charger in stand-by mode
FLASHING
CHARGE PHASE LED (BULK, ABSORPTION, FLOAT)
LED COLOUR LED STATUS
OFF
RED
ORANGE
GREEN
RED FLASHING
ORANGE FLASHING
GREEN FLASHING
ERROR LED
LED COLOUR DESCRIPTION
No problem with manual reset
OFF
RED Problem with manual reset (see error codes)
SBC ADVANCED PLUS HI-POWER - REV004A
DESCRIPTION
- No output power
FIXED BULK PHASE - charge at constant current
FIXED ABSORPTION PHASE - charge at constant voltage
FIXED FLOAT PHASE - float charge
BULK PHASE - charge at constant current - digital control of the parallel units on
ABSORPTION PHASE - charge at constant voltage - digital control of the parallel units on
FASE FLOAT - float charge - digital control of the parallel units on
OPERATING
