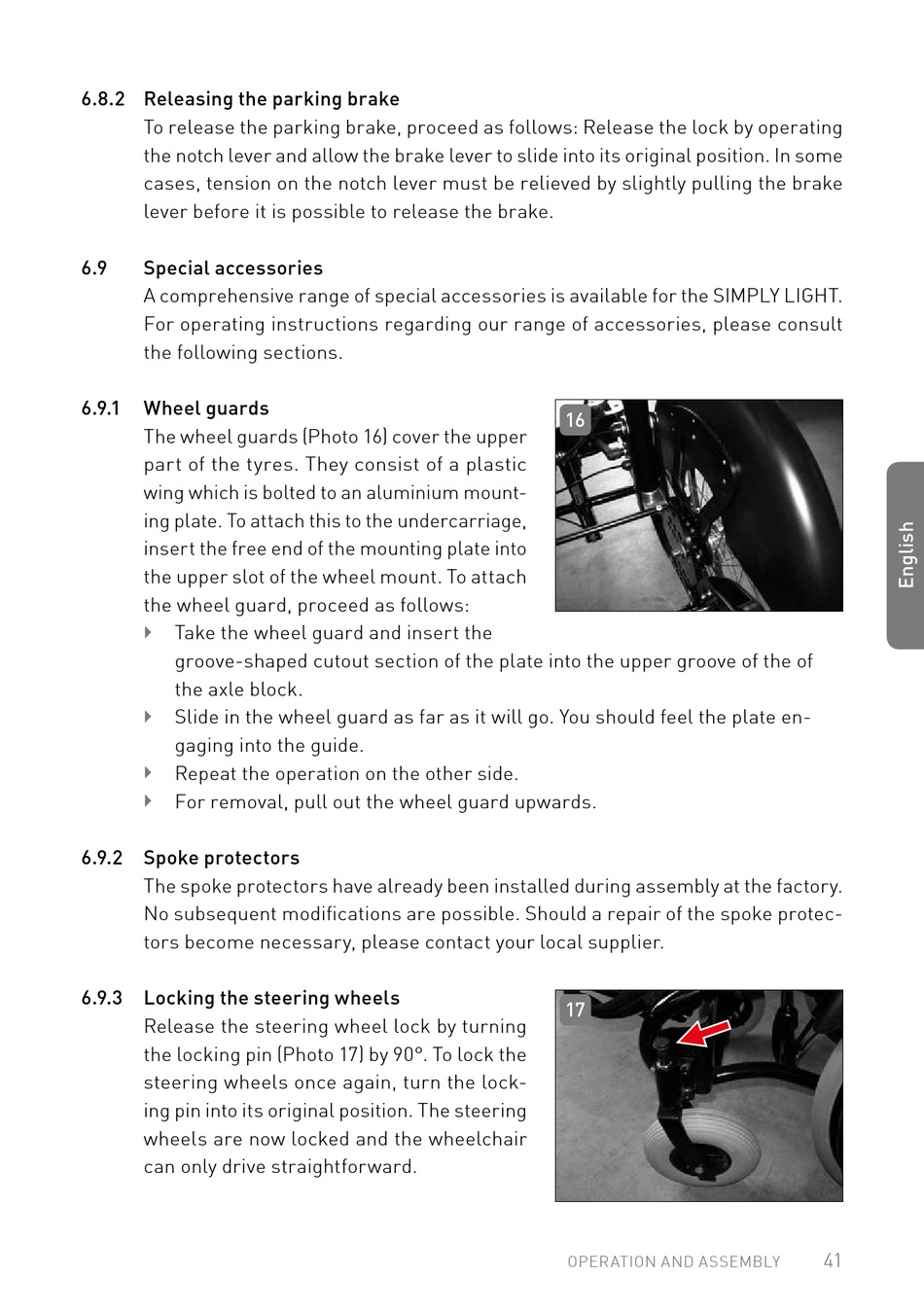

6.8.2 Releasing the parking brake
To release the parking brake, proceed as follows: Release the lock by operating
the notch lever and allow the brake lever to slide into its original position� In some
cases, tension on the notch lever must be relieved by slightly pulling the brake
lever before it is possible to release the brake�
6.9 Special accessories
A comprehensive range of special accessories is available for the SIMPLY LIGHT�
For operating instructions regarding our range of accessories, please consult
the following sections�
6.9.1 Wheel guards
The wheel guards (Photo 16) cover the upper
part of the tyres� They consist of a plastic
wing which is bolted to an aluminium mount-
ing plate� To attach this to the undercarriage,
insert the free end of the mounting plate into
the upper slot of the wheel mount� To attach
the wheel guard, proceed as follows:
Take the wheel guard and insert the

groove-shaped cutout section of the plate into the upper groove of the of
the axle block�
Slide in the wheel guard as far as it will go� You should feel the plate en-

gaging into the guide�
Repeat the operation on the other side�

For removal, pull out the wheel guard upwards�

6.9.2 Spoke protectors
The spoke protectors have already been installed during assembly at the factory�
No subsequent modifications are possible� Should a repair of the spoke protec-
tors become necessary, please contact your local supplier�
6.9.3 Locking the steering wheels
Release the steering wheel lock by turning
the locking pin (Photo 17) by 90°� To lock the
steering wheels once again, turn the lock-
ing pin into its original position� The steering
wheels are now locked and the wheelchair
can only drive straightforward�
