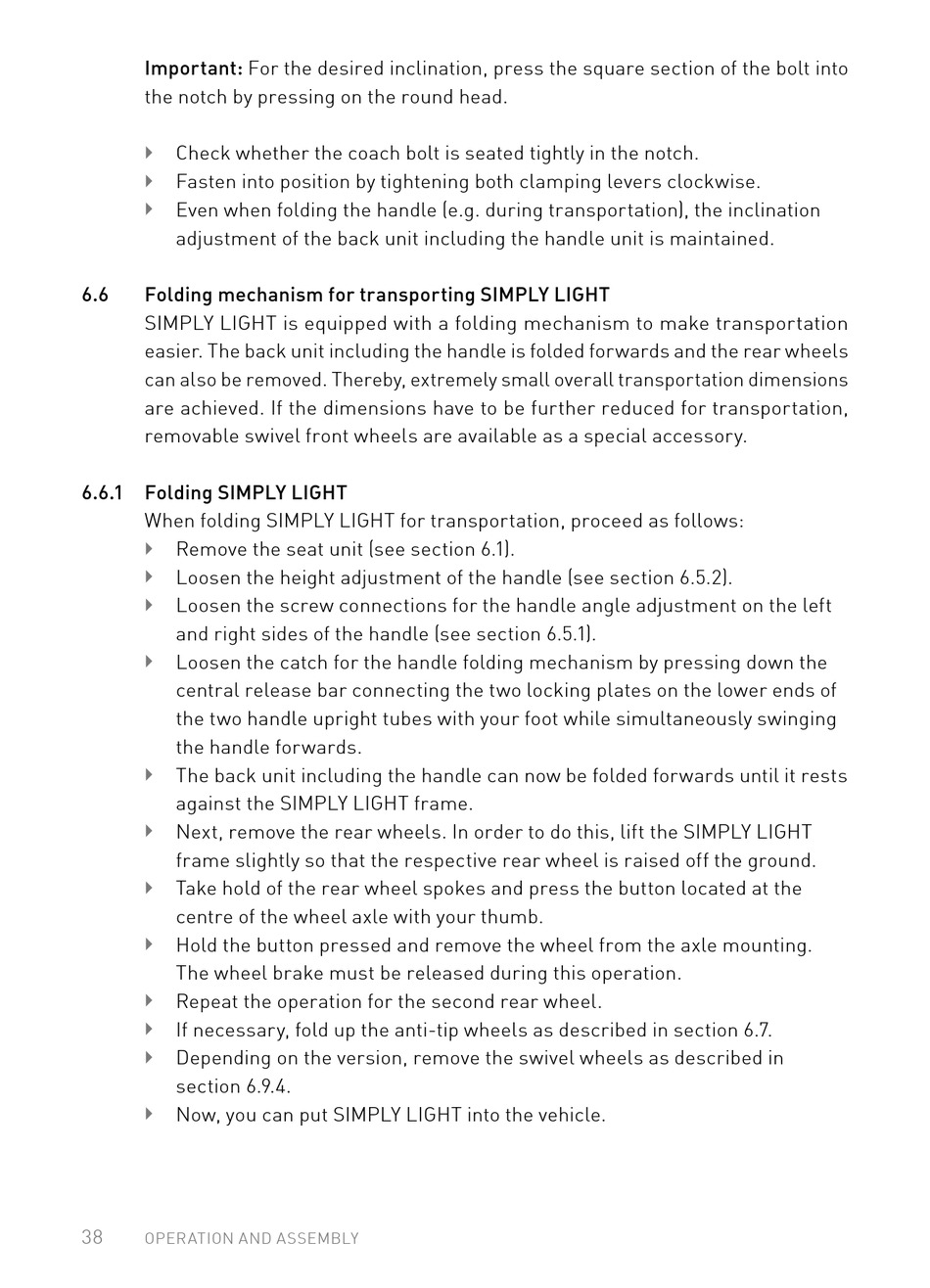

Important: For the desired inclination, press the square section of the bolt into
the notch by pressing on the round head�
Check whether the coach bolt is seated tightly in the notch�

Fasten into position by tightening both clamping levers clockwise�

Even when folding the handle (e�g� during transportation), the inclination

adjustment of the back unit including the handle unit is maintained�
6.6 F olding mechanism for transporting SIMPLY LIGHT
SIMPLY LIGHT is equipped with a folding mechanism to make transportation
easier� The back unit including the handle is folded forwards and the rear wheels
can also be removed� Thereby, extremely small overall transportation dimensions
are achieved� If the dimensions have to be further reduced for transportation,
removable swivel front wheels are available as a special accessory�
6.6.1 Folding SIMPLY LIGHT
When folding SIMPLY LIGHT for transportation, proceed as follows:
Remove the seat unit (see section 6�1)�

Loosen the height adjustment of the handle (see section 6�5�2)�

Loosen the screw connections for the handle angle adjustment on the left

and right sides of the handle (see section 6�5�1)�
Loosen the catch for the handle folding mechanism by pressing down the

central release bar connecting the two locking plates on the lower ends of
the two handle upright tubes with your foot while simultaneously swinging
the handle forwards�
The back unit including the handle can now be folded forwards until it rests

against the SIMPLY LIGHT frame�
Next, remove the rear wheels� In order to do this, lift the SIMPLY LIGHT

frame slightly so that the respective rear wheel is raised off the ground�
Take hold of the rear wheel spokes and press the button located at the

centre of the wheel axle with your thumb�
Hold the button pressed and remove the wheel from the axle mounting�

The wheel brake must be released during this operation�
Repeat the operation for the second rear wheel�

If necessary, fold up the anti-tip wheels as described in section 6�7�

Depending on the version, remove the swivel wheels as described in

s ection 6�9�4�
Now, you can put SIMPLY LIGHT into the vehicle�

38
OPERATION AND ASSEMBLY
