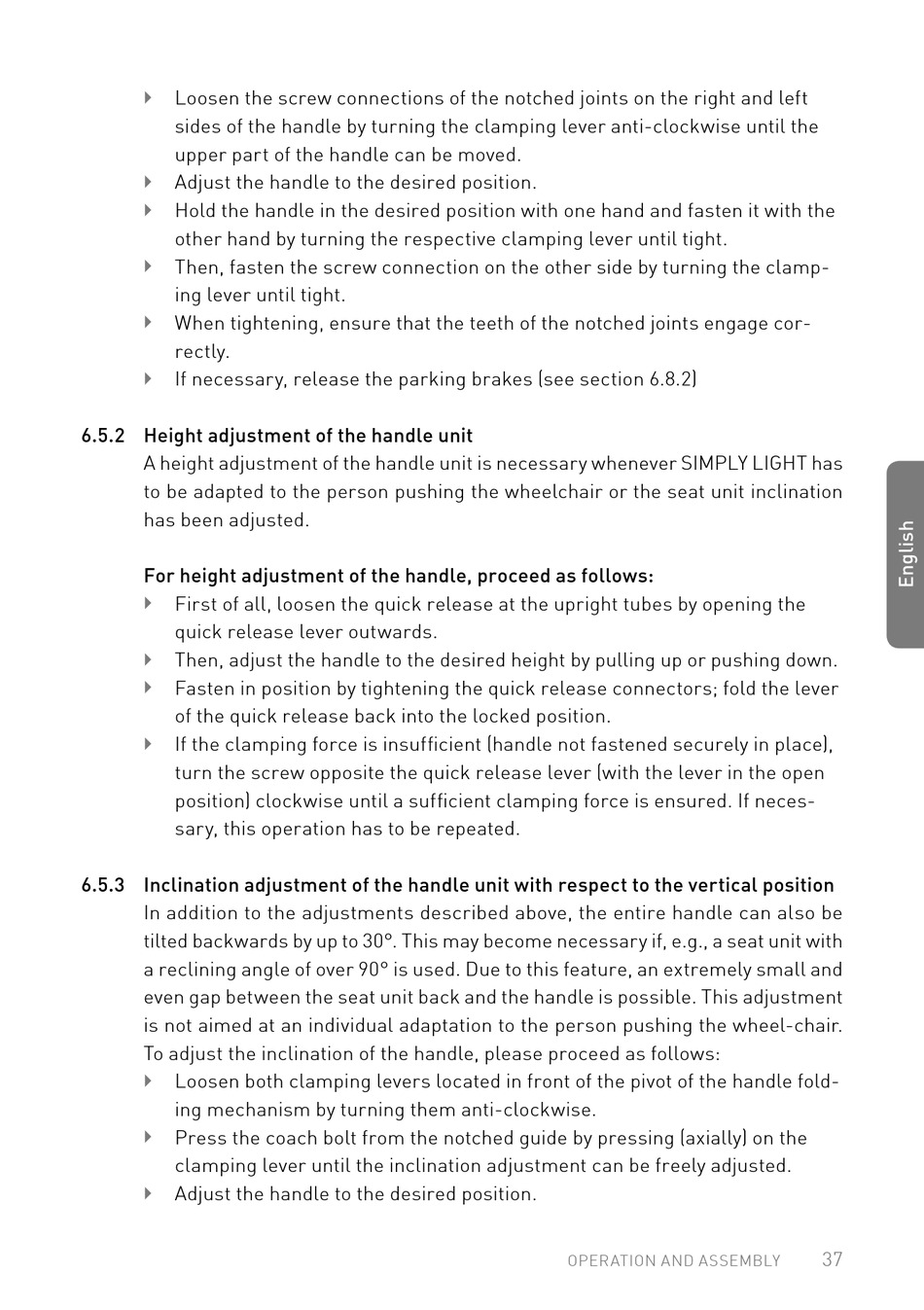

Loosen the screw connections of the notched joints on the right and left

sides of the handle by turning the clamping lever anti-clockwise until the
upper part of the handle can be moved�
Adjust the handle to the desired position�

Hold the handle in the desired position with one hand and fasten it with the

other hand by turning the respective clamping lever until tight�
Then, fasten the screw connection on the other side by turning the clamp-

ing lever until tight�
When tightening, ensure that the teeth of the notched joints engage cor-

rectly�
If necessary, release the parking brakes (see section 6�8�2)

6.5.2 Height adjustment of the handle unit
A height adjustment of the handle unit is necessary whenever SIMPLY LIGHT has
to be adapted to the person pushing the wheelchair or the seat unit inclination
has been adjusted�
For height adjustment of the handle, proceed as follows:
First of all, loosen the quick release at the upright tubes by opening the

quick release lever outwards�
Then, adjust the handle to the desired height by pulling up or pushing down�

Fasten in position by tightening the quick release connectors; fold the lever

of the quick release back into the locked position�
If the clamping force is insufficient (handle not fastened securely in place),

turn the screw opposite the quick release lever (with the lever in the open
position) clockwise until a sufficient clamping force is ensured� If neces-
sary, this operation has to be repeated�
6.5.3 I nclination adjustment of the handle unit with respect to the vertical position
In addition to the adjustments described above, the entire handle can also be
tilted backwards by up to 30°� This may become necessary if, e�g�, a seat unit with
a reclining angle of over 90° is used� Due to this feature, an extremely small and
even gap between the seat unit back and the handle is possible� This adjustment
is not aimed at an individual adaptation to the person pushing the wheel-chair�
To adjust the inclination of the handle, please proceed as follows:
Loosen both clamping levers located in front of the pivot of the handle fold-

ing mechanism by turning them anti-clockwise�
Press the coach bolt from the notched guide by pressing (axially) on the

clamping lever until the inclination adjustment can be freely adjusted�
Adjust the handle to the desired position�

