Troubleshooting - Scheppach 1901501901 Originalbetriebsanleitung

Problem Possible Cause
Fastening nut tightened insufficiently
Saw blade gets loose
after turning off the
motor
Motor does not start a) Fastening nut tightened insufficiently
b) Extension cable defect
c) Connections on the motor or switch defect
No motor output turns Overload by dull saw blade, thermoprotec-
off automatically tion is triggered
Burns on the cutting a) Fastening nut tightened insufficiently
surface b) Wrong saw blade
c) with longitudinal c) Longitudinal stop not parallel
cuts
d) with cross cuts d) Slide carriage not parallel
20 І 120
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58

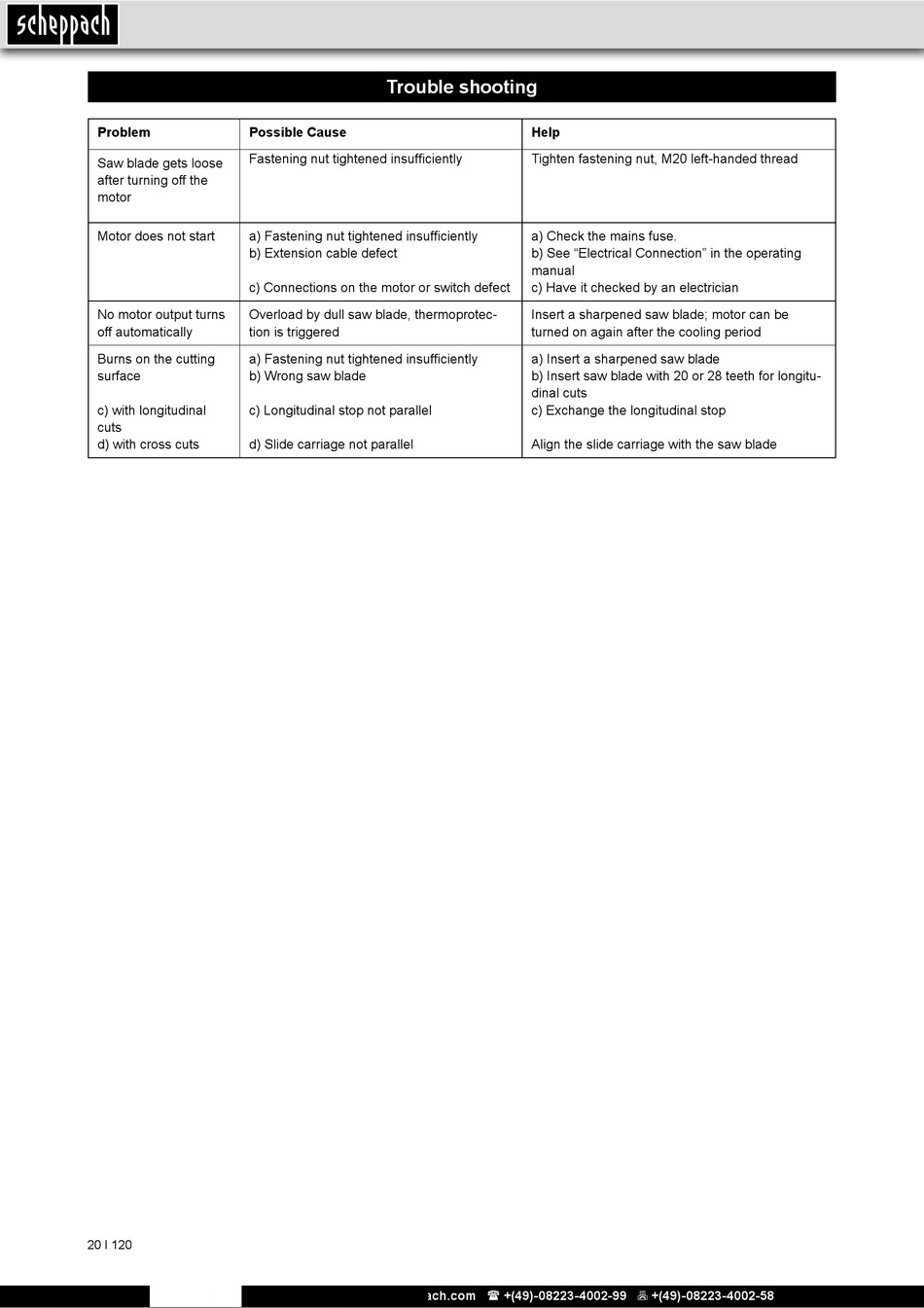

Trouble shooting
Help
Tighten fastening nut, M20 left-handed thread
a) Check the mains fuse.
b) See "Electrical Connection" in the operating
manual
c) Have it checked by an electrician
Insert a sharpened saw blade; motor can be
turned on again after the cooling period
a) Insert a sharpened saw blade
b) Insert saw blade with 20 or 28 teeth for longitu-
dinal cuts
c) Exchange the longitudinal stop
Align the slide carriage with the saw blade
