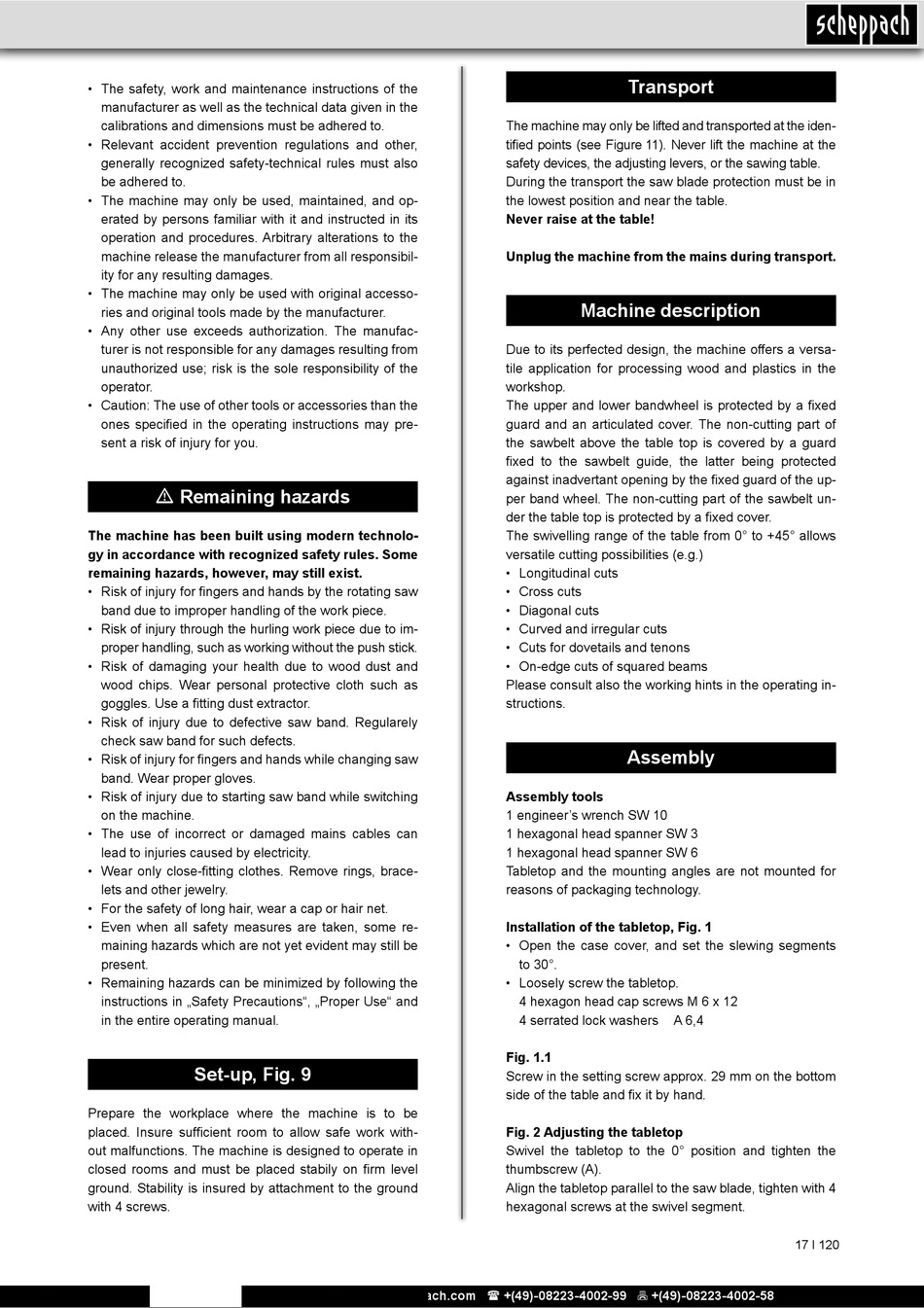

• The safety, work and maintenance instructions of the
manufacturer as well as the technical data given in the
calibrations and dimensions must be adhered to.
• Relevant accident prevention regulations and other,
generally recognized safety-technical rules must also
be adhered to.
• The machine may only be used, maintained, and op-
erated by persons familiar with it and instructed in its
operation and procedures. Arbitrary alterations to the
machine release the manufacturer from all responsibil-
ity for any resulting damages.
• The machine may only be used with original accesso-
ries and original tools made by the manufacturer.
• Any other use exceeds authorization. The manufac-
turer is not responsible for any damages resulting from
unauthorized use; risk is the sole responsibility of the
operator.
• Caution: The use of other tools or accessories than the
ones specified in the operating instructions may pre-
sent a risk of injury for you.
m Remaining hazards
The machine has been built using modern technolo-
gy in accordance with recognized safety rules. Some
remaining hazards, however, may still exist.
• Risk of injury for fingers and hands by the rotating saw
band due to improper handling of the work piece.
• Risk of injury through the hurling work piece due to im-
proper handling, such as working without the push stick.
• Risk of damaging your health due to wood dust and
wood chips. Wear personal protective cloth such as
goggles. Use a fitting dust extractor.
• Risk of injury due to defective saw band. Regularely
check saw band for such defects.
• Risk of injury for fingers and hands while changing saw
band. Wear proper gloves.
• Risk of injury due to starting saw band while switching
on the machine.
• The use of incorrect or damaged mains cables can
lead to injuries caused by electricity.
• Wear only close-fitting clothes. Remove rings, brace-
lets and other jewelry.
• For the safety of long hair, wear a cap or hair net.
• Even when all safety measures are taken, some re-
maining hazards which are not yet evident may still be
present.
• Remaining hazards can be minimized by following the
instructions in „Safety Precautions", „Proper Use" and
in the entire operating manual.
Set-up, Fig. 9
Prepare the workplace where the machine is to be
placed. Insure sufficient room to allow safe work with-
out malfunctions. The machine is designed to operate in
closed rooms and must be placed stabily on firm level
ground. Stability is insured by attachment to the ground
with 4 screws.
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58  www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58  www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
Transport
The machine may only be lifted and transported at the iden-
tified points (see Figure 11). Never lift the machine at the
safety devices, the adjusting levers, or the sawing table.
During the transport the saw blade protection must be in
the lowest position and near the table.
Never raise at the table!
Unplug the machine from the mains during transport.

Machine description

Due to its perfected design, the machine offers a versa-
tile application for processing wood and plastics in the
workshop.
The upper and lower bandwheel is protected by a fixed
guard and an articulated cover. The non-cutting part of
the sawbelt above the table top is covered by a guard
fixed to the sawbelt guide, the latter being protected
against inadvertant opening by the fixed guard of the up-
per band wheel. The non-cutting part of the sawbelt un-
der the table top is protected by a fixed cover.
The swivelling range of the table from 0° to +45° allows
versatile cutting possibilities (e.g.)
• Longitudinal cuts
• Cross cuts
• Diagonal cuts
• Curved and irregular cuts
• Cuts for dovetails and tenons
• On-edge cuts of squared beams
Please consult also the working hints in the operating in-
structions.
Assembly
Assembly tools
1 engineer's wrench SW 10
1 hexagonal head spanner SW 3
1 hexagonal head spanner SW 6
Tabletop and the mounting angles are not mounted for
reasons of packaging technology.
Installation of the tabletop, Fig. 1
• Open the case cover, and set the slewing segments
to 30°.
• Loosely screw the tabletop.
4 hexagon head cap screws M 6 x 12
4 serrated lock washers A 6,4
Fig. 1.1
Screw in the setting screw approx. 29 mm on the bottom
side of the table and fix it by hand.
Fig. 2 Adjusting the tabletop
Swivel the tabletop to the 0° position and tighten the
thumbscrew (A).
Align the tabletop parallel to the saw blade, tighten with 4
hexagonal screws at the swivel segment.
