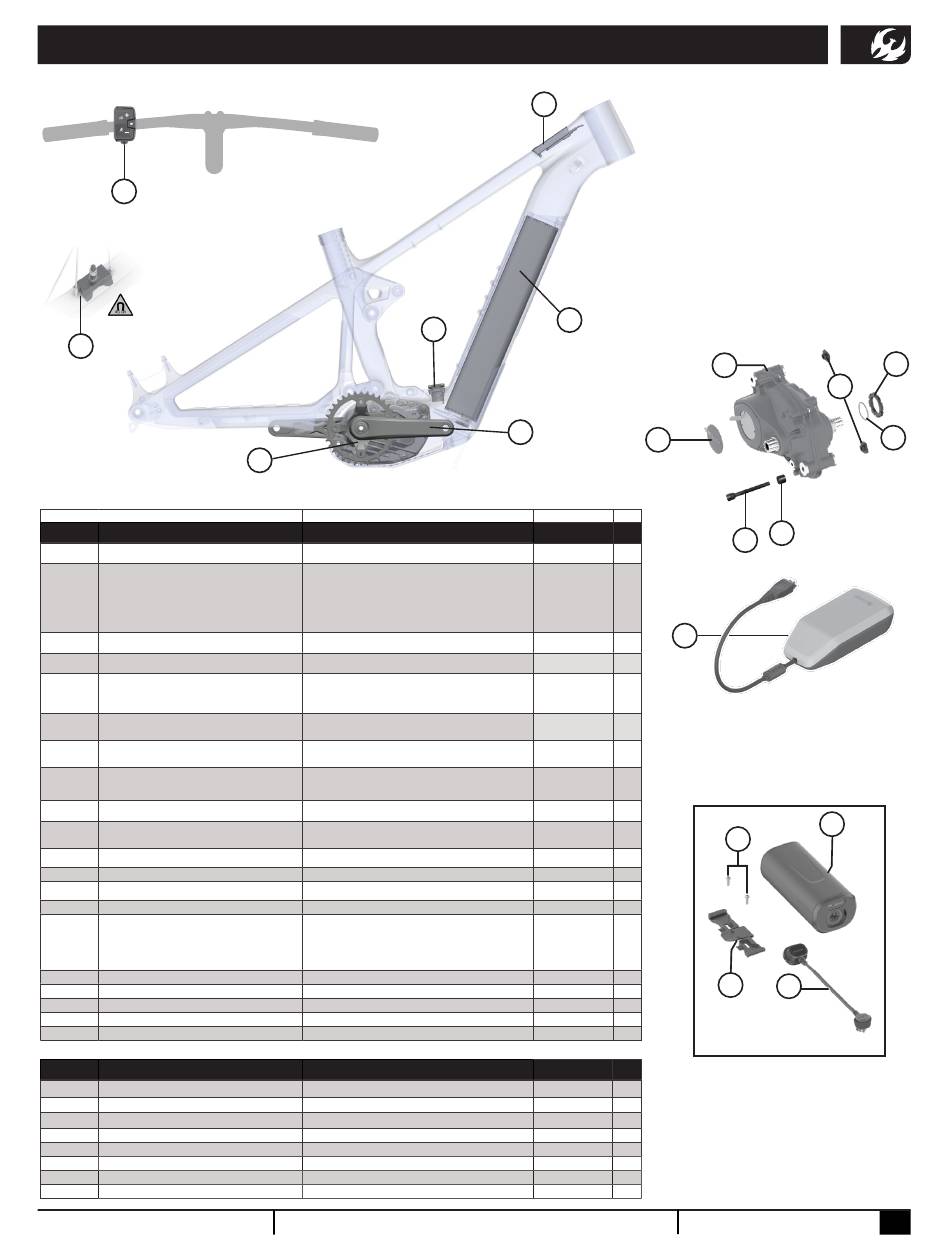

BOSCH ANTRIEBSSYSTEM SCHAUBILD

A
C
Pa r t s & c o m p o n e n t s
Buchstabe komponente
Mini Remote
A
Kiox 400C Display (pro & Team)
System Controller (Ride)
B 1000mm HMI cable
Adaptor for BRC3100 (Ride)
Screw for adaptor (Ride)
Rim Magnet/ sleeve (Speed Sensor)
C
D Spider & Chainring 104BCD 56.5 CL (All Builds)
Crank Arms (Ride Builds)
E
Crank Arms (Pro Builds)
Crank Arms (Team Builds)
Charging Socket & Cable 100mm
F
CHARGING SOCKET O-RING 24X2
PowerTube 800 Battery (US, CAN, JP, KOR)
G
POWERTube 800 Battery (EU28, CH, NO, AUS, NZ)
Performance line Cx drive unit
H
Performance Line CX-R Drive Unit
i Drive unit mounting nuts (m8x1)
Performance line cx drive unit logo bezel
j
Performance Line cx-R Drive Unit Logo Bezel
k drive unit lockring
l o-ring for lockring
M Rear Drive Unit Screw
N Socket for Rear Drive unit Screw
Battery Charger 4A110V/Cable (US)
Battery Charger 4A 230V/Cable(EU)
O
Battery Charger 4A 230V/Cable(AUS)
Battery Charger 4A 230V/Cable(UK)
- Powermore 250 Kits (Available from Pivot)
P M5x8 Bracket Fastening Screws
Q PowerMore 250 Battery (NA/EU)
R bracket for powermore
S Powermore cable 100mm/150mm (s-m 150mm/L-XL 100mm) EB12.120.035 / EB12.120.036
Buchstabe komponente
- (2 PLUG IN LOCATION FOR BATTERY CABLE)
battery adapter 2
- battery bracket for battery connector
- battery bracket w/o battery connector
- BATTERY bracket mounting screws
- BATTERY CABLE 350MM
- FP-BLT-M8*94-BLK-V1-R1
- Bosch BDU38 Washer
- Bosch BDU38 Narrow Spacer
pivotcycles.com
F
D
teile-nummer
EB13.100.01E
EB13.100.00z
EB13.100.000
EB12.120.007
EB13.200.0AE
EB13.200.0AF
EB11.200.015/ EB11.200.02S
ES-BSC38-104-565/ 00.6218.034.003
CK-747/IS
EC-2ISIS-160AM
EC-2ISIS-160CM
EB12.120.048
EB12.120.019
EB12.100.051
EB12.100.04Z
EB11.100.00E
EB11.100.01D
EB11.200.03C
EB11.200.0KD
EB11.200.12T
EB11.200.0JH
1270.016.119
EB11.200.12G
EB11.200.12F
EB12.110.000/ 1270.020.343
EB12.110.001/ 1270.020.330
EB12.110.001/ 1270.020.344
EB12.110.001/ 1270.020.331
Bosch Range Extender 100MM / Bosch Range extender 150mm
FP-SCW-BTN-FLG-M5*0.80*8MM
B12.100.02T/ EB12.100.02S
eb12.110.01a
teile-nummer
EB12.100.015
EB12.100.03s
EB12.100.03t
EB12.100.03u
EB12.120.00S
Bosch BDU38 Bolt M8x94 Front Mounting Screw
FP-WSH-8I*21O*1.5W-BLK-V1-R1
FP-SPC-BDU38-NDS-NRRW-V1-R1
