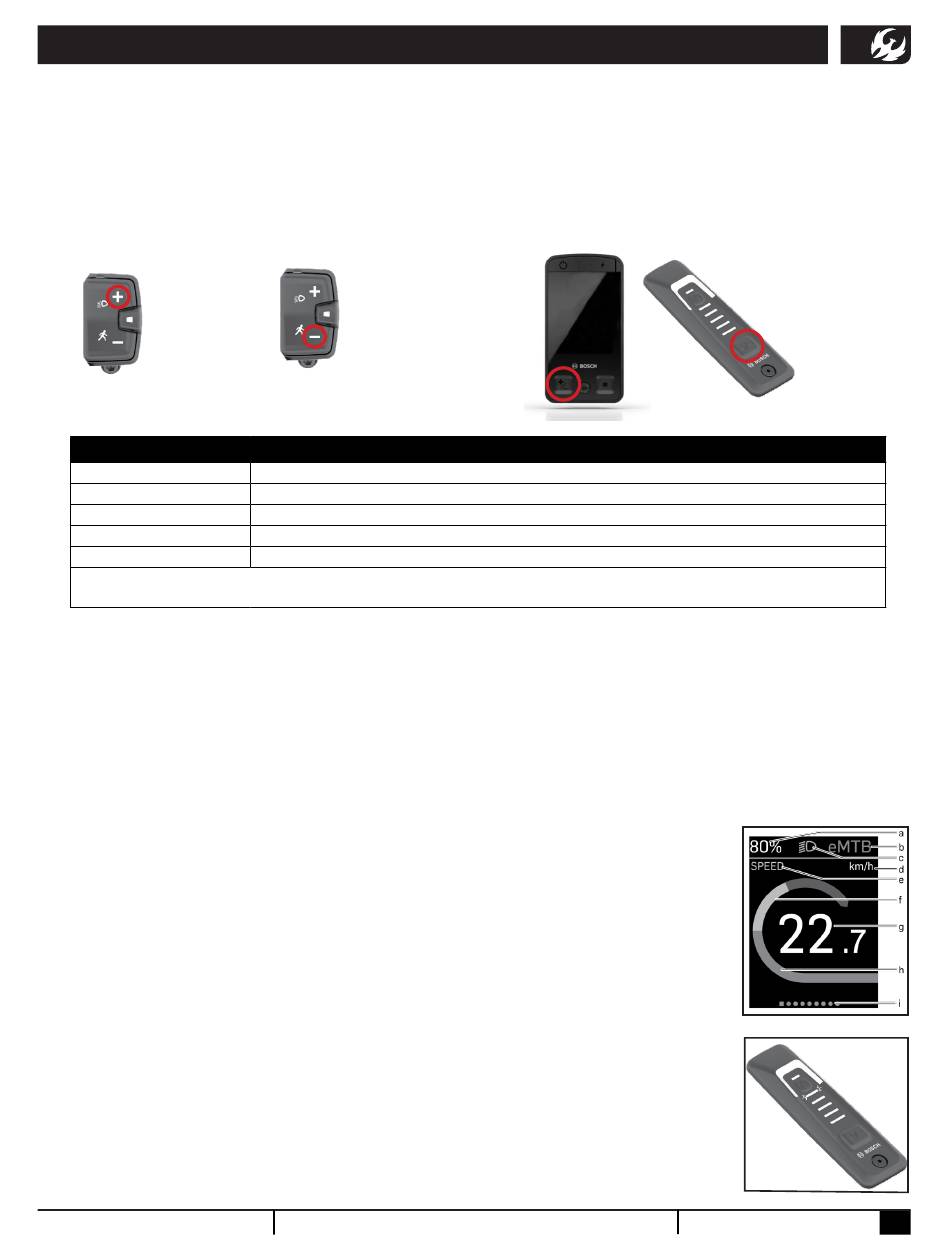

KIOX 400C, SYSTEM CONTROLLER & MINI REMOTE FUNCTION
Adjusting the Level of Assistance
• The assist level can be selected with the Mini Remote (1) the Kiox 400C (2) or with the System Controller (3).
• The assistance level can be changed at any time, even while cycling, and is displayed in color on the Display Screen (13)
or the Riding mode LED (18). See the table below for assist modes, LED color, and description.
Mini Remote
Briefly press (< 1 s) the
+ button (5) to increase
assistance.
ASSIST MODE COLOR
WHITE/OFF
GREEN
BLUE
PURPLE
RED
*Assist levels can be selected or customized in the Bosch eBike Flow App. The LED colors stay the same even if you change modes. Green
will always be the lowest assist level and Red will always be the highest.

Race Mode

• Select builds with the CX-R Drive Unit have the addition of Race Mode to the options for assist levels. Race Mode features
maximum assist with extended boost above any of the other available modes. It is recommended to become comfortable
using the other assist modes first before using Race Mode on the trail.

Walk Assistance

• The Shuttle LT also features walk assist. To start walk assistance, press the - button (7) and keep it pressed. Walk assist
is indicated on the Display Screen (13) or the battery charge indicator (16). Releasing the - button (7) pauses walk mode.
Kiox 400C Display Screen
• The image to the right represents the standard start screen display items. (a):State of charge
(b): Riding mode (c): Bicycle lights (d): unit of speed (e): indicator name (f): your performance (g):
Speed (h): drive power (i): Navigation bar *Improvements and added functionality are regularly
introduced through software updates. Therefore, the displays and functions shown here may
differ from what is actually displayed.
• Using the settings menu and the Bosch eBike Flow App you can customize your display
screens, units, and settings. For more information on this visit www.bosch-ebike.com.
System Controller Battery Charge Indicator
• When the charger is connected to the charging port the current battery charge level will be
indicated with the LED bar flashing.
• On the display, each ice-blue bar represents 20% capacity and each white bar represents 10%
capacity. The top bar shows the maximum capacity. Example: Four ice-blue bars and one white
bar are displayed. The state of charge is between 81% and 90%.
• If the capacity is low, both the lower bars change color. When the bottom two LEDs are orange
there is 30-21%.
• If the bottom LED is the only one illuminated orange, the capacity is 20-11%.
• If the bottom LED is red, the capacity is 10% to reserve. And when flashing red it is between
reserve and empty.
pivotcycles.com
Briefly press (< 1 s) the
- button (7) to decrease
assistance.
Motor support is switched off. The bike can be pedaled as a normal bike.
Effective support with maximum efficiency, for maximum range.
Steady support, long range for touring.
Optimal support whatever the terrain, improved dynamics and top performance.
Maximum support even at a high cadence, for sport cycling.
info@pivotcycles.com
Kiox 400C & System Controller
Briefly press (< 1 s) the mode button (15) to increase assistance.
Press the mode button (15) for longer than 1 s to decrease the
assistance.
Kiox 400C
ASSIST DESCRIPTION
1.877.857.4868
System Controller
