INTERNAL BATTERY REMOVAL & INSTALLATION

Battery Removal

The battery may need to be removed to swap batteries or to charge the battery if there is no power supply
near the bike.
NOTE: If the bike is sitting level on its wheels the battery will touch the ground before it is removed from
the frame. Using a stand to secure the frame upside down is recommended.

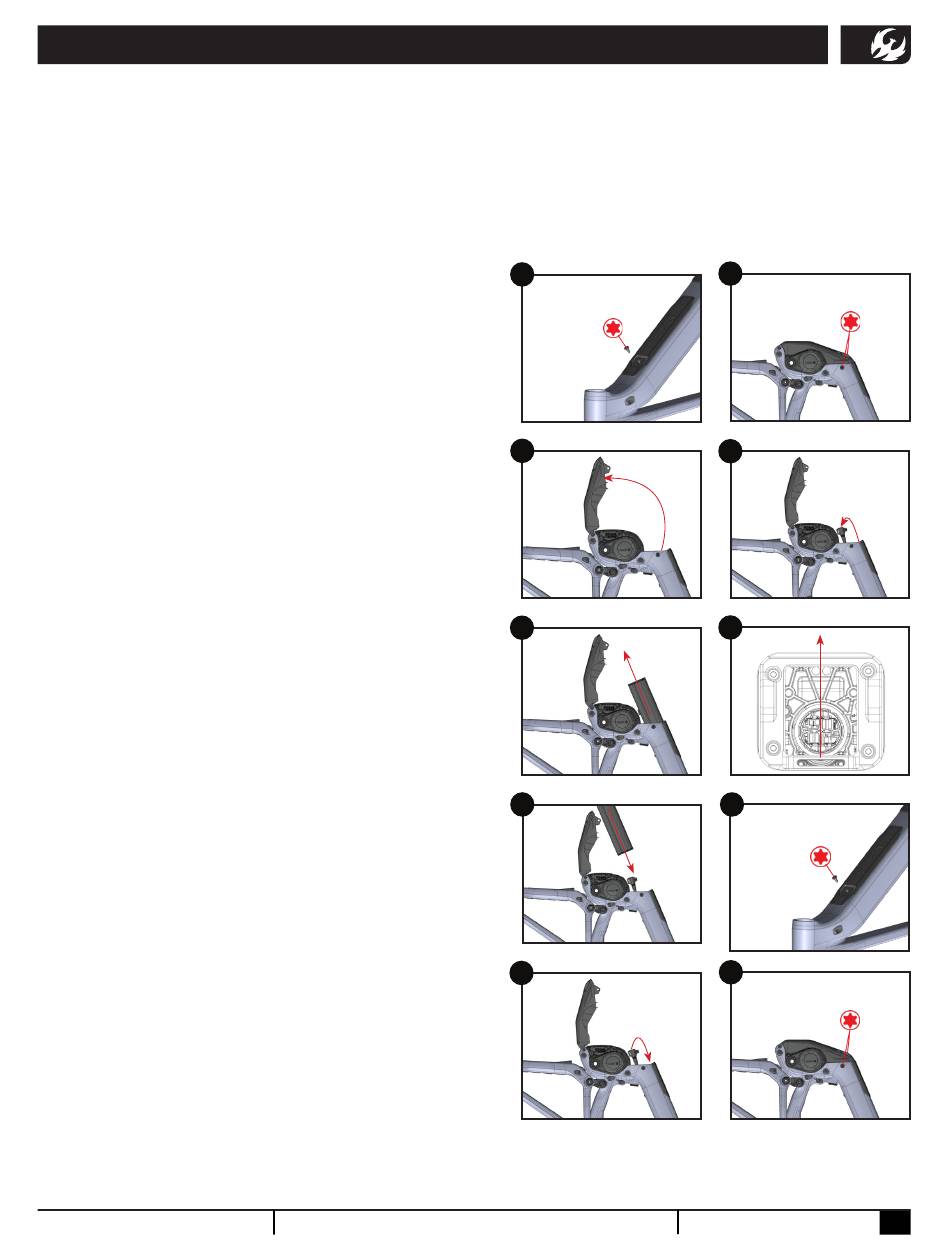

1. Using a T-25 wrench, remove the front battery fixing
bolt. (fig.1)
2. Remove the front two bolts securing the skid plate to
the frame using a T-25 wrench. (fig. 2)
3. Rotate the cover toward the rear of the bike. (fig. 3) If
doing this with the bike upright be careful to support
the battery with one hand as you open the skid plate.
4. Carefully remove the power cord from the battery.
(fig. 4)
5. Use both hands to support the battery and gently
guide it out of the frame using the battery strap to
pull. (fig. 5)
If you are not using a stand to hold the bike upside down
or to keep the bike off the ground you many need to tip the
bike to the non-drive side or lift it up to remove the battery
completely from the frame.

Battery Installation

To install the battery, reverse the removal procedure from
above.
NOTE: Installing the battery can be easier with the bike
upside-down. Using a stand to secure the bike upside-
down is recommended.
1. Check the orientation of the battery before installing
the battery. (fig. 6)
2. Apply grease to the threads of the fixing plate bolt and
skid plate bolts.
3. Carefully route the battery back into the downtube
using both hands. (fig. 7)
4. Apply pressure on the battery to fully seat the battery
and install the front fixing plate bolt. (fig. 8)
5. Plug the power cord back into the battery. (fig. 9)
6. Close the skid plate. (fig. 10)
7. Re-install the skid plate bolts and torque the front
mounting bolt and skid plate bolts to 8 Nm.
